This guide breaks down how these systems work, what makes them different from other AS/RS options, where they perform best, and how to decide if one fits your operation. Whether you're running a cold storage facility or a high-SKU distribution center, you'll find the practical details here.
RackUSA has manufactured storage systems since 1972, with facilities across the US and Mexico. Among its dynamic storage offerings is the Matador APS, a pallet shuttle system available in both 2D and 4D configurations.
Key Takeaways
- 4-way shuttles move forward, backward, and sideways — 2-way systems stay locked in a single lane
- Multi-directional movement maximizes storage density while cutting forklift dependency and improving safety
- Best fit: high-volume, multi-SKU warehouses, cold storage, and operations that need scalable automation
- Choose based on your space, inventory mix, throughput targets, and budget

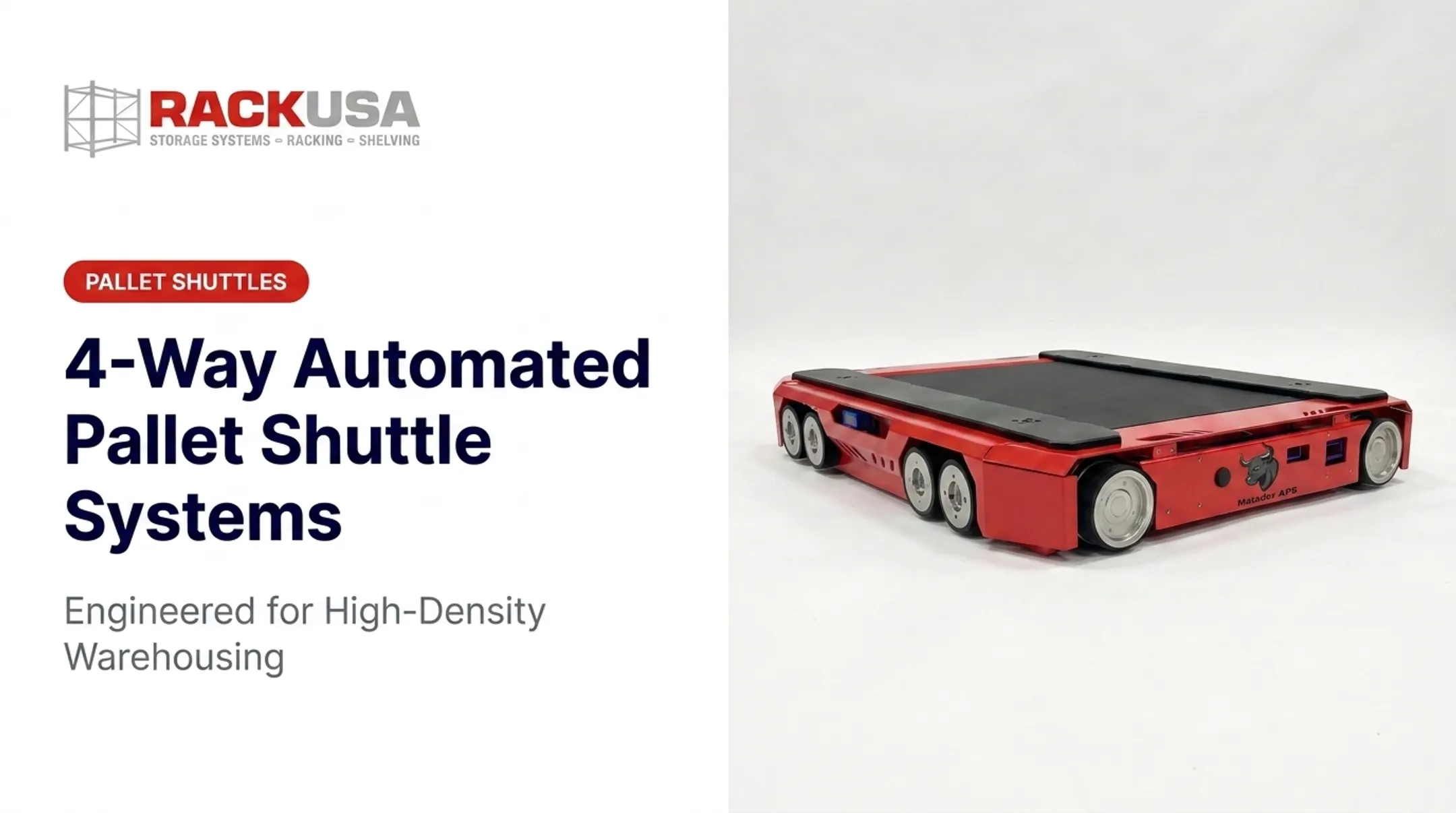

What Is a 4-Way Automated Pallet Shuttle System?
A 4-way pallet shuttle is a robotic vehicle that operates inside high-density racking. It moves longitudinally and laterally on its own, and integrated elevators shift it between levels. Unlike systems confined to one lane or axis, it navigates the full rack structure to deposit and retrieve pallets.
According to Mecalux, this multi-directional mobility eliminates the need for forklifts or transfer bridges entering the rack, so storage and retrieval stay automated inside the rack.

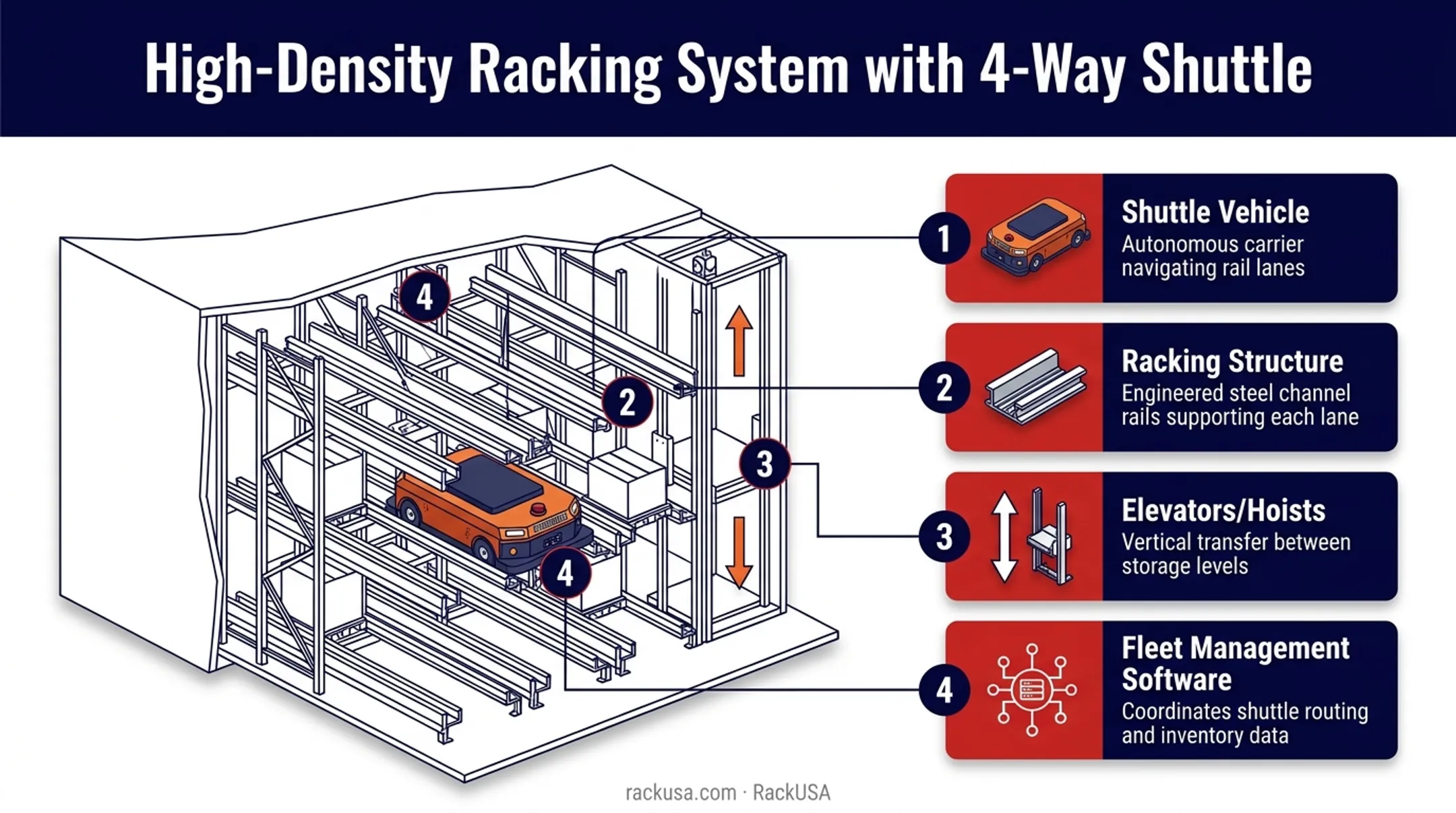

Core components include:
- Shuttle vehicle — the electric robot handling pallet deposit and retrieval
- Racking structure — engineered channels designed for shuttle compatibility
- Elevators/hoists — move shuttles between storage levels
- Fleet management software — coordinates routing, task assignment, and charging
How It Differs From Other Shuttle Types
Two-way semi-automated shuttles stay within a single lane, so a forklift or transfer car must move them to another lane. Mother-child ASRS units also run forward and backward in one lane and need extra equipment or manual handling to change lanes, per Dematic.
A 4-way system changes lanes and levels on its own—that is the core difference.
RackUSA's Matador APS offers both setups: a 2D configuration for single-axis movement and a 4D configuration for full multi-directional operation, each supporting FIFO or LIFO inventory strategies.
How Does a 4-Way Pallet Shuttle System Work?
A 4-way pallet shuttle moves pallets along and across rack channels, changes levels by lift, and follows software-assigned tasks so multiple units can run in the same system.

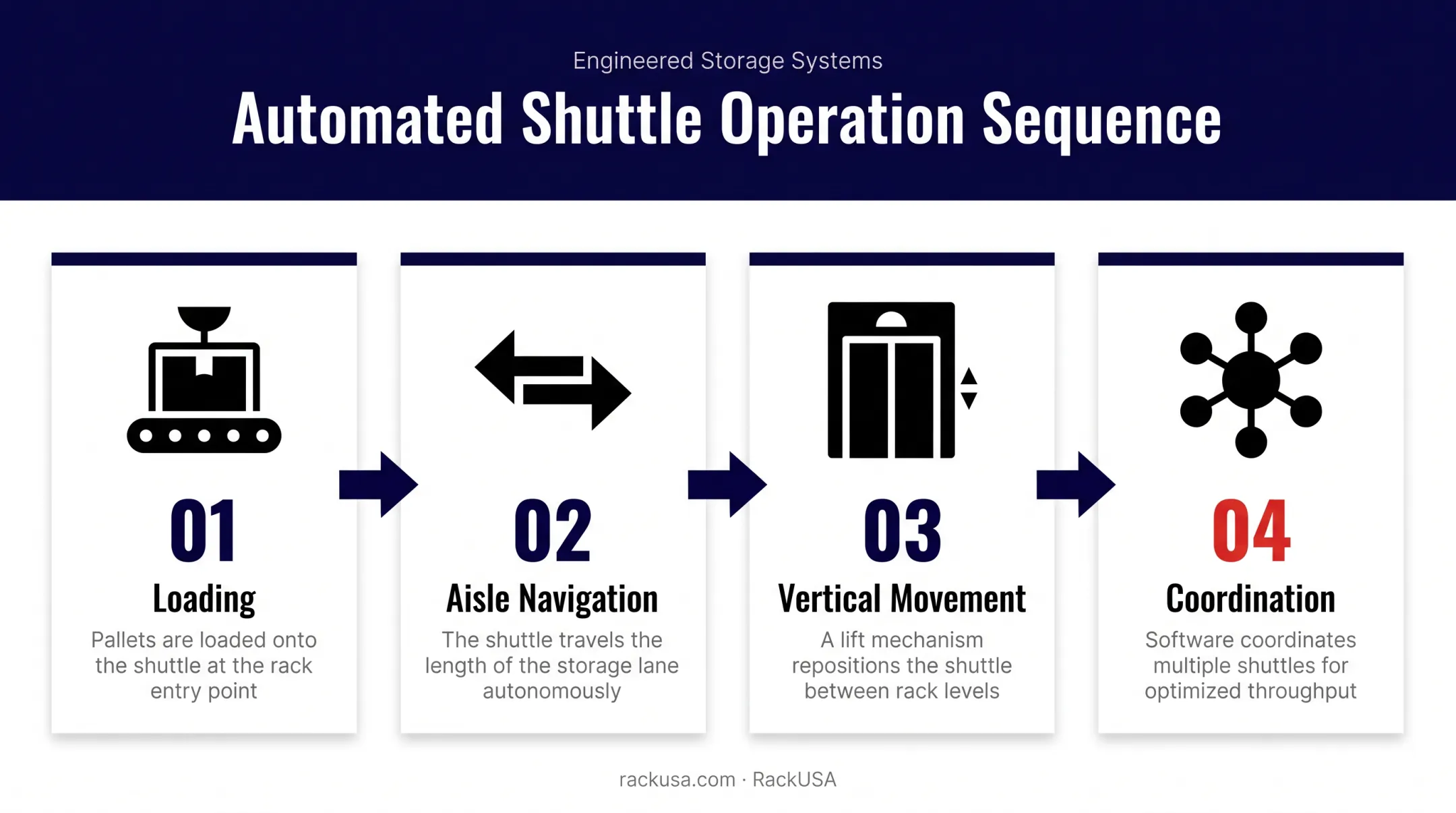

Step-by-Step Operation Process
- Loading: Conveyors or lifts deliver shuttles and pallets to designated storage channels
- Aisle navigation: The shuttle travels along and across lanes, switching channels without manual repositioning
- Vertical movement: Elevators or hoists shift the shuttle between rack levels
- Coordination: Fleet management software, integrated with WMS, WES, and WCS platforms, assigns tasks, manages traffic, and schedules recharging
Fleet software links those steps in real time. Interlake Mecalux notes that it prevents jams and shuttle collisions while directing multiple units at once.
Key Technical Features
Published specs vary by manufacturer, so treat these as model-specific rather than industry-wide:
| Feature | Typical Range (Published Models) |
|---|---|
| Load capacity | 1,000–1,500 kg (2,200–3,300 lb) per shuttle |
| Speed | Up to 2 m/s empty, ~0.8 m/s loaded |
| Positioning accuracy | ±3 mm (model-dependent) |
RackUSA documents a typical 1 to 2 metric tons per level capacity for its pallet shuttle applications, used as a planning benchmark rather than a fixed engineering ceiling.
Charging is opportunistic. Shuttles monitor their own energy levels and travel to charging stations during idle periods, so the system avoids dedicated downtime. RackUSA's Matador APS uses autonomous self-charging carts built for continuous 24/7 operation without operator intervention.

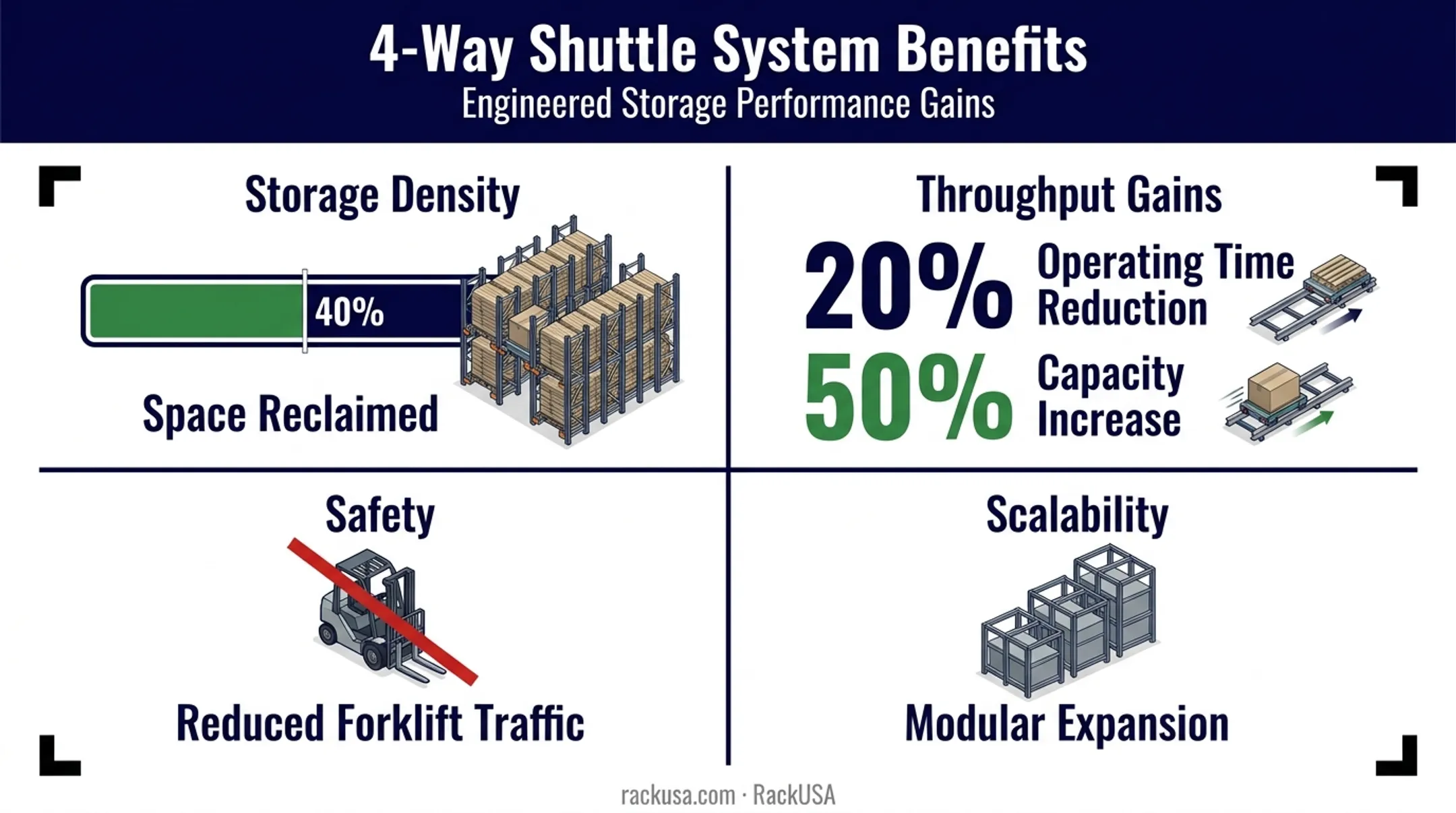

Key Benefits of 4-Way Automated Pallet Shuttle Systems
Four-way shuttles improve how a warehouse uses space, moves pallets, and controls operating cost. The gains show up in density, throughput, safety, and how easily you scale.
Storage density. Multi-directional movement uses both horizontal and vertical space more fully than static racking. Spacemaker reports that conventional drive-aisle racking can consume 40% or more of a facility's floor plan. A shuttle system reclaims that space for storage.
Throughput gains. A Mecalux case study at Clavo Food Factory documented a 20% reduction in operating times and a 50% increase in storage capacity without expanding the building footprint, using a 3D Automated Pallet Shuttle for over 5,800 pallets.
Safety. Fewer forklifts enter the racking structure, which cuts collision risk and congestion in high-bay lanes. Operators stay in designated work zones while shuttles handle deep-lane storage and retrieval.
Scalability. You can add shuttles, levels, or lifts incrementally. That modularity means you avoid overbuilding on day one and grow capacity as demand rises.
- Add shuttles to increase throughput without new construction
- Expand levels or aisles as inventory grows
- Reroute tasks automatically if one shuttle goes offline
Long-term ROI. Payback drivers stay consistent across facilities:
- Labor savings from reduced forklift dependency
- Lower product damage from automated handling
- More storage capacity per square foot
Best Applications and Industries for 4-Way Pallet Shuttles
Four-way pallet shuttles fit best where density, retrieval speed, and inventory control matter most.
Cold storage and frozen warehouses. Shuttle durability in sub-zero conditions makes this a natural fit. Manufacturer specs list operating ranges as low as -25°C (-13°F), and cold-chain operators benefit from reduced cooled volume since shuttles work efficiently in tighter, denser layouts.
Food & beverage and pharmaceutical facilities. These sectors need fast, accurate retrieval alongside strict inventory rotation. FIFO and LIFO capability supports batch tracking and expiry management.
Space-constrained facilities. Low ceiling heights or limited floor space don't have to mean limited storage. Dense automated racking recovers capacity that traditional aisles would otherwise consume.
Other strong fits include:
- High-volume distribution centers with demand peaks and extended shifts
- Multi-SKU operations needing flexible retrieval sequencing
- Facilities running continuous or near-continuous operations
RackUSA's engineering team evaluates facility layout, load requirements per level, warehouse clear height, and throughput needs before recommending a shuttle-compatible configuration, including whether a 2D or 4D Matador APS setup fits better than an alternative dynamic storage system.

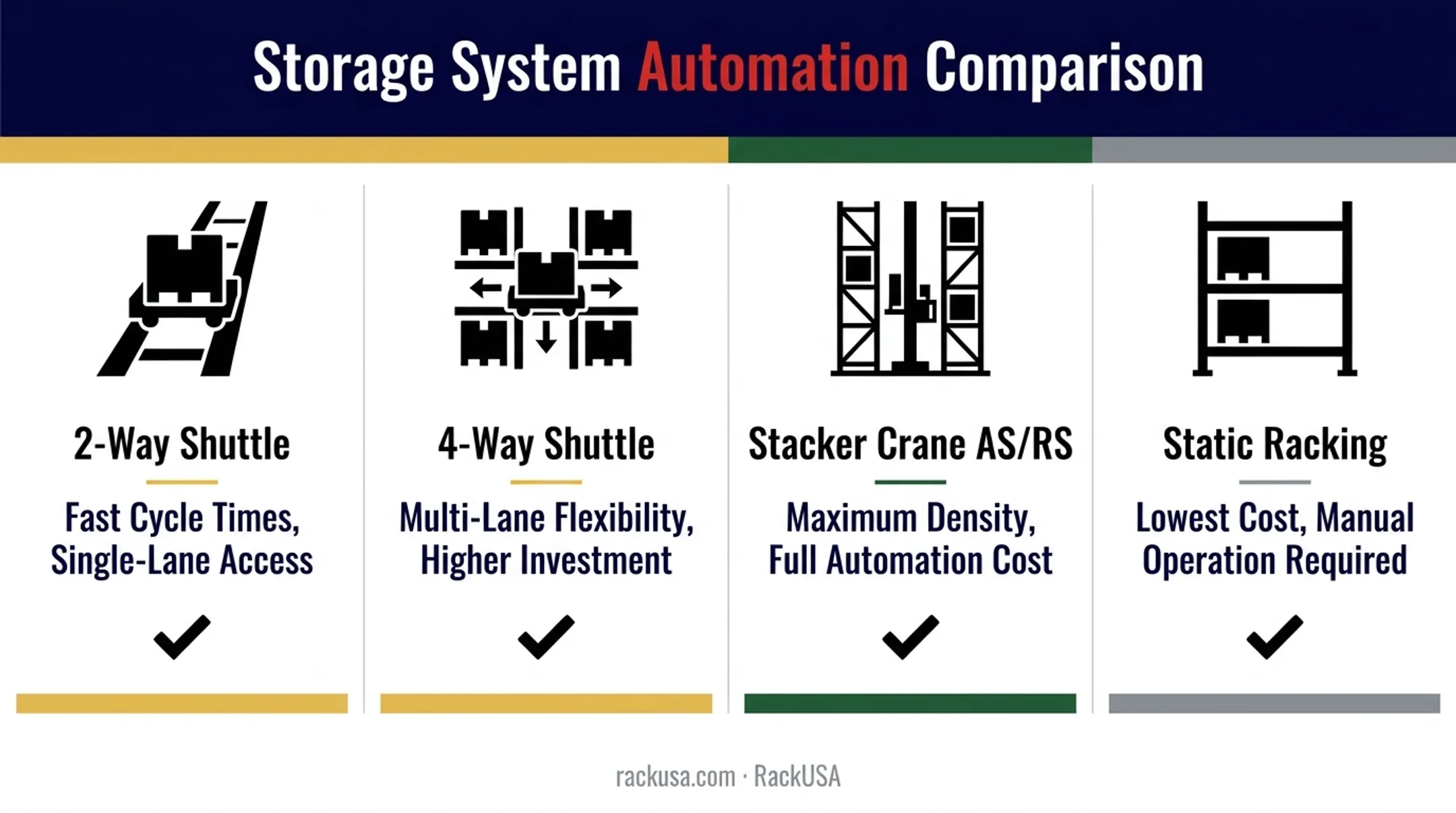

4-Way Shuttles vs. Other Storage Systems
The right system depends on automation needs, density goals, and how much flexibility you want as volume grows.
| System | Automation Level | Key Tradeoff |
|---|---|---|
| 2-way shuttle | Semi-automated | Lower cost, but confined to a single lane; needs equipment to relocate |
| 4-way shuttle | Fully automated | Higher upfront investment, maximum flexibility and density |
| Stacker crane AS/RS | Fully automated | Fixed aisle, single point of failure |
| Static racking (selective/drive-in) | Manual | Most cost-effective at lower density needs |
Stacker cranes run on fixed rails in dedicated aisles, handling one or two pallets at a time. According to INFORM, if a crane fails, that entire aisle can become inaccessible until repaired.
A 4-way shuttle system lets other units cover for a failed shuttle, so there is no single point of failure.
Stacker-crane systems typically carry higher entry costs per aisle due to precision rail installation and structural engineering demands. Shuttle systems let you add capacity incrementally instead.
Traditional static racking still wins on simplicity and cost for facilities that don't need extreme density — think lower-turnover inventory or smaller operations where automation investment doesn't pencil out yet.
How to Choose the Right Pallet Shuttle System
Before committing, weigh these factors:
- Available space and racking layout: clear height, aisle configuration, and existing structure compatibility
- Inventory type and SKU count: high-SKU operations may favor 4-way flexibility over single-lane 2-way systems
- Throughput and order-picking demands: extended shifts and demand peaks push toward fully automated configurations
- Budget and scalability goals: can the system grow with you, or are you locked into a fixed footprint?
MHI's ASRS Roadmap, launched in 2025, guides operators through this evaluation from initial discovery through building a business case, before engaging a supplier.
An experienced provider helps turn those criteria into a workable design. RackUSA bundles turnkey engineering, design, software integration, installation, testing, and commissioning with its Matador APS projects.
Each system is configured as 2-way or 4-way to match your facility's density and automation goals.
Frequently Asked Questions
What are the key differences between a 2-way pallet and a 4-way pallet?
The 2-way vs 4-way label usually describes shuttle movement, not the pallet itself. A 2-way shuttle stays in a single lane; a 4-way shuttle moves longitudinally, laterally, and vertically across the full rack structure.
What is a Pallet Shuttle system?
A pallet shuttle is an automated vehicle that moves pallets inside high-density racking lanes. It boosts storage density and cuts manual handling compared with forklift-only methods.
What is the difference between a Pallet Shuttle and a stacker crane?
Stacker cranes operate on fixed rails in dedicated aisles, handling one or two pallets at a time. Shuttles offer decentralized, multi-directional flexibility across multiple lanes and levels.
Can a 4-way pallet shuttle integrate with existing warehouse systems?
Yes. These systems integrate with WMS, WES, and WCS platforms so task assignment stays coordinated with your existing warehouse software.
Is a 4-way pallet shuttle suitable for all warehouse types?
It's ideal for high-density, high-throughput environments like cold storage or multi-SKU distribution centers. Smaller, low-volume operations may find static racking more cost-effective.
What is the typical ROI timeline for a 4-way shuttle system?
ROI depends on labor savings, storage density gains, and throughput improvements at your facility. Most operations see measurable returns within a few years, depending on volume and layout.
