Most of these problems trace back to one thing: planning rack layout too late in the process, or not planning it at all. This guide walks through the factors that actually drive a good layout, how to pick the right rack system, a practical step-by-step design process, standard dimensions to work from, and the compliance rules that protect your team and your investment.
Key Takeaways
- Layout decisions should start with process flow, building constraints, and product profiles, not rack catalogs
- Rack type (selective, drive-in, push-back, pallet flow) depends on SKU count, turnover, and density needs
- Aisle width and column spacing directly determine how much product actually fits
- OSHA and RMI/ANSI standards set the safety guardrails your layout must respect
- Bringing in an experienced rack manufacturer early avoids expensive redesigns later
Key Factors to Consider When Designing a Pallet Rack Layout
Process Flow and Facility Constraints
Rack orientation should follow your product's path, not the other way around. Map receiving, reserve storage, replenishment, picking, staging, and shipping before you place a single upright. Dock door placement often dictates which direction aisles should run. Fight that logic and you'll pay for it in extra travel time.

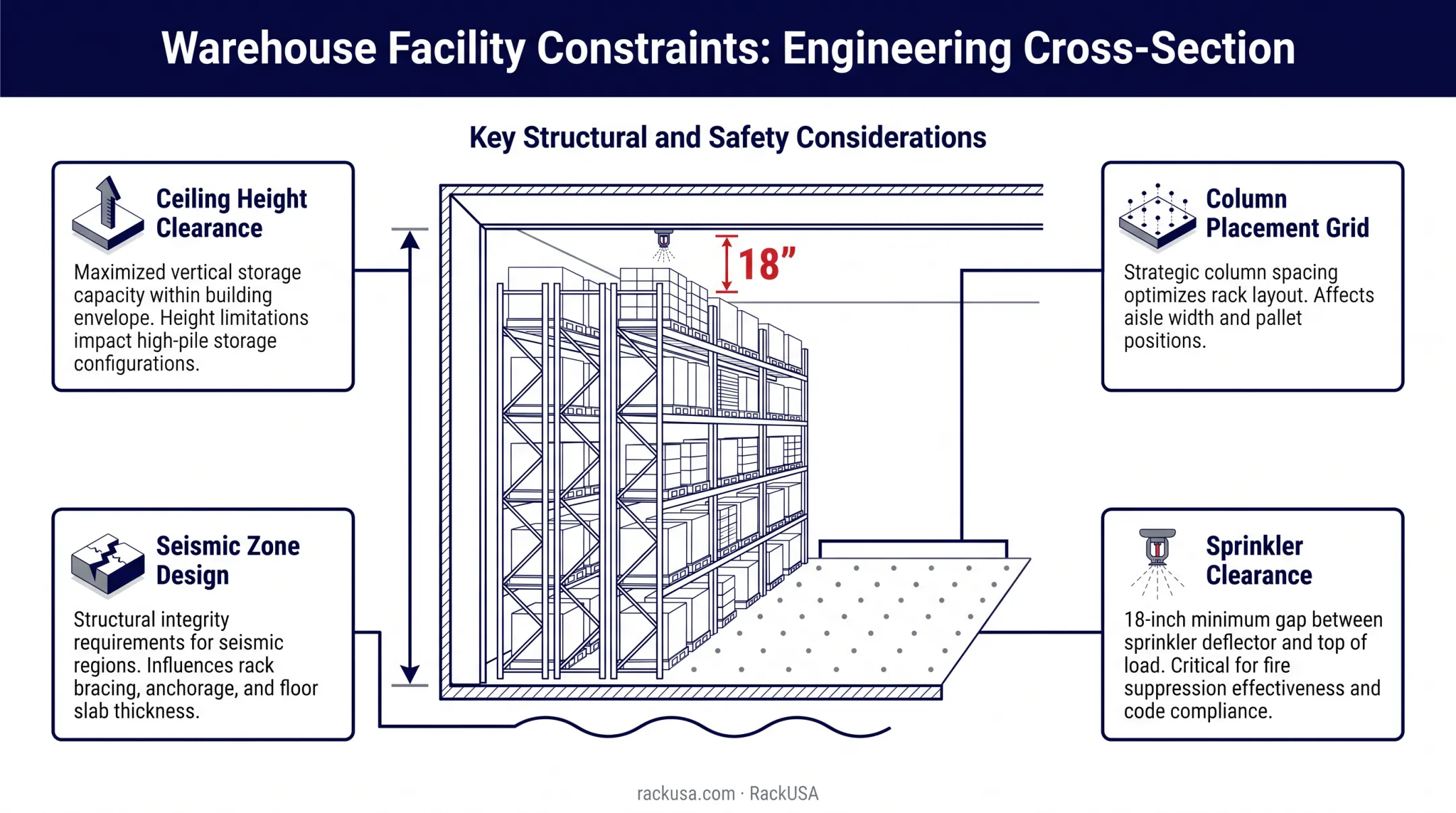

Facility characteristics narrow your options fast:
- Ceiling height — RMI notes selective racking often fits 20 feet clear or less; 40 feet-plus can justify denser systems
- Column placement — fixed columns constrain bay sizing and may force asymmetric layouts
- Seismic zone — affects anchorage, brace geometry, and total load calculations
- Sprinkler clearance — OSHA requires a minimum 18-inch vertical clearance between sprinklers and stored material, which caps your top beam height
Product and Equipment Compatibility
Load dimensions, weight, and turnover frequency determine rack type and spacing. Cold storage or date-sensitive inventory usually points toward pallet-flow racking for automatic FIFO rotation. Handling equipment matters just as much. Forklift type, reach height, and turning radius set your minimum workable aisle width and beam heights.
Don't skip safety stock in your sizing math. A Gartner survey of 1,328 supply-chain professionals reported by Supply Chain Dive found 43% were already investing in safety stock, with another 11% planning to. If your layout doesn't budget for buffer inventory, you'll outgrow it fast.
Those constraints are easier to resolve when engineering is part of the rack package. RackUSA bundles facility layout design, structural load analysis, and seismic analysis into the structure from the start, factoring in your seismic zone, load per level, and forklift type before any component ships.

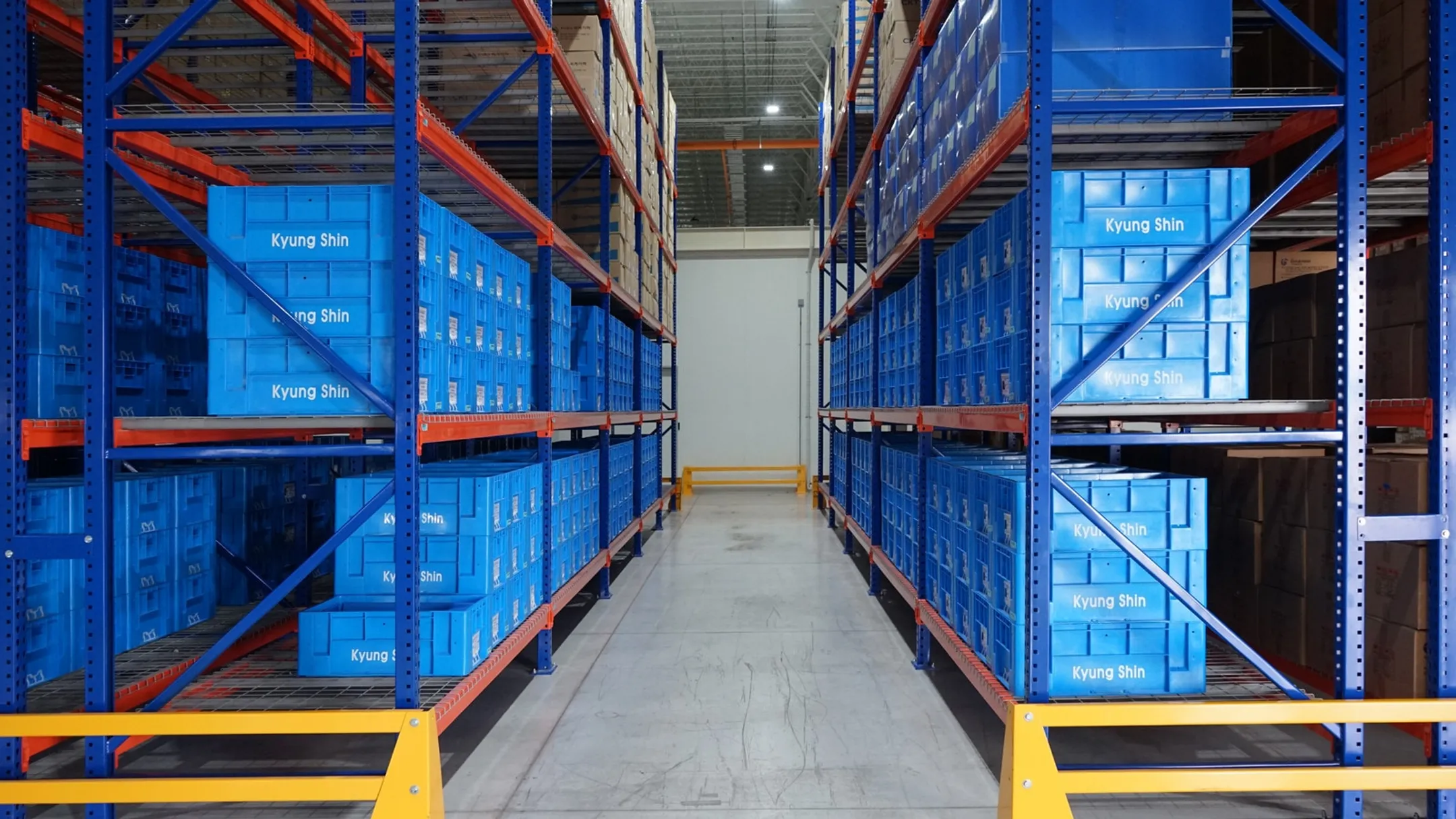

Choosing the Right Pallet Rack System for Your Layout

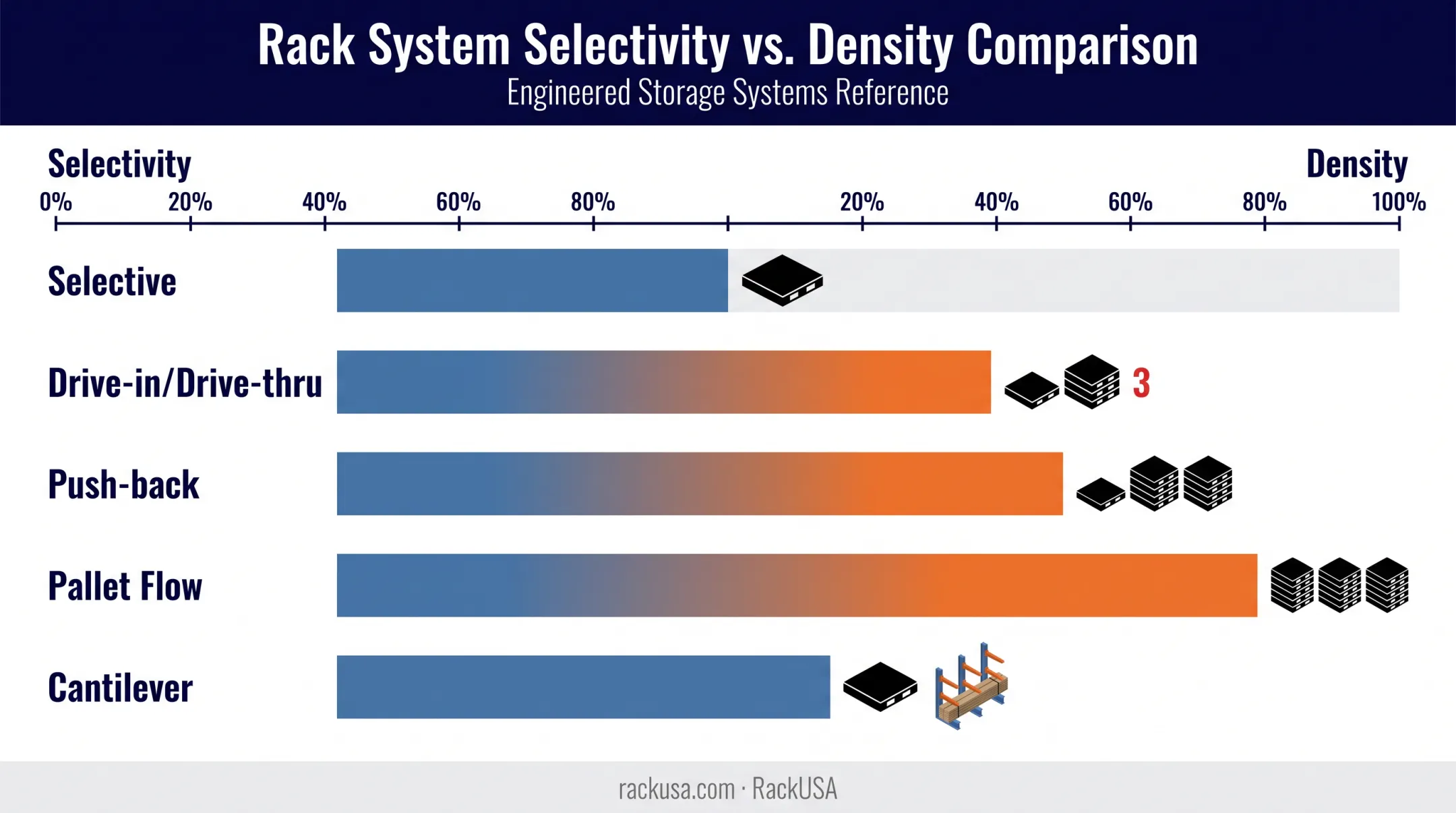

No single rack type wins on every metric. The right choice balances selectivity (how easily you reach every pallet) against density (how much product fits in the space).
| System | Best for | Trade-off |
|---|---|---|
| Selective | High-SKU counts, moderate turnover, FIFO needs | Lowest density of the group |
| Drive-in/drive-thru | Low-SKU, high-volume, homogeneous product | LIFO only; reduced selectivity |
| Push-back | Balancing density with some selectivity | LIFO; up to 6 pallets deep |
| Pallet flow | Fast-moving, date-controlled inventory | Requires disciplined lane management |
| Cantilever | Long or irregular loads (pipe, lumber, profiles) | Not suited to standard palletized goods |
According to Cisco-Eagle's comparison of storage styles, selective racking gives you access to every pallet position but stores fewer pallets per square foot than the alternatives. Drive-in trades that accessibility for density, storing pallets two, three, or more deep. Push-back lands between the two: more selective than drive-in, denser than selective.
When manual systems cannot hit both density and access targets, automation closes the gap. RackUSA's Matador APS, an automated pallet shuttle in 2D and 4D configurations, supports FIFO and LIFO retrieval and validates pallets with weighing and scanning in motion. It is a stronger fit than manual push-back or drive-in when labor cost and throughput, not just static storage, drive the layout decision.

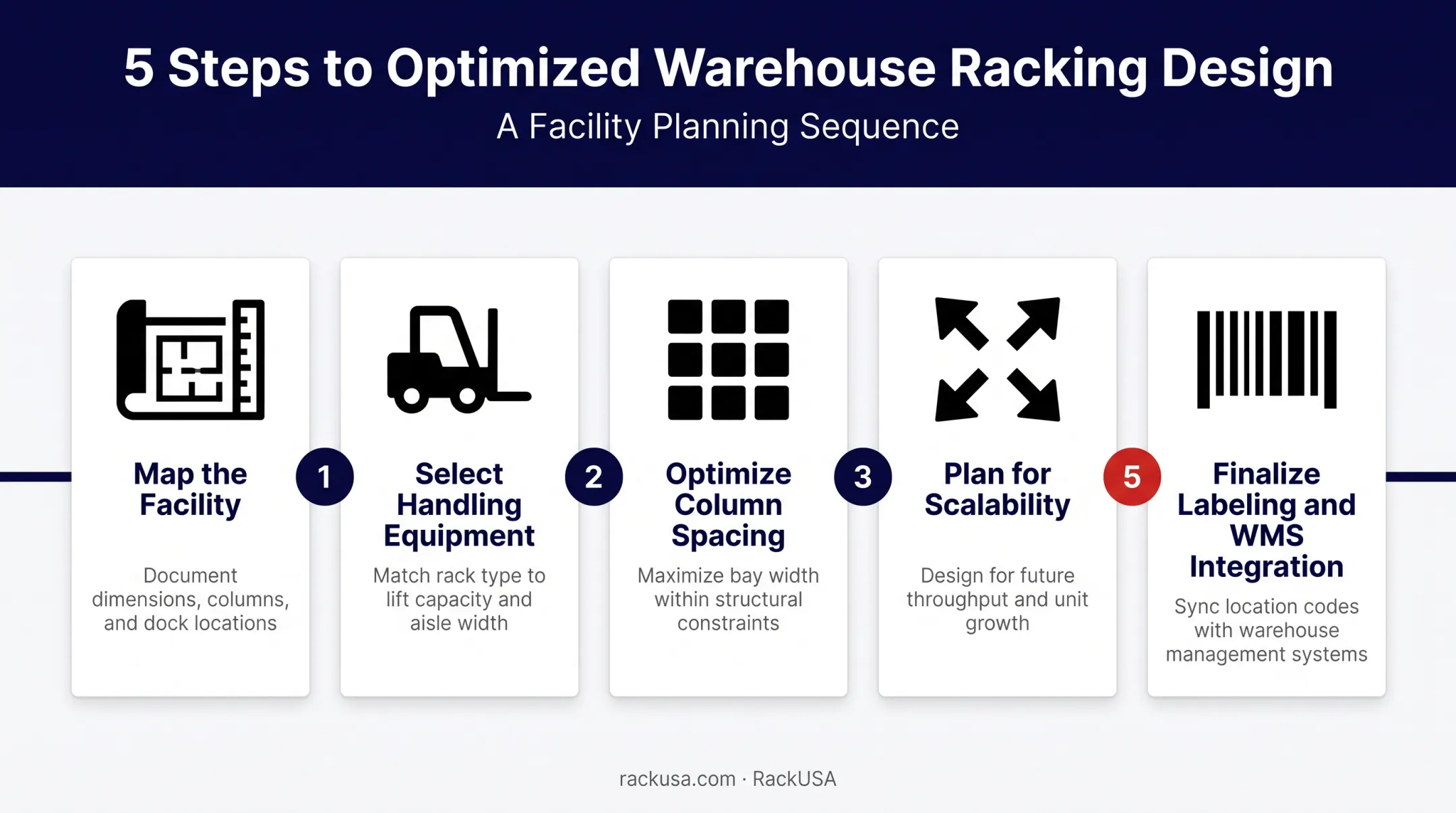

Step-by-Step Process for Designing an Efficient Layout
Work through these steps in order. Each one locks in a constraint the next step depends on.
- Map the facility first. Document columns, dock doors, support beams, sprinkler locations, and any fixed obstructions before placing rack on paper. Skipping this step is the number one cause of mid-project redesigns.
- Select your handling equipment before fixing aisle width. OSHA's 1910.176 standard does not set a numeric aisle width; it requires clear, maintained, marked aisles with enough equipment clearance. Your forklift model sets the real number—Raymond's published specs show roughly 12 feet for counterbalanced trucks, just over 8 feet for reach-fork trucks, and as little as 5.5 feet for swing-reach equipment.
- Optimize column spacing. In back-to-back selective racking, use flue space to hide columns within the rack footprint instead of losing floor space around them.
- Plan for scalability. Modular racking configurations let you add bays or convert selective sections to higher-density systems as SKU counts grow, without ripping out the whole layout.
- Finalize labeling and WMS integration. A layout is only as good as a worker's ability to navigate it. Location codes need to match your WMS logic exactly, or you'll create pick errors no amount of good engineering can fix.
When you set column spacing in step 3, do not underestimate flue space. RMI recommends longitudinal flue spacing of 6, 8, 12 inches or more depending on pallet overhang and fire-protection requirements, and NFPA 13 sets a 6-inch minimum in most standard configurations. Confirm this with your fire-protection design before finalizing bay counts.
Standard Pallet Rack Dimensions and Sizing Considerations
What are the standard dimensions of a warehouse pallet rack?
Most US layouts are built around the GMA pallet (40 x 48 inches) as the baseline unit for bay sizing. Common frame and beam conventions include:
- Beam lengths: 96, 108, 120, and 144 inches (48- and 168-inch options for specialty loads)
- Upright depth: 42 inches is a common product convention
- Always verify depth against your actual pallet and load overhang
Standard selective racks typically handle 1 to 3 tons per level, while heavy structural racks exceed that. These are general ranges, not guarantees. Actual capacity depends on beam length, upright height, and bracing.
Don't size a layout on floor space alone. Load capacity plaques and beam capacity ratings should drive your final dimension choices.

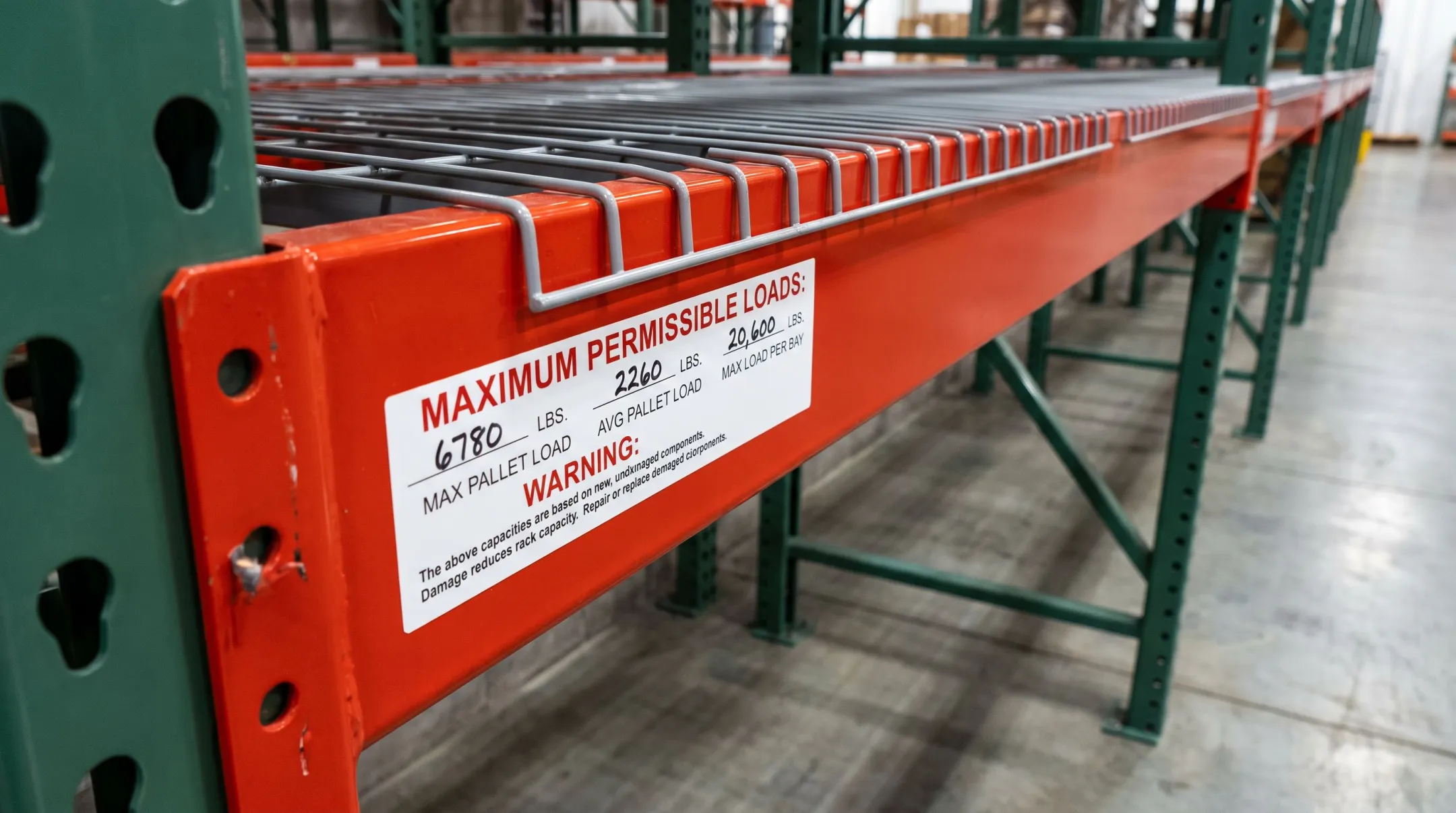

ANSI MH16.1 requires load plaques with a minimum area of 50 square inches, showing permissible loads per level and per bay. If you reconfigure a rack later, that plaque data becomes invalid until re-evaluated.
Safety and Compliance in Rack Layout Design
Safe rack layouts depend on clear aisles, stable loads, and design standards that go beyond the OSHA baseline.
What are the OSHA guidelines for warehouse pallet racking?
OSHA's 1910.176 standard requires clear, maintained, and appropriately marked aisles with sufficient clearance for mechanical handling equipment. Stored materials must be stable and secured against sliding or collapse. OSHA doesn't specify a universal aisle width or a fixed rack inspection interval. Those details come from industry standards.
RMI/ANSI MH16.1 covers that ground. It is the engineering standard most manufacturers design to for load capacity, seismic stability, and structural integrity. RackUSA racking carries R-Mark certification tied to RMI, with ANSI MH16.1-2023 compliance across product lines such as drive-in/drive-thru systems and industrial bulk shelving.

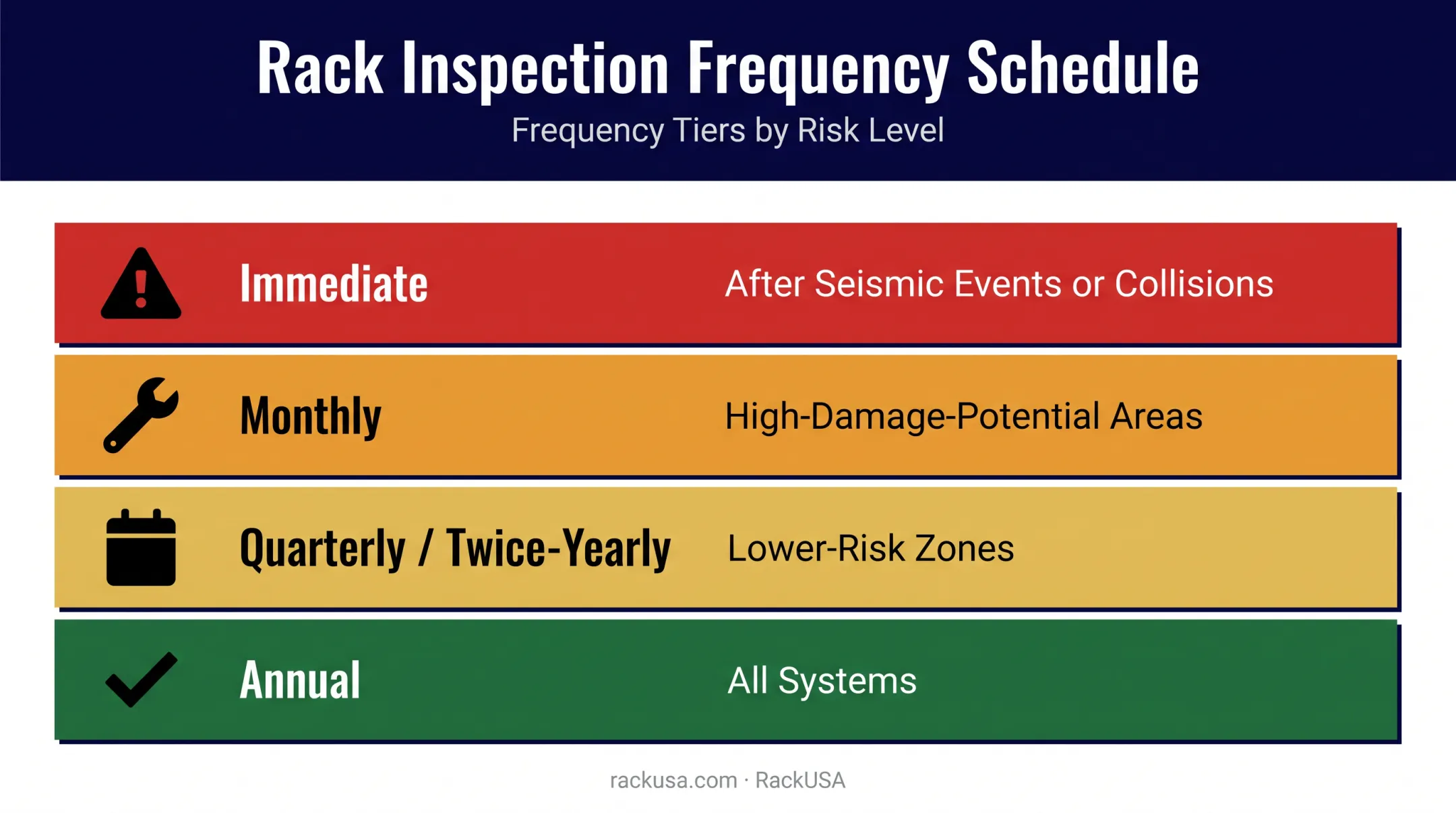

Inspection frequency isn't fixed by regulation, but RMI guidance recommends:
- At least annual inspection for all rack systems
- Immediate inspection after seismic events or forklift collisions
- Monthly checks for high-damage-potential areas
- Quarterly to twice-yearly checks for lower-risk zones, based on traffic and load
Ongoing inspection and preventive maintenance keep documentation current and catch damage before it becomes a collapse hazard. Technical support bundled with engineered rack systems helps teams stay ahead of wear, impact damage, and documentation gaps.
Frequently Asked Questions
What are the OSHA guidelines for warehouse pallet racking?
OSHA requires clear, maintained, and marked aisles with adequate clearance for handling equipment, plus stable storage that won't slide or collapse. It doesn't set a fixed aisle width or inspection schedule. Those come from RMI/ANSI guidance.
What are the standard dimensions of a warehouse pallet rack?
Most layouts use the 40 x 48-inch GMA pallet as the sizing baseline, with beam lengths commonly at 96, 108, 120, or 144 inches. Always verify against actual load dimensions and beam capacity ratings.
What are the different styles of warehouse pallet racking?
The main styles are selective, drive-in/drive-thru, push-back, pallet flow, and cantilever. Each balances selectivity against storage density differently, with selective offering the most access and drive-in the most density.
How much does warehouse pallet racking cost to design and install?
Cost varies significantly based on rack type, engineering complexity (seismic analysis, structural load calculations), and installation scope. Getting a project-specific quote from a manufacturer is the only reliable way to budget accurately.
How do I determine the right aisle width for my warehouse?
Start with your exact forklift model's turning radius and reach height, not a generic number. Counterbalanced trucks typically need around 12 feet, while swing-reach trucks can operate in aisles as narrow as 5.5 feet.
How often should pallet racking be inspected for safety?
There's no fixed regulatory interval, but RMI recommends at least annual inspections. Check high-traffic or high-damage areas more often, and inspect immediately after any collision or seismic event.
