That's the problem cantilever racking solves. It's a purpose-built system: arms extend from a central upright with no front posts blocking the load path, so you can store material of virtually any length and pull it out from either side without maneuvering around obstacles.
This article covers how cantilever systems work, the components involved, structural versus roll-form types, and the design principles that keep these systems safe under load — including why backspan sizing is one of the most important calculations your rack supplier will run.
Key Takeaways
- Cantilever arms extend from a central upright with no front posts, giving unlimited load length and open access
- Structural cantilever suits heavy-duty loads; roll-formed fits lighter, more frequently reconfigured setups
- Backspan-to-arm ratios prevent tip-over when sized through engineering calculations
- Sizing requires measuring load depth, height, length, and weight before you order components
- Professional engineering and installation reduce safety risk and costly rework
What Is a Cantilever System?
A cantilever system is fixed at one end and free at the other. Think of a diving board: anchored on one side, extending outward with nothing supporting the far end. That's different from pallet racking, which is "simply supported" — held up on both sides by beams and columns.
In racking terms, the Rack Manufacturers Institute defines cantilever rack as a system built for long, bulky, or irregular materials of almost any length, using freestanding columns with fixed, floor-anchored bases. Arms cantilever off those columns, and the load sits directly on the arms — no front support required.

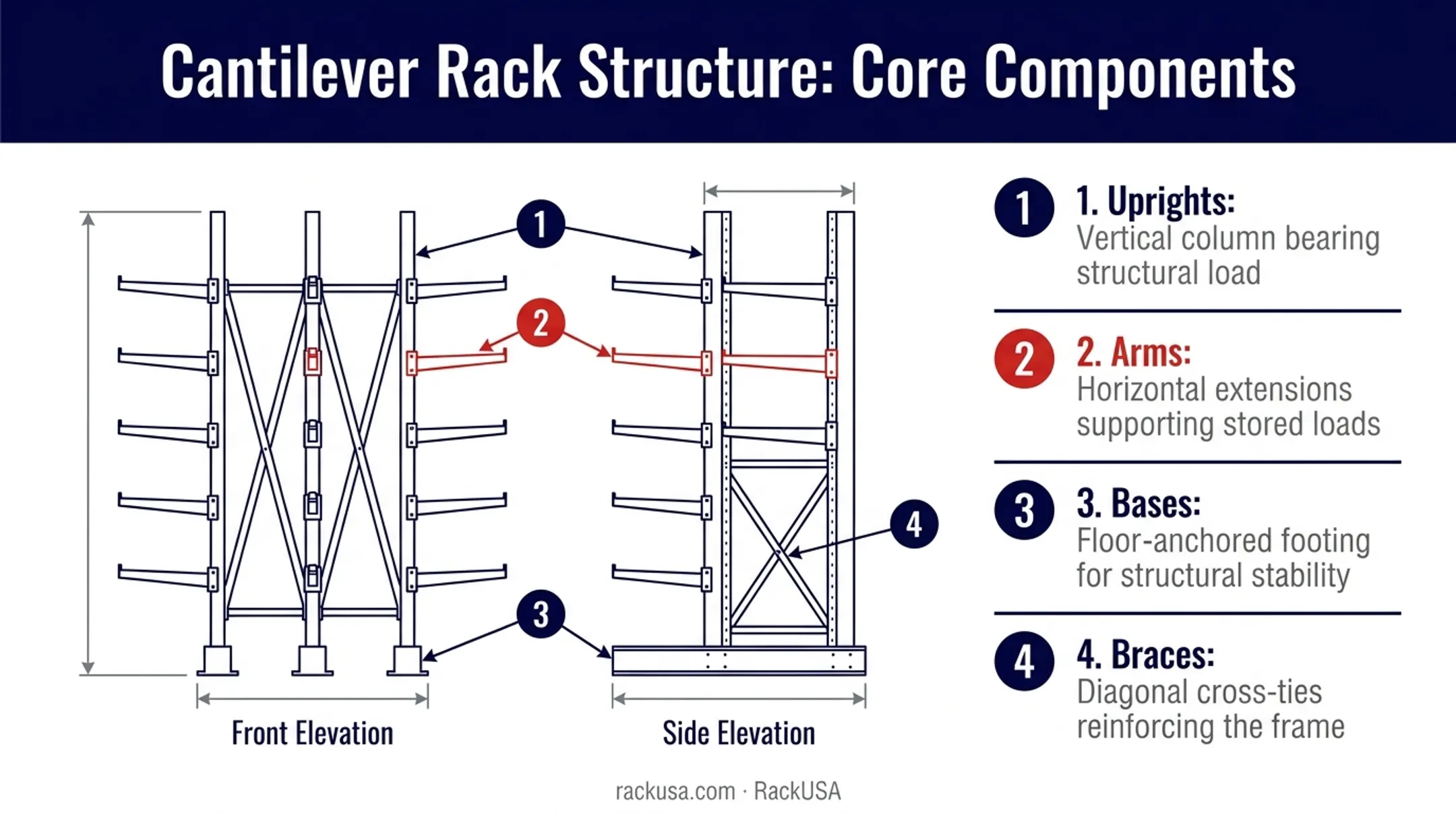

Core components include:
- Uprights: vertical steel columns that form the backbone
- Arms: horizontal or inclined members bolted to the uprights to carry the load
- Bases: floor-anchored footings that counterbalance the load and resist tipping
- Braces: horizontal and diagonal ties that stabilize the structure laterally

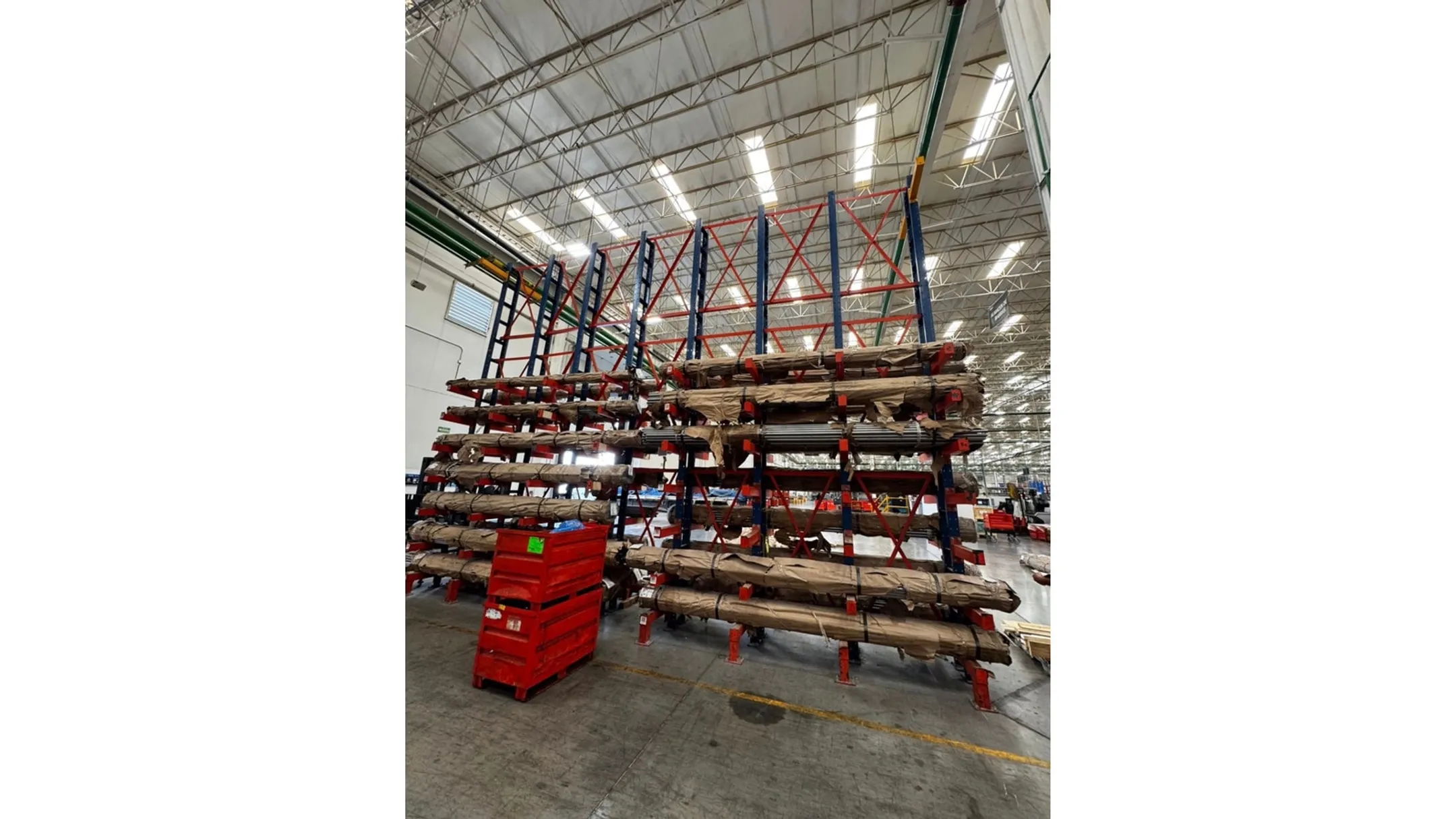

Real-Life Examples of Cantilever Systems

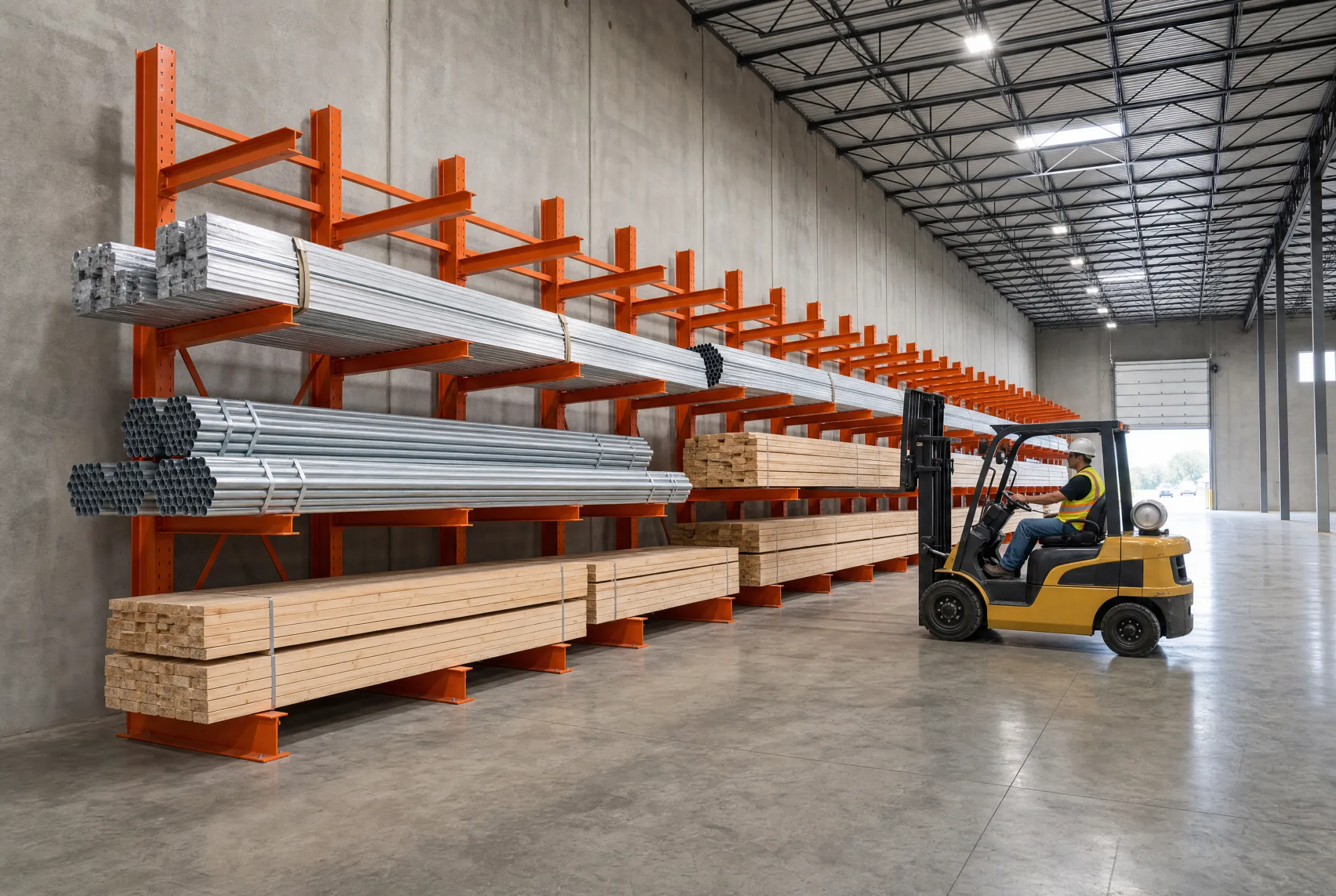

Cantilever racking shows up wherever long or awkward loads need open-front storage:
- Lumber yards — storing dimensional lumber, plywood stacks, and moldings
- Steel and pipe distributors — holding bar stock, tubing, and structural profiles
- Furniture and boat retailers — accommodating bulky, irregularly shaped finished goods
The same fixed-free physics shows up outside of warehouses too. Balconies, highway signage gantries, and cantilever bridges all use the identical structural principle — support at one end, load extending freely from the other.
The open-face design is the whole point. There's nothing at the front to block a forklift, and nothing limiting how long a piece of material can be. That combination of side-loading access and unrestricted length is what pallet rack can't match.
How Cantilever Racking Works: Core Components and Configuration
Arms and Adjustability
Arms are the workhorses of the system. They're typically adjustable in set increments along the upright, letting you reconfigure storage levels as your inventory changes. Two styles matter here:
- Straight arms — best for flat stock like lumber or sheet goods
- Inclined arms — angled to keep round stock (pipe, tubing) from rolling off, often paired with an end stop or safety pin
Uprights and Configuration
Upright columns come in various height ranges depending on your ceiling clearance and load requirements. You'll choose between:
- Single-sided — access from one side only, ideal against a wall
- Double-sided — storage on both sides of the same upright, better for floor-space efficiency
Bases and Bracing
The base anchors to the floor and counterbalances the cantilevered load. Base depth scales up as arm length or load weight increases.
Bracing connects uprights for lateral and diagonal stability. It's a critical safety component, but braces are not load-bearing. Never treat them as shelves.
Never add arms to the unsupported back side of a single-sided upright, even if mounting holes appear to accept them. That back side has no base support behind it, and loading it invites collapse.

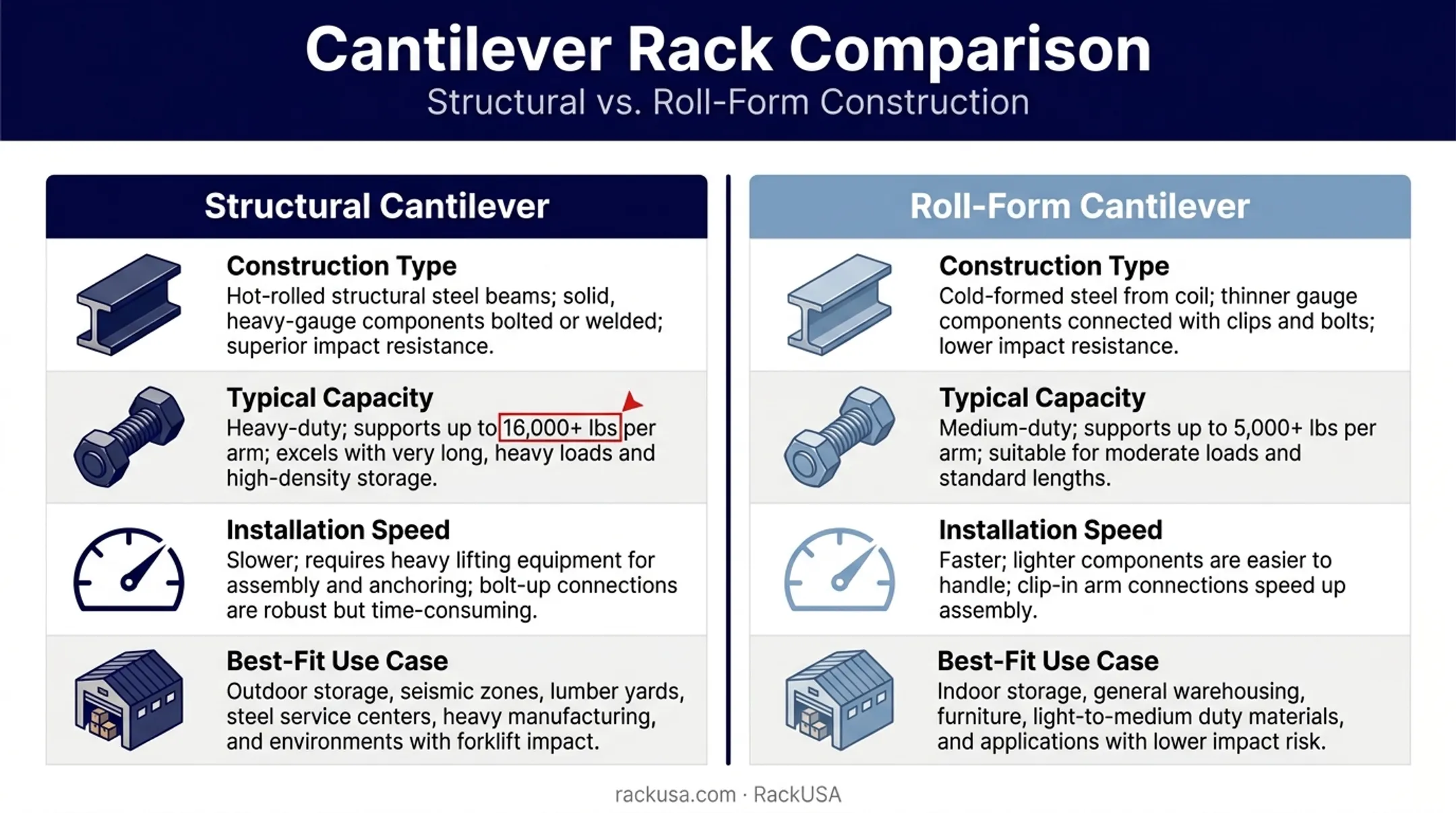

Types of Cantilever Racking: Structural vs. Roll-Form
Cantilever systems generally split into two construction types, both covered under the ANSI MH16.3 standard for industrial steel cantilevered storage racks.
Structural cantilever:
- Built from hot-rolled steel with bolted connections
- Higher capacity — typically starting above 1,500 lbs. per arm and scaling into several tons depending on arm length and configuration
- Better impact resistance, suited to harsher forklift environments
- Best fit for heavy industrial use: steel service centers, large lumber yards, high-traffic warehouses
Roll-form cantilever:
- Lighter-gauge steel with bolt-less or clip-style connections
- Faster to install and reconfigure
- Lower capacity ranges for moderate loads
- Best fit where layouts change often and duty is light-to-medium
| Factor | Structural | Roll-Form |
|---|---|---|
| Construction | Hot-rolled steel, bolted | Lighter gauge, clip/bolt-less |
| Typical capacity | 1,500 lbs.+ per arm | Lighter-duty ranges |
| Installation | Slower, more robust | Faster, easier reconfiguration |
| Best fit | Heavy industrial, high impact | Moderate loads, frequent changes |
At RackUSA, cantilever systems are built as heavy-duty steel structures with screwed column, arm, and bracing connections. Documented capacities run from roughly 1,100 lbs. up to several tons per arm, depending on configuration.
The right choice comes down to three questions:
- How heavy is the load?
- How often will you reconfigure?
- What's the budget?
Design Considerations: Backspan, the 1/3 Rule, and Load Capacity

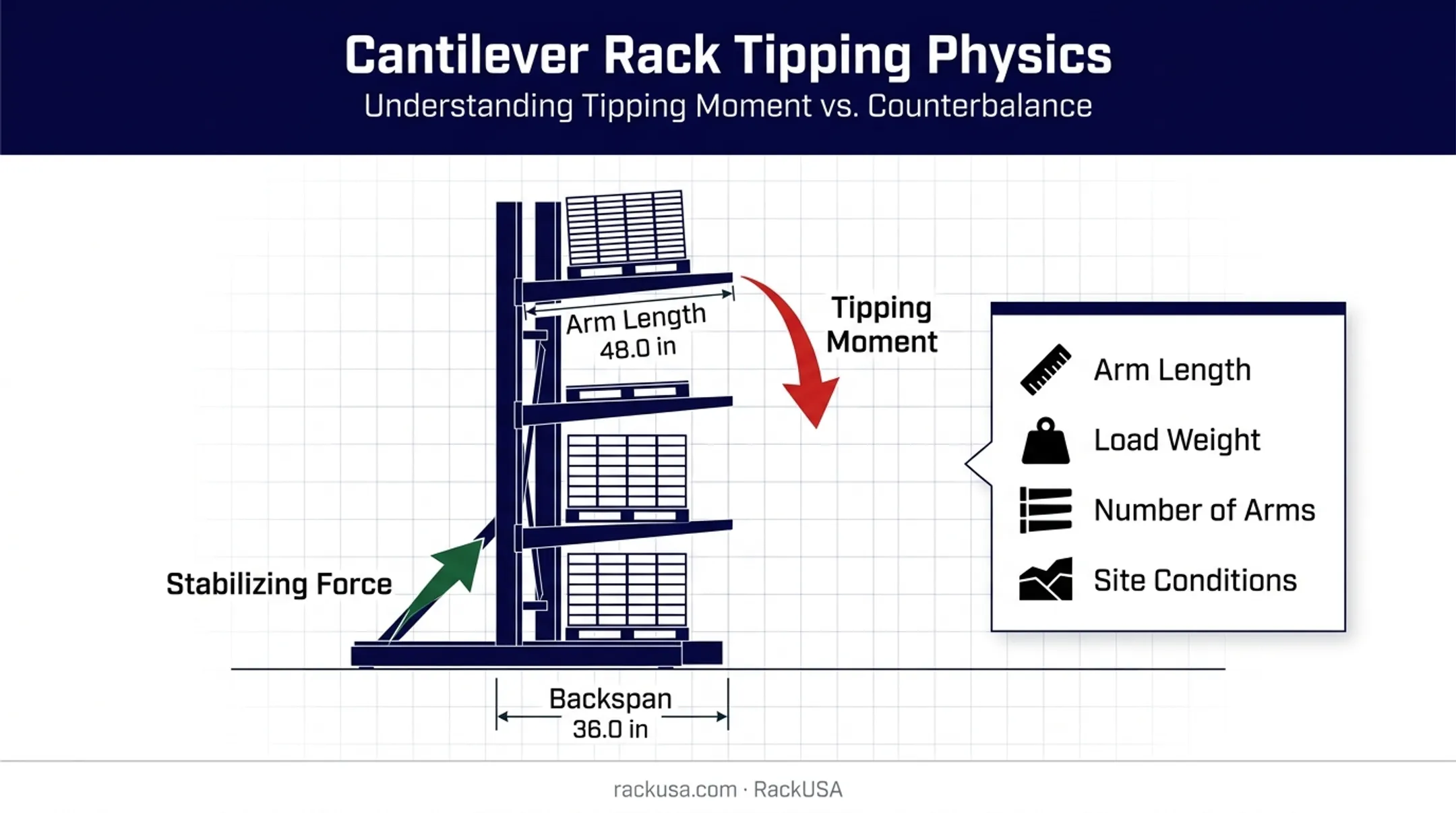

Here's the physics: a loaded arm creates a tipping moment that wants to rotate the upright forward. The base and backspan (the structure extending behind the load point) counteract that moment. Undersize the base relative to the load, and you risk tip-over.
You'll often hear this referred to informally as a "1/3 rule": the idea that backspan needs to be sized proportionally to the cantilevered arm length. In practice, this ratio isn't a fixed industry number you can apply universally. It varies by:
- Arm length and load weight
- Number of loaded arms per column
- Base design and anchor specification
- Site-specific factors like wind, seismic zone, or floor load capacity
That means every cantilever system needs configuration-specific engineering, not a rule of thumb pulled from a different structure entirely.
A few things to keep in mind when sizing:
- Arm-rated capacity drops as arm length increases. A 24-inch arm and a 48-inch arm on the same upright won't carry the same rated load.
- Calculate weight per arm, not per bay. Loads must be centered and distributed across at least two arms, never concentrated on one.
- Deflection limits are stricter for cantilever spans than for simply-supported pallet beams, because there's no support at the far end to limit sag.
- Permitting often requires PE-stamped drawings, particularly where local building codes reference ANSI MH16.1 for industrial storage racks.
Skipping this step creates real liability. Get the manufacturer's load chart and a qualified rack engineer's sign-off before you load a single arm.
Applications Across Industries
Cantilever racking fits loads that are too long, bulky, or irregular for standard pallet storage.
- Lumber and building materials: Standard for plywood, drywall sheets, moldings, and steel bar stock
- Manufacturing and retail: Furniture showrooms, boat dealers, and bulky-goods manufacturers keep inventory accessible without crating onto pallets
- Outdoor and covered storage: Lumber yards often pair cantilever uprights with roof structures for weather-protected outdoor inventory
For outdoor installations, build weather exposure, corrosion protection, and wind/snow loading into the engineering plan from day one.
Working with an Experienced Cantilever Systems Provider
Getting a cantilever project right requires more than picking arm lengths off a catalog page. Professional engineering covers facility layout, structural load analysis, PE-stamped drawings, and permitting assistance as part of the bundled project package. That work reduces the risk of costly rework or a safety incident.
RackUSA has manufactured storage systems since 1972, with cantilever racking as one part of a broader portfolio:
- Selective pallet racking
- High-density storage
- Rack-supported buildings
Design, engineering, manufacturing, and installation are bundled into the project process. Facilities planning a cantilever system get support from initial layout through final anchor bolt.
As storage needs evolve, ongoing support matters too. Reconfiguration, rack repair, and technical documentation help keep a system safe and compliant well after the initial install.
Frequently Asked Questions
What is a cantilever system?
A cantilever system is a storage or structural element supported at one end, with arms or beams extending freely from that support. It's used for long or irregularly shaped loads that pallet racking can't accommodate.
What is the 1/3 rule for a cantilever system?
It refers to the general principle that backspan (the base structure behind the load point) must be sized proportionally to the cantilevered arm length to prevent tip-over. The exact ratio is configuration-specific and requires engineering, not a fixed universal number.
What are real-life examples of cantilever systems?
Lumber racks, pipe and steel storage racks, balconies, and bridges all use the same fixed-free structural principle: support at one end, load extending outward from the other.
What is the difference between structural and roll-form cantilever racking?
Structural cantilever uses hot-rolled steel with bolted connections and handles heavier loads. Roll-form uses lighter-gauge steel with clip or boltless connections, installs faster, and suits lighter-duty applications.
How much weight can cantilever racking hold?
Capacity ranges widely, from roughly 1,000 lbs to several tons per arm, depending on arm length, rack type, and configuration. Always confirm capacity with the manufacturer's load chart and a professional sizing review.
Do I need permits to install cantilever racking?
Permit requirements vary by jurisdiction and local building code. Many areas require stamped engineering drawings for rack installations, so check with your local building department before starting a project.
