Engineered Cantilever Rack Storage Solutions

A cantilever rack is an industrial storage system with vertical columns and horizontal arms that extend outward to support loads. Because it has no front columns across the storage face, it is well suited for long, bulky, or irregular items such as lumber, pipe, tubing, bar stock, furniture, and sheet materials. Configurations can be single-sided or double-sided to fit the facility layout.

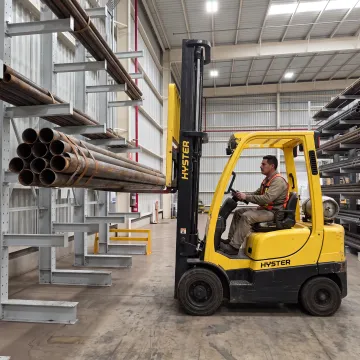

Cantilever racking provides open-front access, which makes loading and retrieving long materials easier with forklifts or manually handled stock. Adjustable arms allow storage levels to be tailored to changing inventory dimensions. The system can improve material visibility, reduce clutter on the floor, use vertical space effectively, and support organized separation of product types, sizes, or lengths.

A cantilever shelf, often called an arm, projects from a vertical upright and supports the stored material along its length. Multiple arms create a storage level, while the open front lets operators place or remove loads without navigating around front beams. Arm length, spacing, capacity, and optional accessories are selected according to the material’s dimensions, weight, and handling method.

Cantilever racks are commonly used for lumber, steel bars, pipe, tubing, conduit, PVC, drywall, sheet goods, furniture, carpeting, and other elongated or non-palletized products. The appropriate design depends on the load’s weight, length, bundle condition, and center of gravity. RackUSA can help evaluate material characteristics to select suitable arm capacities, column spacing, and storage levels.

Capacity selection starts with the maximum weight of each load, its length, how the weight is distributed, and the number of arms supporting it. You also need to consider arm length, column height, bay width, forklift reach, anchoring conditions, and seismic requirements where applicable. A properly engineered layout helps ensure that the rack is suitable for anticipated operating loads.

Yes. Cantilever systems can be planned for indoor warehouses, manufacturing facilities, lumber yards, and outdoor storage areas. Outdoor applications require careful consideration of weather exposure, drainage, anchoring, corrosion protection, and material packaging. Indoor layouts may prioritize aisle width, overhead clearances, fire protection, and forklift travel paths. The best configuration reflects the environment and daily handling process.

Professional installation helps ensure uprights are positioned accurately, components are assembled correctly, and anchors are secured according to the approved layout. Installation teams can also coordinate safety accessories, labeling, and final checks before the system enters service. For engineered systems and high-capacity loads, proper installation is especially important for maintaining intended performance and supporting a safer operating environment.

Many cantilever rack systems can be expanded with additional bays, uprights, arms, or storage levels when inventory and space needs change. Before modifying an existing installation, review component compatibility, structural capacity, anchoring, aisle clearances, and the new load profile. RackUSA can help assess expansion or reconfiguration options so changes align with the system’s intended use and facility workflow.
