But this isn't a bolt-on project. The rack type you already have, the structural engineering behind the connection, and local code compliance all determine whether the combination works or fails an inspection.
This article walks through the process step by step: when combining racking and mezzanines makes sense, what you need lined up before construction starts, the variables that make or break the project, and the mistakes that lead to expensive rework.
Key Takeaways
- Rack-supported mezzanines add usable space above existing racking without expanding your building footprint.
- Success depends on matching load capacity, ceiling clearance, and rack type to actual upper-level use.
- Structural engineering (seismic, wind, load analysis) and permitting are required, not optional.
- Capacity gains are project-specific; no MHI or RMI source backs a universal percentage, so calculate based on your own layout.
- Partnering with an in-house engineering manufacturer like RackUSA reduces design errors and speeds permitting.

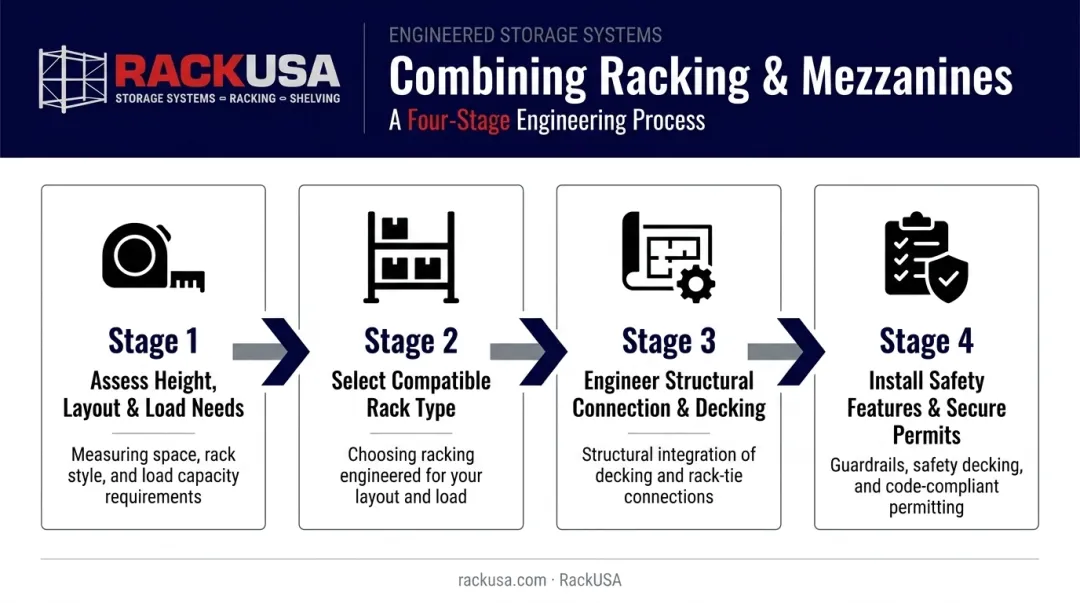

How to Combine Warehouse Racking and Mezzanines: Step-by-Step Process
Step 1: Assess Your Warehouse's Height, Layout, and Load Needs
Start by measuring clear ceiling height. Under the 2024 International Building Code, Section 505.2, mezzanine floor construction requires at least 7 feet (2,134 mm) of clear height both above and below the deck. That measurement applies to the floor construction itself, not just the walking surface, so double-check both zones before locking in elevations.
Next, map what's already overhead:
- Column spacing and existing bay dimensions
- Sprinkler head locations and coverage patterns
- HVAC ductwork and lighting fixtures that could conflict with a raised platform
Finally, define what each level will actually be used for. A picking mezzanine has different load requirements per square foot than a bulk storage deck, and that number drives everything downstream.
Step 2: Select a Rack Type That Can Support the Mezzanine Structure
Not every rack type is built to double as structural support. Compare your options:
- Selective pallet racking: flexible, direct access, common structural base for rack-supported mezzanines
- Cantilever racking: suited for long or bulky items stored below, with lighter mezzanine storage above
- Drive-in/pushback racking: high-density, but geometry can complicate mezzanine column alignment
- Pallet flow racks: gravity-fed FIFO systems that need careful load-path planning when combined with a deck above
Match the rack to your inventory profile. A distribution center storing pipe or lumber, for example, often pairs cantilever racks below with a lighter mezzanine deck above for parts or picking.
Whatever you choose, confirm with your rack manufacturer that the system is certified for dual-purpose use, covering both storage and structural support. Standard catalog racking isn't automatically rated for that combined load.
Step 3: Engineer the Structural Connection and Decking
This is where a structural engineer or the manufacturer's engineering team takes over. Load distribution, column reinforcement, and decking type all need calculation, not estimation.
Two code-driven checks matter here:
- Wind loads fall under IBC Section 1609, which points to ASCE 7-22 for site-specific calculation based on exposure and enclosure classification.
- Seismic loads fall under IBC Section 1613, also tied to ASCE 7-22, with an added rack-specific seismic rule under IBC 2209.2 for steel storage racks.
PE-stamped drawings are typically required before fabrication, though the exact trigger depends on state law and your local building department. Decking material matters just as much as the calculations behind it.
Steel grating handles heavy, concentrated pallet loads well. Particle board or plywood works fine for lighter picking or office space, but it won't hold up under point loads from a pallet jack or stacked inventory.
Step 4: Install Safety Features, Secure Permits, and Sign Off on Compliance
Once the structure is engineered, safety hardware isn't optional. Under OSHA 1910.29, guardrails need a top rail height of 42 inches, plus or minus 3 inches, capable of resisting at least 200 pounds of force. Toe boards must be at least 3.5 inches high. Ladderway access points need self-closing gates.
Beyond guardrails, check:
- Sprinkler coverage: adding a deck can obstruct existing coverage and trigger additional sprinklers under NFPA 13's obstruction rules
- Fire code compliance: occupancy classification can shift once a mezzanine level goes in
- Final inspection: schedule this before putting the structure into operation, and don't skip securing an occupancy or use permit
When Should You Combine Racking and Mezzanines in Your Warehouse?
This approach works best in warehouses with unused vertical clearance above existing racks. Facilities already pushing ceiling height limits need a different solution entirely.
Common use cases include:
- Distribution centers doubling storage capacity without leasing additional space
- E-commerce operations adding a picking mezzanine above bulk pallet storage
- Manufacturers building parts storage above a production cell
- Pharmaceutical and food distribution centers needing organized, traceable inventory across levels
- Parcel and logistics operations requiring multi-level sortation
It becomes inefficient, or even risky, in a few specific situations:
- Low-clearance buildings without enough vertical space to spare
- Layouts that get reconfigured frequently
- Operations that need forklift access to every level
A mezzanine adds a fixed structure to what used to be open space. That trade-off only pays off with consistent, long-term storage needs. Seasonal operations or facilities planning a layout overhaul within two years usually don't recoup the investment.
What You Need Before Combining Racking and Mezzanines
Skipping proper preparation is one of the leading causes of rework, failed inspections, and safety violations on combined rack-and-mezzanine projects. Three categories need to be locked down before design work begins.
Structural and Equipment Requirements
- Racking rated for dual-purpose load-bearing use, not just standard storage
- Column and frame spacing verified to match the mezzanine's structural plan
- Decking rated for the intended point loads, not just average distributed weight
Site and Facility Conditions
Confirm the existing floor slab can bear the added structural load before anything else moves forward. Check for utility, sprinkler, or lighting conflicts early — catching these after fabrication starts is far more expensive than catching them during the walkthrough.
Compliance and Engineering Readiness
Facility layout drawings, PE-stamped structural calculations, fire safety reporting, and permitting all need to be confirmed before installation. A manufacturer offering bundled engineering and installation support, such as RackUSA, can streamline this, pairing product purchase with the design and technical groundwork needed to get through permitting without gaps in the paperwork.
Key Parameters That Affect Integration Success
Even a well-planned combination can underperform or fail inspection if these variables aren't controlled.
Load Capacity per Level
Mismatched load ratings between racking and mezzanine decking are a leading cause of structural failure. The 2024 IBC Table 1607.1 sets these minimum design loads:
| Use Category | Uniform Live Load | Concentrated Live Load |
|---|---|---|
| Storage warehouse, light | 125 psf | Not listed |
| Storage warehouse, heavy | 250 psf | Not listed |
| Manufacturing, light | 125 psf | 2,000 lb |
| Manufacturing, heavy | 250 psf | 3,000 lb |
These are code minimums, not universal floor ratings. Your actual expected load, including concentrated pallet weight, needs to match or exceed whichever number is higher.
Ceiling Clearance and Vertical Spacing
Insufficient clearance blocks safe movement of workers and equipment between levels. As covered in Step 1, the IBC's 7-foot clearance standard applies above and below the deck. Treat that figure as a minimum, not a design target.
Rack Type and Configuration
Not all racking integrates equally well with mezzanine columns and beams. Narrow-aisle systems, for instance, don't always align cleanly with structural mezzanine supports the way selective racking does. Choosing the wrong type can limit usable storage density or force costly structural rework later.
Decking and Flooring Material
Decking choice affects point-load tolerance, fire rating, and noise or vibration on the upper level. Steel grating suits heavy pallet loads. Particle board or plywood suits lighter picking or office use, but neither substitutes for the other. Mismatching them to the load type is a common source of premature wear.

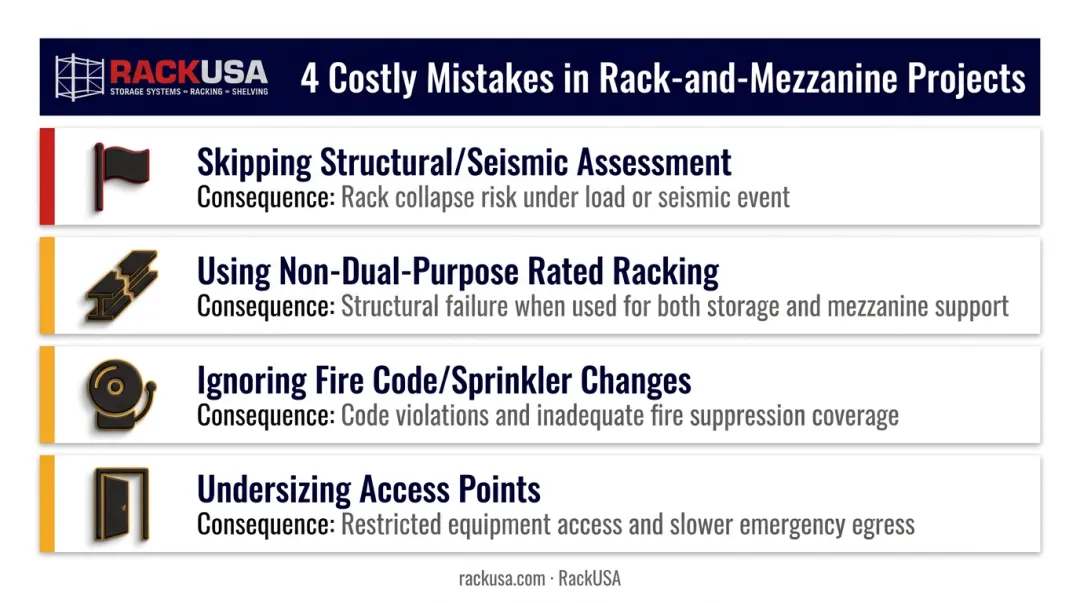

Common Mistakes and Quick Troubleshooting Tips
A handful of mistakes account for most failed inspections and rework requests on these projects:
- Skipping a professional structural and seismic load assessment before installation, which leads to failed inspections or unsafe platforms
- Choosing racking not rated for dual-purpose storage-and-structural use, causing sagging beams or decking failure under combined loads
- Ignoring fire code and sprinkler coverage changes once a mezzanine level goes in, resulting in permit rejections
- Undersizing access points, which leaves stairs, gates, or guardrails sized for bare code minimums rather than actual foot traffic and forklift routes
Most of these come down to one root cause: treating the mezzanine as a standalone addition instead of an integrated structural system tied to the racking below it.
Frequently Asked Questions
Can you use pallet racking as a mezzanine?
Yes, but only when it's engineered and rated for combined storage and structural loads. Standard pallet racking without reinforcement isn't sufficient to serve as a rack-supported mezzanine's foundation.
What is mezzanine shelving?
Mezzanine shelving refers to the storage units (shelving, racking, or bins) installed on top of or below a mezzanine platform to organize inventory across both levels.
How much weight can you put on a mezzanine floor?
Capacity depends entirely on the structural design behind it. Code minimums range from 125 psf for light storage to 250 psf for heavy storage or manufacturing use, but confirm exact ratings with a structural engineer.
What is the price of a mezzanine racking system?
Cost varies based on square footage, load rating, decking material, and installation complexity. Request a custom quote based on your facility's specific layout and load requirements.
What's the difference between a rack-supported mezzanine and a structural mezzanine?
A rack-supported mezzanine uses the racking itself as the support structure. A structural mezzanine has independent columns. The right choice depends on your existing racking and how much layout flexibility you need going forward.
Do combined racking and mezzanine systems require permits?
Most jurisdictions require a permit since these projects involve structural alteration and potential occupancy changes. Work with a manufacturer that assists with permitting and PE-stamped drawings to avoid delays.
