As warehouses scale operations, loads get heavier, forklift traffic increases, and downtime gets more expensive. Many operators struggle with rack systems that weren't specified for their actual conditions, leading to bent frames and safety violations.
This article breaks down the main types of structural pallet racking, how they compare to roll-formed systems, and how to choose the right one for your facility.
TL;DR
- Structural racking uses heavier hot-rolled steel and bolted connections for greater strength than roll-formed rack
- Main types: selective, drive-in/drive-thru, double-deep, and cantilever—each suited to different density and load needs
- Structural rack costs more upfront but holds up better under forklift impact and harsh environments
- The right choice depends on load weight, storage density, turnover rate, and facility conditions

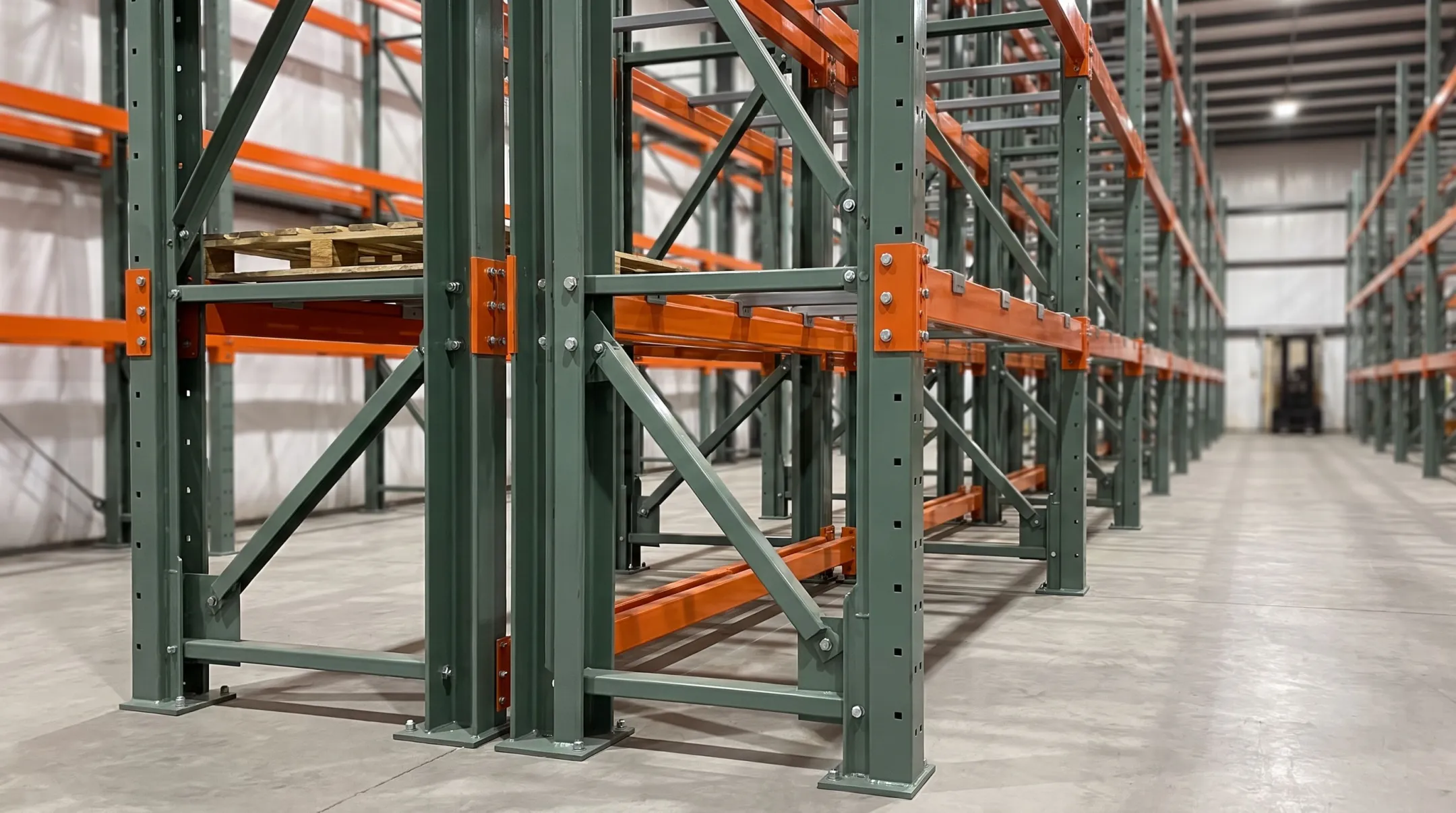

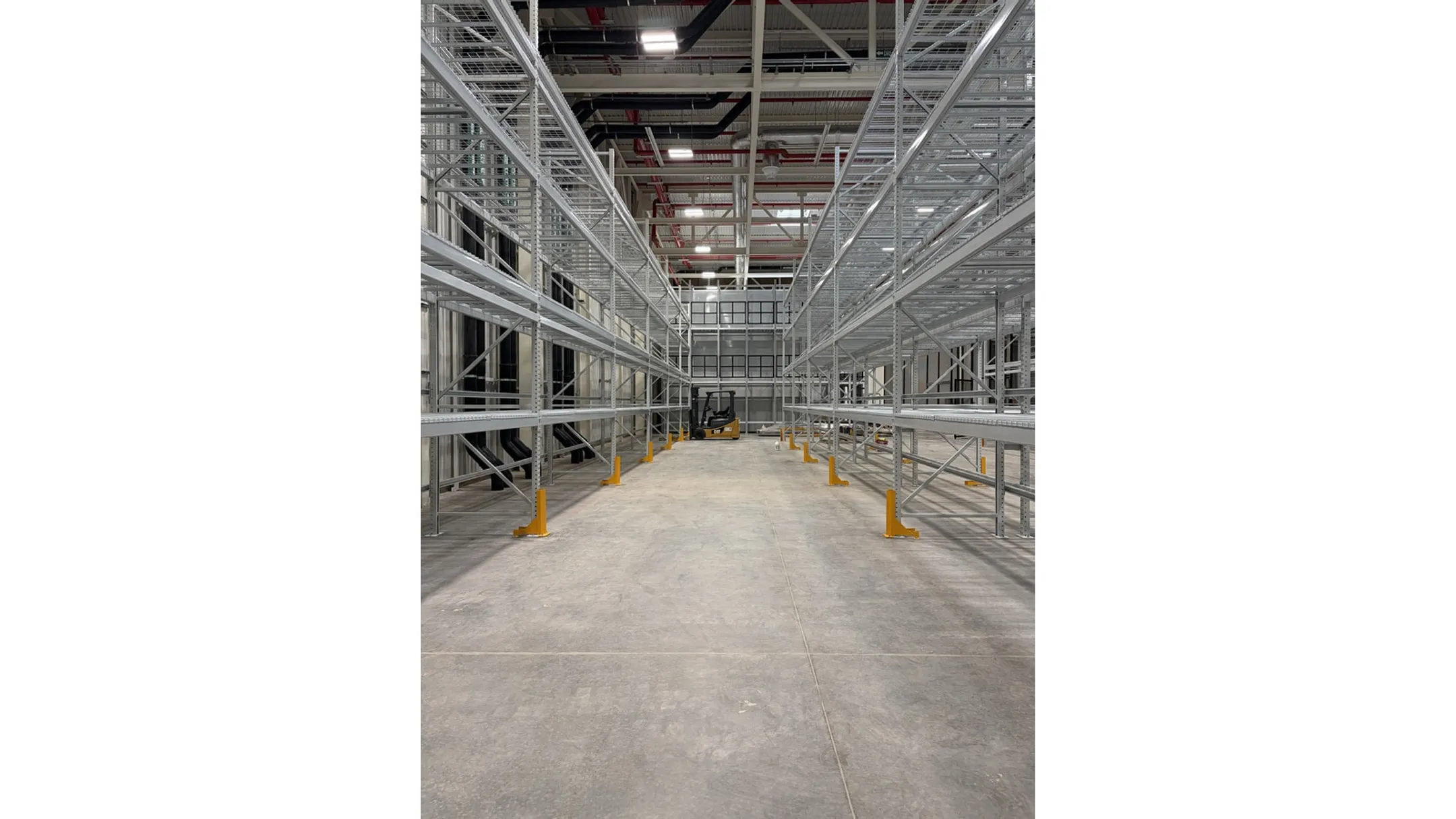

What Is Structural Pallet Racking?
Structural racking is built from heavy-gauge structural steel, typically C-channel or I-beam profiles, with bolted or slotted connections joining beams to upright frames. This differs from roll-formed racking, which uses thinner, cold-formed steel and stamped teardrop clips.
According to Ridg-U-Rak, structural upright columns often carry a minimum 50,000 psi yield strength, with beam-to-column connections designed to withstand repeated stress rather than a single impact.
Structural racking is engineered for:
- High-capacity, heavy-pallet loads
- Repeated forklift impact
- Outdoor, wash-down, or cold storage environments
It suits any operation where impact resistance and long-term durability matter more than shaving a few dollars off the initial quote.
Why Is Structural Racking Important for Warehouse Operations?
Heavier steel means higher weight capacity per level, which directly affects how much product you can store and how fast you can move it. Standard roll-formed selective racks typically handle 1–3 tons per level, while structural racking often exceeds 3 tons per level, depending on design.
Structural racking's resistance to forklift impact matters just as much as its raw capacity. According to RMI forklift impact guidance, any rack hit by a forklift is likely to sustain some damage. The real question is whether that damage compromises the frame or only needs monitoring.

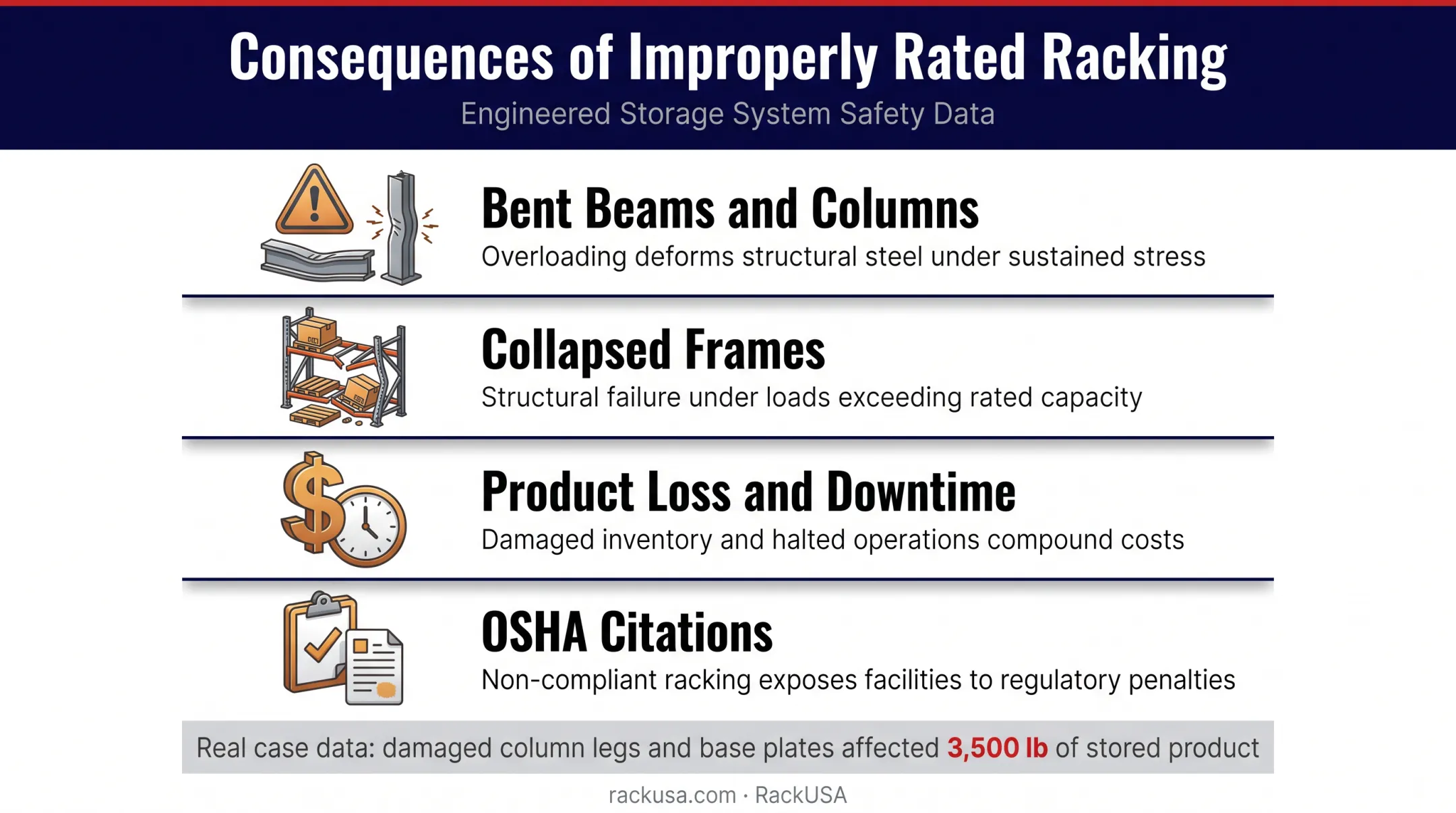

What goes wrong without properly rated racking:
- Bent beams and columns from routine forklift contact
- Collapsed frames under loads the system wasn't rated for
- Product loss and downtime during repairs
- OSHA citations for unstable or unsecured storage under 1910.176(b)
OSHA's 2021 citation record documents a real case of forklift damage to column legs, base plates, and a horizontal member. That damage affected load capacity and put roughly 3,500 lb of stored product at risk until the facility isolated the bay and had it professionally evaluated.
This is where engineering support earns its keep. RackUSA's structural load analysis checks that a proposed rack system can support the planned pallet weights and clear height, then backs the design with PE-sealed drawings so facilities aren't guessing at capacity ratings.

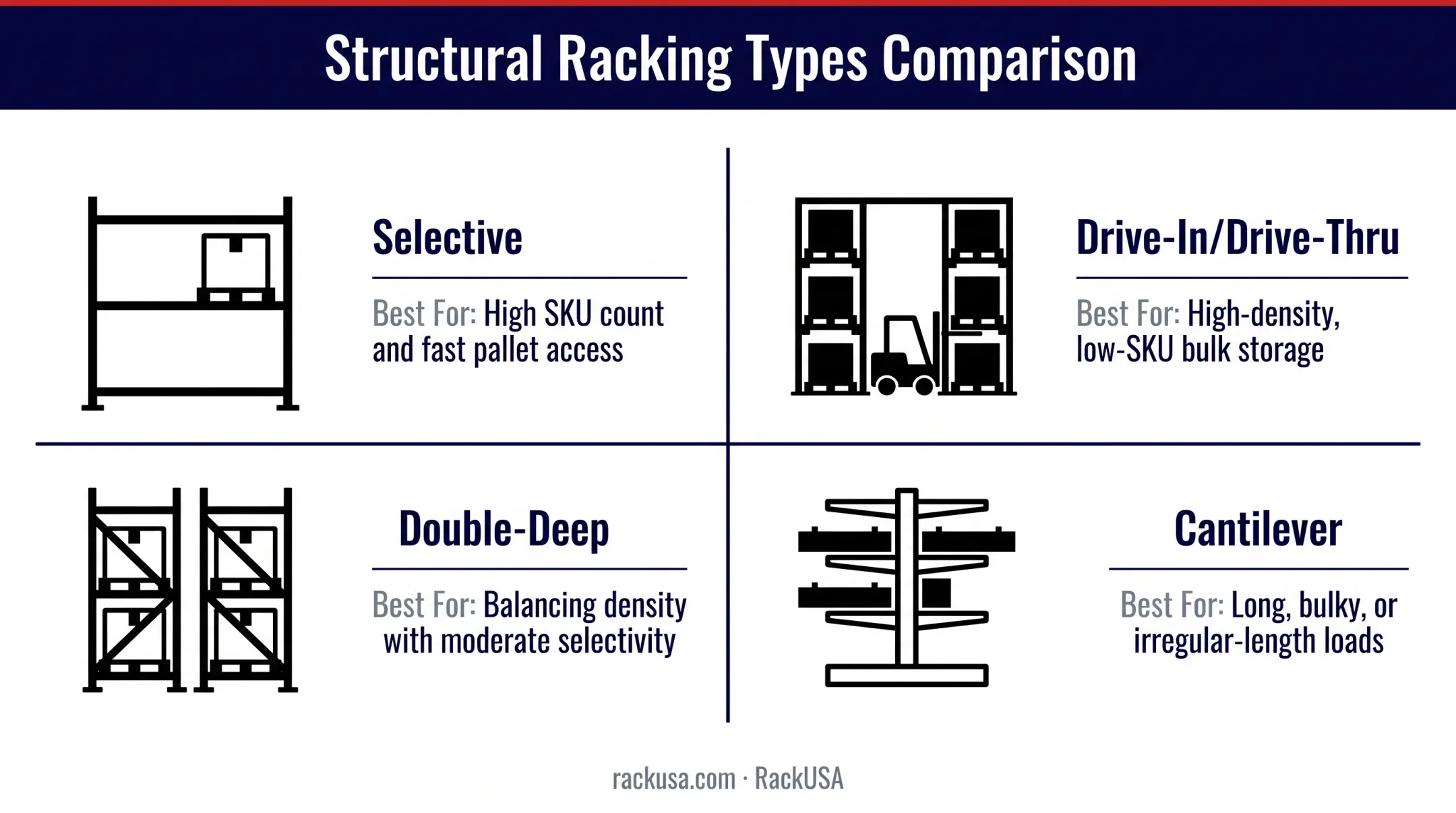

Types of Structural Pallet Racking Systems
Structural racking isn't one-size-fits-all. Configurations vary based on how dense you need storage to be, what your loads look like, and what equipment you're running. Matching the right type to your throughput and floor space avoids paying for density you don't need or sacrificing access you do need.
Selective Structural Racking
Single-deep rows of structural upright frames and bolted beams give direct access to every pallet position. It prioritizes selectivity over density, unlike drive-in or double-deep setups.
Best for: high-SKU-count operations, FIFO inventory, general warehousing with heavy or oversized pallets.
- Simple layout compatible with any standard forklift
- High load capacity per bay
- Easy to reconfigure as needs change
- Lower density than deep-lane systems; needs wider aisles
RackUSA manufactures Selective Structural Racks using heavy-gauge steel and structural profiles, designed for heavy palletized loads and intensive forklift traffic. The same configuration also supports double-deep and drive-in integrations.
Drive-In / Drive-Thru Structural Racking
Forklifts drive directly into the rack lane along continuous rail beams, storing pallets several positions deep. Drive-in uses one entry point for LIFO retrieval; drive-thru opens both ends for FIFO.
RMI's worked example puts drive-in selectivity at roughly 13% for a 4-high, 8-deep configuration — a useful illustration, not a universal number RMI's drive-in design considerations.
Best for: cold storage, high-volume single-SKU storage, facilities that need rails strong enough for repeated forklift entry.
- Significantly more pallet positions per square foot
- Structural steel rail beams resist repeated impact better than roll-formed rail
- Lower selectivity; honeycombing risk if SKU management is loose
- Requires trained operators matched to rail width and column spacing
Double-Deep Structural Racking
Two rows of structural selective racking placed back-to-back, accessed with a deep-reach forklift. It splits the difference between selective's access and drive-in's density.
Best for: operations storing multiple pallets per SKU that still want moderate selectivity.
- Roughly doubles storage density versus single-deep selective
- Retains bolted structural connections for durability
- Requires specialized reach trucks
- Roughly 50% selectivity; rear pallet access is LIFO-oriented
RackUSA builds double-deep as a configuration within its structural and selective product lines rather than a standalone model. It uses the same structural frame system.
Cantilever Structural Racking
Structural steel towers with horizontal arms extending outward, with no vertical front obstruction. Built for long or bulky items, not palletized unit loads.
Best for: building material suppliers, metal and lumber yards, manufacturers handling long stock like pipe or bar.
- Heavy-duty arm capacity, loading from either side
- Adjustable arm heights for varied material sizes
- Requires wide aisles
- Larger footprint per item stored
RackUSA's Cantilever Rack supports 1,100 lb to several tons per arm, with single- or double-sided configurations and customizable height and width, built with horizontal and diagonal bracing plus floor anchors.
Note: ANSI MH16.1-2023 specifically excludes cantilever rack from its scope, along with drive-in/drive-through systems. Cantilever design instead falls under ANSI MH16.3.

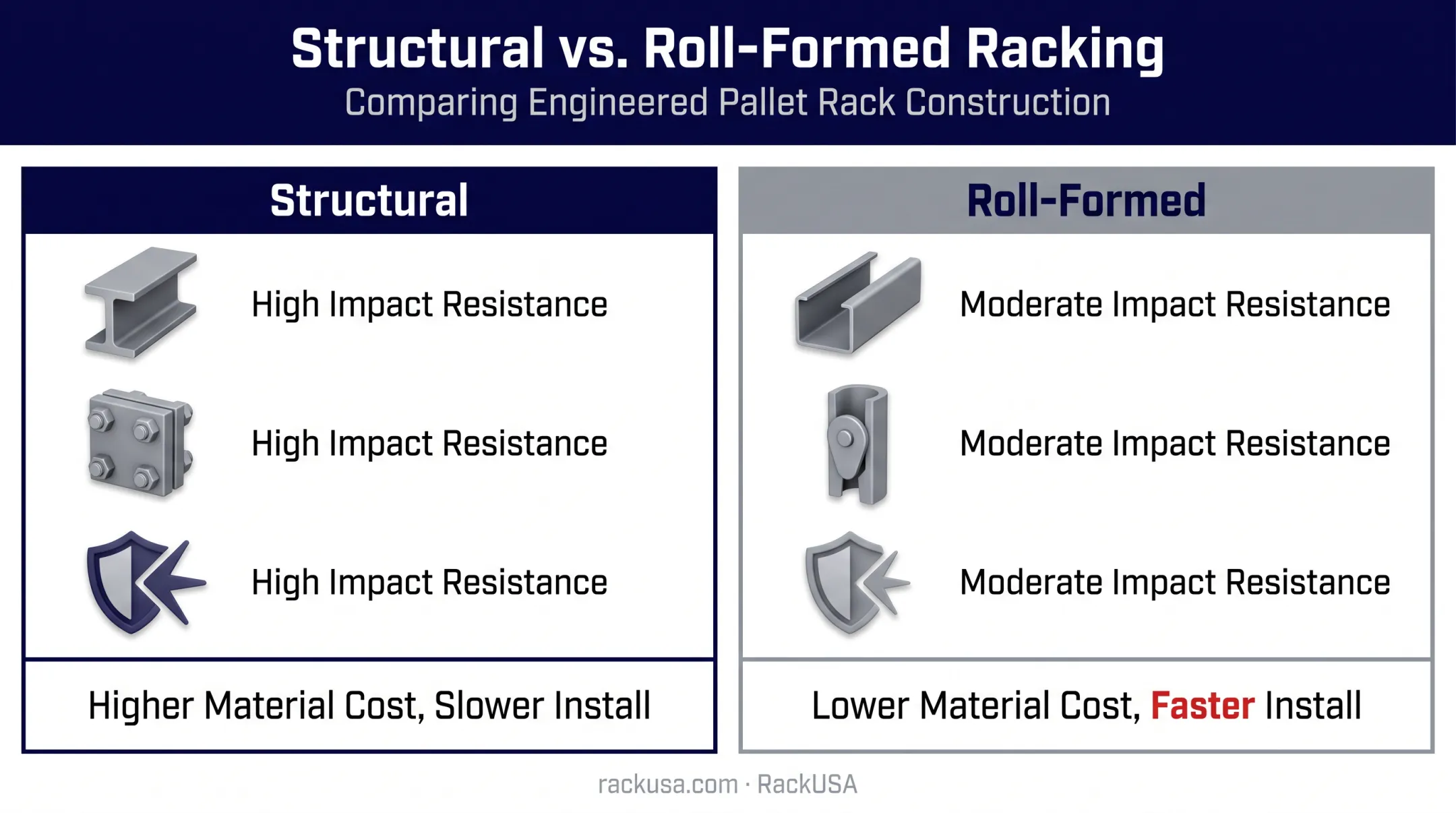

Structural vs. Roll-Formed Racking: A Quick Comparison
| Factor | Structural | Roll-Formed |
|---|---|---|
| Steel type | Hot-rolled, heavy-gauge | Thin-gauge, cold-formed |
| Connections | Bolted or slotted | Teardrop/clip |
| Impact resistance | High | Moderate |
| Best environments | Outdoor, high-traffic, cold storage | Indoor, standard use |
| Cost & install | Higher upfront | Lower upfront, faster install |
According to RMI's structural vs. roll-formed comparison, roll-formed rack uses thin-gauge, high-strength cold-rolled steel shaped into profiles. That build is flexible and cost-efficient for standard applications, but it is not made for the same heavy impact as structural rack.
RackUSA manufactures both. Its roll-formed selective racks use cold-rolled steel with boltless tab connections for tool-free level adjustment, which suits operations that need speed and flexibility. Structural configurations trade some of that quick-adjust convenience for raw impact tolerance. In either case, each design is engineered to the load profile and operating environment.
How to Choose the Right Type of Structural Racking
The right configuration depends on your actual operating conditions, not on which system is most popular.
Key factors to evaluate:
- Match structural steel capacity ratings to real load weights and pallet dimensions, not estimates
- Weigh storage density against selectivity based on FIFO or LIFO inventory rotation
- Confirm forklift fleet compatibility with standard, reach truck, or drive-in-rated equipment
- Specify coatings and designs for outdoor, cold storage, or wash-down environments
- Plan budget around future expansion, not only today's needs
- Check seismic and permitting requirements; local codes vary significantly by jurisdiction
RackUSA builds seismic engineering into its designs from the start rather than bolting it on later. Calculations factor in the warehouse's seismic zone, total system load, and the geometry of uprights, beams, and connectors, aligned with RMI guidelines and ANSI MH16.1-2023 for applicable cold-formed systems.
What to Check Before Finalizing Your Structural Racking Choice
Before signing off on a design, run through this checklist:
- Don't over-buy density. A drive-in system sounds impressive, but if your SKU count and turnover don't justify it, a selective layout will serve you better and cost less to operate.
- Confirm engineered load capacity. Match it to actual pallet weights, not rough averages pulled from a spec sheet.
- Verify sealed engineering drawings. Installation should include them, plus compliance with local seismic and fire codes.
- Factor in long-term costs. Flexibility and maintenance matter as much as the sticker price on materials.
According to MHI/RMI's R-Mark program, R-Mark certification is voluntary and demonstrates a manufacturer's design capability. It's a useful screen, but it doesn't replace checking with your local building authority on permitting requirements.
Conclusion
Structural pallet racking is built for high-traffic, heavy-load warehouse operations. Selective, drive-in/drive-thru, double-deep, and cantilever systems each address a different mix of density, access, and load needs.
Match the system to your SKU profile, throughput, and facility layout. Designs backed by real engineering—proper load ratings, seismic considerations where required, and correct installation—support safer storage and fewer costly change orders later.
Frequently Asked Questions
What are the different types of pallet racking systems?
The main structural types are selective, drive-in/drive-thru, double-deep, and cantilever. They differ mainly by storage density, selectivity, and whether they're built for palletized loads or long/bulky items.
What is CLS racking?
CLS most commonly refers to Carton Live Storage, a system using inclined roller tracks for automatic stock rotation in split-case picking. It's not a standard structural pallet-rack category, so confirm specifications directly with any supplier using the term.
What is the difference between roll-formed and structural racking steel?
Structural steel is hot-rolled, heavier-gauge, and joined with bolted or slotted connections. Roll-formed steel is cold-formed, lighter-gauge, and typically uses teardrop clip connections.
Is structural pallet racking more expensive than roll-formed?
Yes, structural racking generally costs more upfront in materials and installation. It typically pays that back through better durability and lower long-term damage and repair costs in high-traffic settings.
Can structural racking be used outdoors?
Structural racking's open profile makes it easier to galvanize, which suits outdoor and wash-down environments. Confirm the specific coating and corrosion protection with your manufacturer before installing outdoors.
How do I know if my facility needs structural instead of roll-formed racking?
Look at load weight, how often forklifts contact the rack, and environmental exposure. Heavy loads, frequent forklift traffic, or outdoor/harsh conditions all point toward structural rack.
