Introduction
Your racking system determines how much of your warehouse you can actually use. Not the square footage on the lease, the real usable capacity, once you account for aisles, ceiling height, and pallet flow.
Get the design wrong and the consequences pile up fast: wasted vertical space, slow picking routes, and racks that don't meet code.
Many businesses still treat racking as a catalog purchase instead of an engineering decision. That's why so many facilities end up retrofitting within a few years of installation.
This guide covers racking types, a step-by-step layout process, the components that hold the system together, OSHA and safety considerations, and what to expect from a turnkey provider like RackUSA.
Whether you're designing a new distribution center or reconfiguring an existing floor, the goal is the same: match the system to your inventory, not the other way around.
Key Takeaways
- Effective racking design balances storage density, pallet accessibility, and compatibility with your forklift fleet
- SKU count and inventory turnover (FIFO vs. LIFO) determine whether selective or high-density racking fits best
- Accurate measurements of pallets, aisles, and ceiling clearance form the foundation of a safe layout
- Routine inspections and OSHA-aligned practices protect workers and preserve your racking investment
- A turnkey manufacturer reduces design risk and engineers the system around your specific facility
Types of Warehouse Racking Systems

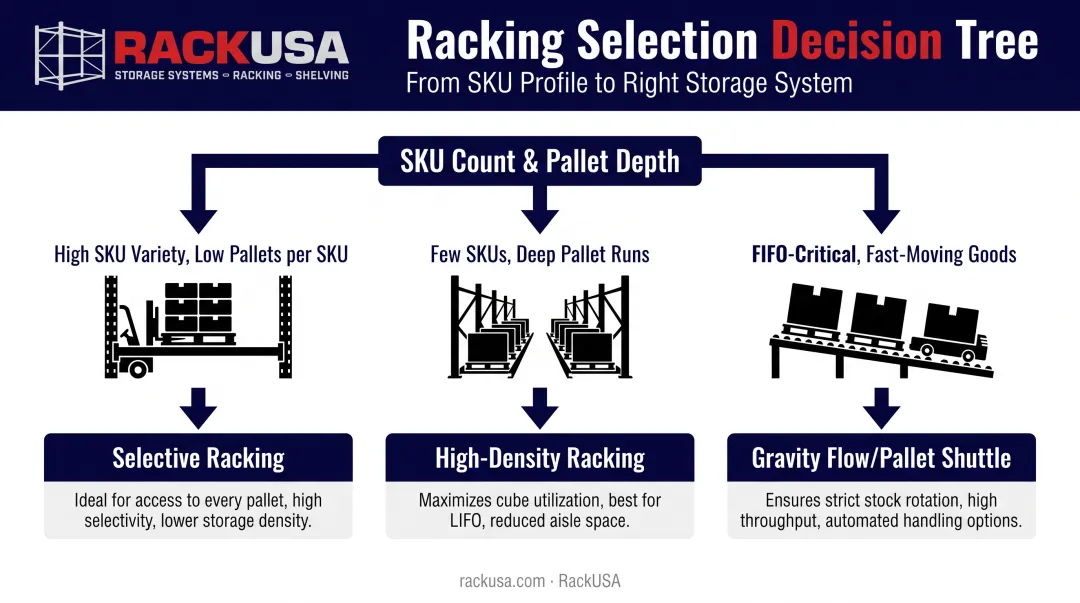

Choosing a racking type starts with one question: how many SKUs do you store, and how many pallets sit behind each one? That answer points you toward selectivity or density.
Selective and High-Density Options
Selective pallet racking is the industry default. Every pallet has direct access from the aisle, making it the right fit for warehouses juggling many SKUs with modest pallet counts per SKU. It's also the least expensive system to install, since it requires no rails, carts, or motors.
When you're storing large volumes of a single SKU, high-density options make more sense:
- Drive-in racking – forklifts enter the rack from one side (LIFO). UNARCO notes up to double the capacity of selective racking.
- Drive-through racking – load from one side, retrieve from the other for true FIFO bulk storage.
- Push-back racking – pallets ride inclined carts 2 to 6 deep; each new load pushes the prior one back. Lanes stay independently accessible, with up to 90% more storage than selective rack (Steel King).
Gravity Flow and Specialized Systems
Gravity-fed systems automate FIFO rotation without relying on operator discipline:
- Pallet flow racking moves full pallets on sloped rollers from a rear loading aisle to a front pick face, ideal for date-sensitive or fast-moving inventory.
- Carton flow racking does the same for cartons and piece-pick SKUs, separating replenishment from picking.
For higher density with inventory control, RackUSA's Matador pallet shuttle system uses electric shuttles inside rack channels. Software directs FIFO or LIFO sequencing, and units can run semi-autonomous or fully autonomous around the clock.
Other specialized formats include:
- Double-deep racking – two pallets deep per location for moderate density gains
- Cantilever racking – long or bulky loads such as lumber, pipe, and sheet goods
- Mobile racking, mezzanines, and pick modules – maximize cubic space when floor footprint is tight
| System | Storage Density | Selectivity | Best For |
|---|---|---|---|
| Selective | Low | Highest | Many SKUs, low pallets per SKU |
| Drive-in/through | High | Low | Bulk single-SKU storage |
| Push-back | Moderate-High | Moderate | Multiple SKUs, LIFO acceptable |
| Pallet/carton flow | High | Moderate | FIFO-critical, fast-moving goods |
| Pallet shuttle | Highest | Moderate-High | High-volume, software-managed FIFO/LIFO |
| Double-deep | Moderate | Moderate | Multiple pallets per SKU |
| Cantilever | Varies | High | Long, bulky, irregular loads |

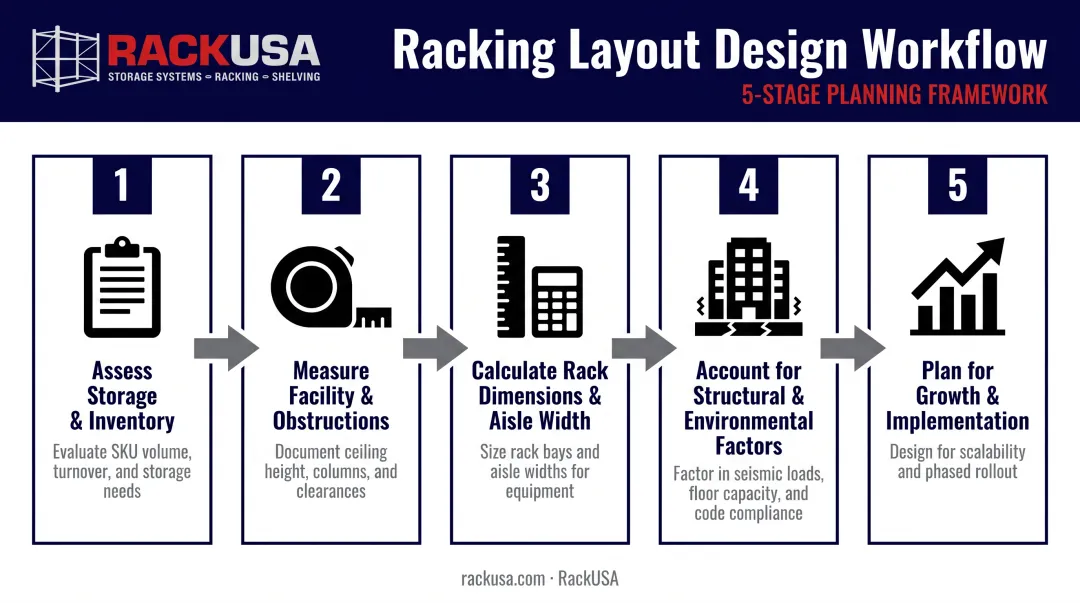

Step-by-Step Warehouse Racking Layout Design Process
A good racking layout doesn't start with a rack catalog. It starts with a tape measure and an inventory spreadsheet.
Assess Storage & Inventory Requirements
Document your SKU count, pallets per SKU, and turnover pattern. That profile drives system choice:
- High SKU variety with low pallet counts → selective racking
- Few SKUs with deep pallet runs → drive-in, push-back, or shuttle systems
Record pallet dimensions, weight, and type. A standard 40" x 48" GMA pallet drives different frame depth and beam capacity than a custom footprint.
Measure the Facility & Identify Obstructions
Record square footage, column spacing, ceiling height, and dock door placement. Fire code clearance matters here too: OSHA requires a minimum 18-inch vertical clearance between sprinkler heads and stored material, which directly limits how tall your uprights can go.
Calculate Rack Dimensions & Aisle Width
Two rough formulas get you started:
- Frame depth ≈ pallet depth minus 6 inches, allowing overhang front and rear
- Upright height ≈ stacked pallet height plus beam height plus clearance for each tier
Aisle width depends entirely on your forklift:
- Standard counterbalance trucks: about 12 feet
- Narrow-aisle reach trucks: 10–11 feet
- Very narrow aisle turret trucks: as little as 7 feet
Account for Structural & Environmental Factors
Facilities in seismic zones or handling heavy loads need site-specific structural analysis. Factor in soil class, floor slab data, and rack geometry.
Most jurisdictions also require PE-stamped engineering drawings before permitting, particularly for racks above 8 feet in higher seismic design categories.
Plan for Growth, Budget & Implementation
Choose modular racking that scales as inventory grows, then lock in the operational details before you order:
- Match system scope to budget with a phased build-out if needed
- Finalize a complete warehouse map before purchasing
- Pair the layout with labeling or a WMS so organization holds once product moves
Essential Components of a Racking System
A racking system is only as strong as its weakest connection point. Every component plays a specific structural or safety role.
Structural components bear and distribute the load:
- Upright frames – vertical columns connected by bracing, forming the backbone of each bay
- Horizontal beams – step beams have a recessed ledge for decking; box beams sit flush and need decking that rests on top
- Braces and baseplates – diagonal braces stabilize frames; baseplates transfer column loads to the floor
- Anchor bolts – fasten baseplates to the slab and are critical in seismic zones
Support elements keep pallets aligned and secure:
- Crossbars and beam locks – lock beams into frames and support smaller loads
- Decking – wire mesh, wood, or metal, chosen for airflow, visibility, and sprinkler penetration
Safety accessories are frequently required for rack certification:
- Column protectors – shield uprights from forklift impact
- Wire mesh backing – protects rear and end-of-aisle openings
- Load stops – prevent pallets from sliding off the rear
- Capacity signage – states safe weight limits per level and bay
None of these accessories increase a rack's engineered capacity. They protect the structure and the people working around it, which is why inspectors look for them.
Warehouse Racking Safety & OSHA Compliance
OSHA doesn't publish a single, rack-specific capacity standard. Instead, 29 CFR 1910.176 requires safe aisle clearances, stable stacking, and housekeeping practices that prevent tipping or collapse. The actual structural math, load ratings, deflection limits, and testing criteria come from ANSI MH16.1, the industry design standard developed by the Rack Manufacturers Institute.
In practice, that means two compliance tracks running side by side:
- OSHA enforcement: clear aisles, marked passageways, stable and secure storage, no tripping or fire hazards
- RMI/ANSI design standards: capacity plaques on every rack section, engineered beam and upright ratings, seismic bracing where required
Every rack section needs posted load-capacity signage, and it should be updated any time the configuration changes. Beyond signage, routine visual inspections matter: look for bent beams, deformed uprights, misaligned frames, or missing safety pins.
RMI notes there's no single universal inspection interval mandated by regulation. Reported practice ranges from monthly to annual, with high-impact areas warranting more frequent checks.
RackUSA manufactures MHI R-Mark certified racking engineered to ANSI MH16.1, with documented load ratings, seismic design where required, and safety accessories such as rack protectors and wire mesh decking. Installation and technical support are bundled with system purchases so capacity plaques and configuration records stay aligned as the layout changes.
Working with a Turnkey Racking Design & Installation Partner
DIY racking layouts feel cheaper upfront, but they carry a real risk: costly retrofits when the aisle width doesn't match the forklift, or a permit rejection because the drawings weren't PE-stamped. Bringing in an experienced manufacturer at the design stage, rather than after the racks arrive, closes that gap.
RackUSA has manufactured industrial racking and storage systems since 1972 from its plant in Gómez Palacio, Durango, Mexico. Offices and warehouses in Laredo, Los Angeles, and Houston, plus locations in Mexico and Central America, support projects across the Americas.
The company holds MHI membership and R-Mark certification (R-Mark Certified System No. 5190), confirming its racks meet ANSI MH16.1-2023 construction and load standards.

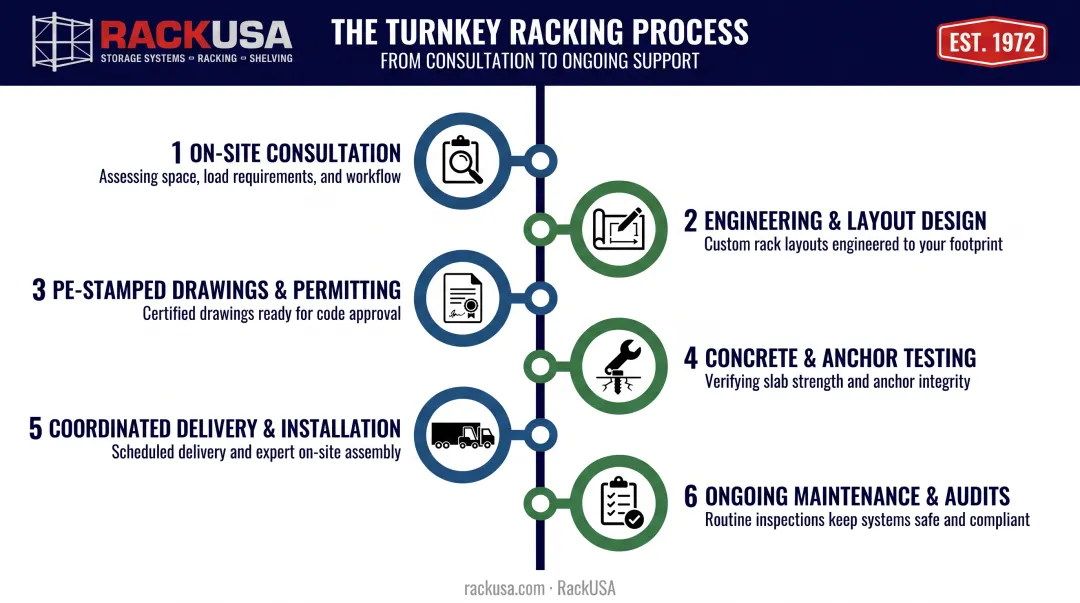

As part of a RackUSA racking project, the turnkey process typically includes:
- On-site facility consultation to assess space, load requirements, and operating conditions
- Engineering and layout design, including seismic and structural load analysis specific to the site
- PE-stamped drawings and permitting assistance for local code approval
- Concrete strength and floor-slope testing, plus bolt and anchor inspections before sign-off
- Coordinated delivery and installation, timed to minimize disruption in active facilities
- Ongoing maintenance, including safety audits and OSHA compliance education
For facilities that need maximum density with software-managed inventory control, RackUSA's Matador pallet shuttle system rounds out the portfolio alongside selective, drive-in, push-back, and pallet-flow options.
If you're planning a new layout or reworking an existing one, a design consultation is the place to start before any steel gets ordered.
Frequently Asked Questions
What is the most efficient way to layout warehouse racking?
Arrange rows in long runs aligned with product flow, and place fast-moving SKUs closest to shipping. Match aisle width to the forklift or reach truck you actually operate, rather than a generic standard.
What are the components of a racking system?
Core structural parts include upright frames, horizontal beams, braces, and baseplates. Support and safety elements add decking, crossbars, load stops, and capacity signage.
What are the OSHA guidelines for pallet racking?
OSHA enforces general storage and handling rules under 29 CFR 1910.176, covering clear aisles and stable stacking. Rack design and load capacity follow the separate ANSI MH16.1 standard, which requires posted capacity signs and regular inspections.
How much does a warehouse racking system cost?
Cost scales with density: selective racking is the least expensive option, while pallet flow and automated shuttle systems cost more due to added rails, rollers, or motors. Height, materials, and installation complexity all factor into the final quote.
How do I choose the right racking system for my warehouse?
Start with SKU count, inventory turnover pattern (FIFO or LIFO), pallet type, and how much floor and vertical space you have available. These four factors point toward selective, high-density, or dynamic flow systems.
How often should warehouse racking be inspected?
Perform ongoing internal visual checks, and schedule at least one formal third-party inspection annually. High-traffic or high-impact areas often warrant monthly checks instead.
