Confusing the two during a layout decision creates real problems: overloaded units that fail inspection, wasted floor space, or a picking process that's slower than it should be. The choice affects four things operations managers actually get measured on: floor space utilization, load safety, forklift accessibility, and total storage cost.
This guide breaks down what separates the two systems, where each one fits, and why most well-run facilities end up using both.
Key Takeaways
- Racking holds palletized loads of thousands of pounds per level; shelving suits lighter, hand-loaded items
- Load capacity, depth, access method, and construction material set the systems apart, not size alone
- Most warehouses run racking and shelving side by side, zoned by inventory type
- The right mix boosts picking speed, safety compliance, and storage ROI
Racking vs Shelving: Quick Comparison
Load capacity alone won't tell you which system you're looking at. A heavy-duty bulk shelf can exceed the capacity of a light-duty rack. Four factors consistently separate the two categories.
| Factor | Racking | Shelving |
|---|---|---|
| Cost | Higher upfront cost from structural steel, engineering, and specialized installation | Lower cost, especially boltless/rivet styles that assemble without tools |
| Weight capacity | Standard selective rack typically runs 2,200 to 6,600 lbs per level; structural rack exceeds that | Boltless shelving usually stays under 1,000 lbs per shelf; heavy bulk shelving can reach 2,000 lbs per shelf |
| Construction & material | Heavy-gauge structural steel frames, beams, and wire mesh decking, anchored to floor or wall | Steel, wire, or boltless panel construction, freestanding or wall-mounted |
| Access method | Forklifts, reach trucks, or cherry pickers | Accessed by hand |
According to RMI, rack loads are typically palletized and often run 1,000 lbs or more per position. Boltless shelving usually stays under 1,000 lbs per shelf, and bin shelving averages around 50 lbs per square foot. RMI notes these are category benchmarks, not fixed rules.
That overlap matters in practice. RackUSA's own Industrial Bulk Rack Shelving line holds up to 2,000 lbs per shelf and 8,000 lbs overall across its 3- and 4-tier configurations, numbers that creep into rack territory. What actually distinguishes the categories is access method, deck design, and how the unit is engineered and load-rated, not just the number on the spec sheet.

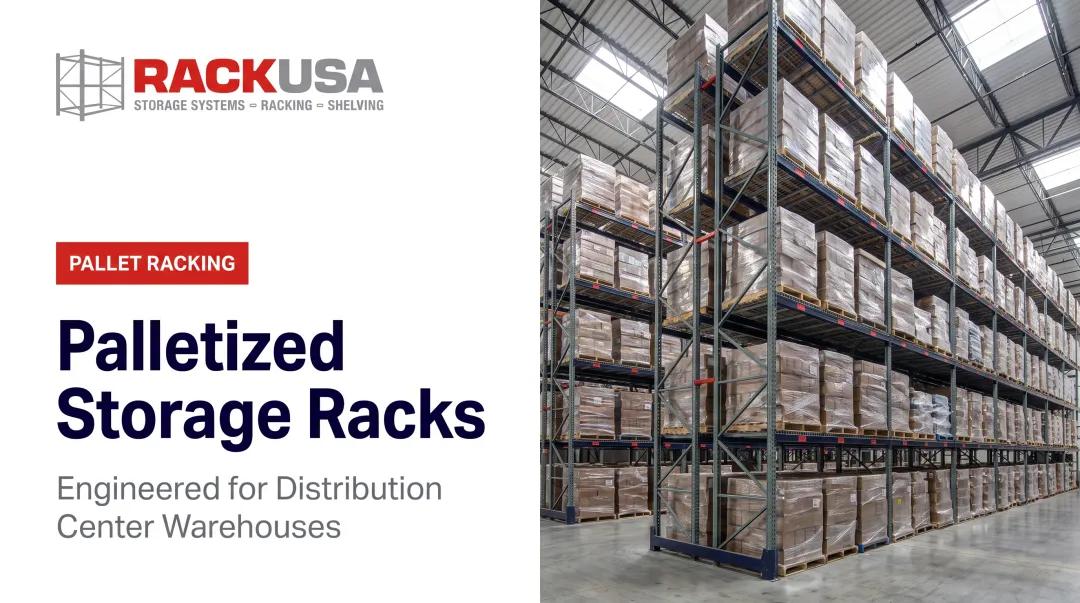

What Is Racking?
Racking is a heavy-duty structural storage system engineered to hold palletized or bulk loads. It's the backbone of large-scale warehousing, the framework that lets a distribution center stack inventory 20, 30, or 40 feet high instead of spreading it across the floor.
The operational payoff is straightforward:
- Maximizes vertical cube space by turning empty air above the floor into usable storage
- Increases storage density per square foot without expanding the building footprint
- Improves throughput when paired with the right forklift, reach truck, or cherry picker
Racking Subtypes
- Selective pallet racking (roll-formed or structural) gives direct access to every pallet position
- Drive-in/drive-through racking lets the forklift enter the structure itself for high-density LIFO or FIFO storage
- Push-back racking nests pallets 2 to 6 deep on inclined rails, LIFO access
- Pallet flow racking uses gravity rollers to automatically rotate stock FIFO
- Cantilever racking extends arms from columns to hold pipe, lumber, or other long stock
- Matador pallet shuttle systems (RackUSA) use electric shuttle carts rated for 1 to 2 tons per level in 2D or 4D layouts for maximum density
Racking only performs as engineered when the fundamentals are handled correctly. That means floor or wall anchoring at every column, a load capacity plaque with the maximum per-level and per-bay rating, and a PE-stamped structural analysis for taller or seismic-zone installs.
OSHA's general industry rule (29 CFR 1910.176) requires stored material to stay stable and secure against collapse. Rack-specific anchoring and engineering guidance come from ANSI MH16.1 and RMI. RackUSA builds seismic factoring into every racking line from the design stage and carries MHI R-Mark certification (#5190).
Use Cases of Racking
Racking dominates wherever pallets move in volume—especially where floor space is expensive or tightly controlled:
- Distribution centers and manufacturing plants moving high pallet volume
- Cold storage, where every refrigerated square foot carries a real energy cost
- Food and beverage, using pallet flow and push-back for strict FIFO rotation
- Automotive and pharma, needing mixed-SKU access or pallet-level traceability
Density gains vary by rack style, not just by the fact that it's racking. Push-back configurations, for instance, can increase storage density by up to 90% compared to standard selective racking without giving up ready access by SKU. That's the kind of number a facility manager can bring into a capital budget meeting.
What Is Shelving?
Shelving is the lighter-duty counterpart, built for goods picked one at a time, by hand, rather than moved by forklift. It shows up in warehouse pick modules, retail backrooms, and offices that need organized, accessible storage.
The core benefits:
- Faster hand-picking since there's no equipment to stage or wait for
- Easy reconfiguration, since most boltless styles snap together without tools
- Lower cost per unit of storage for small-to-medium inventory volumes
Shelving Subtypes and Trade-offs
- Steel closed/open shelving uses solid panels for enclosed or visible storage
- Rivet (boltless) shelving offers tool-free assembly with wire mesh decking, typically rated under 1,000 lbs overall
- Wire shelving trades some rigidity for visibility and airflow, useful in parts rooms where dust or moisture is a concern
- Wide-span shelving handles bulkier hand-loaded items; RackUSA's Industrial Bulk Rack Shelving reaches up to 8,000 lbs overall across 3- or 4-tier configurations
Steel gauge is the real lever behind capacity. Heavier gauge steel costs more but holds more weight. Lighter gauge keeps costs down for genuinely light loads. Match gauge to real load requirements instead of defaulting to the cheapest option.
Use Cases of Shelving
Shelving earns its keep in small-parts storage, order-picking modules, e-commerce fulfillment, parts distribution, and light manufacturing—anywhere pickers grab individual items dozens or hundreds of times a day. Retail stockrooms and gondola-style store fixtures run on the same boltless principle: quick assembly, easy reconfiguration, no forklift required.
SKU slotting—matching product placement to shelf position—can cut pick time as much as the hardware choice itself. For shelving buyers, layout matters almost as much as the shelf.
Racking vs Shelving: Which Is Better for Your Warehouse?
There's no universal answer here, but there is a reliable checklist. Before choosing a system, weigh:
- Average load weight - palletized and heavy, or loose and hand-carried?
- Item size and packaging - full pallets versus individual units or small boxes
- SKU velocity - how often each item actually gets picked
- Available floor space - vertical cube space versus footprint constraints
- Forklift access - do aisles and clear height support lift equipment?
Choose racking for bulk, palletized, or heavy inventory that moves by forklift. Choose shelving for lighter, frequently hand-picked items in smaller quantities.
Most facilities land somewhere in between. Smart layouts zone both in the same building: bulk reserve on racking, fast-moving small parts on shelving.
RackUSA's engineering team evaluates SKU count, rotation predictability, required density, and load weight on-site, then recommends racking, shelving, or a combined solution sized to the actual facility rather than a generic template. Request a facility assessment before locking in a layout.

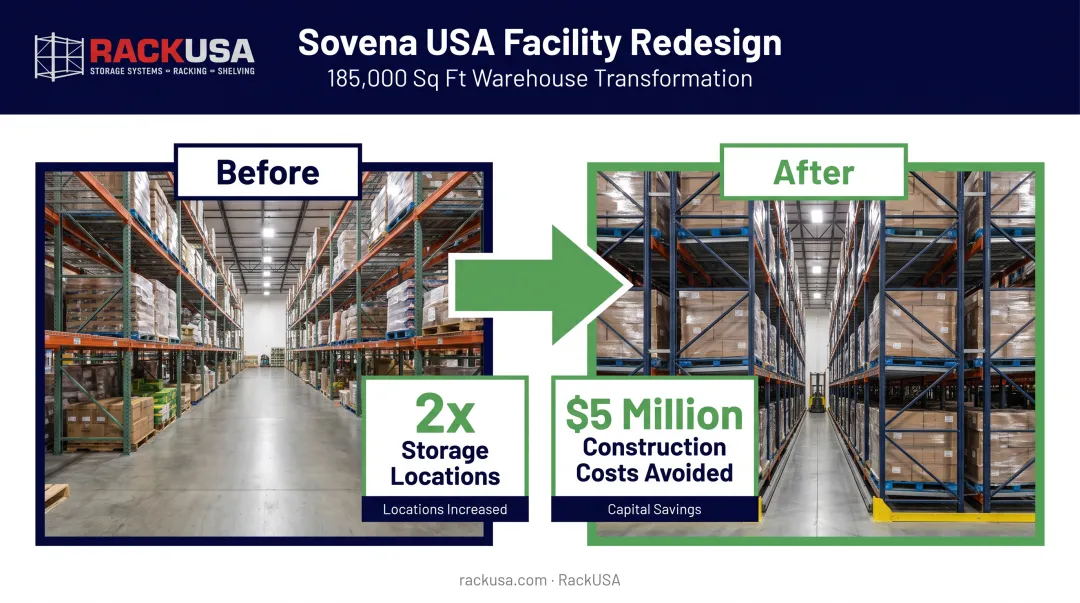

Real-World Example
Sovena USA's 185,000-square-foot facility hit a familiar wall: existing selective racking wasn't generating enough storage locations to support growth. The company reworked its layout with push-back racking and a very-narrow-aisle configuration.
According to Modern Materials Handling (2013), storage locations doubled within the same footprint. The redesign also avoided nearly $5 million in construction costs that would have been needed to expand the building.
That doesn't mean every facility will double its capacity. It's a site-specific result, not a guarantee. It does show that the right racking configuration, matched to actual SKU behavior, can solve a space problem without turning into a real estate problem.
Conclusion
There's no universal winner between racking and shelving. Racking handles bulk, palletized loads moved by forklift. Shelving serves lighter, frequently hand-picked inventory. Most operations need both, zoned to match how inventory actually moves through the building.
Get the mix right and it shows up where it counts: fewer safety incidents, better use of every square foot, and lower cost per pallet or SKU over the system's life. Get it wrong, and you're either paying for structural steel you didn't need or loading pallets onto shelving that was never rated for them.
Frequently Asked Questions
What is racking and shelving?
Racking is heavy-duty structural steel storage engineered for palletized loads, usually accessed with a forklift. Shelving is lighter-duty storage for individually handled items, accessed by hand.
What is the difference between a shelf and a ledge?
A ledge is typically a narrow, built-in protrusion—like a windowsill—not designed for organized storage. A shelf is a flat surface purpose-built to hold and organize items in commercial or industrial storage units.
What are the types of racks?
Common types include selective (direct access to every pallet), drive-in/drive-through (forklift enters the structure), and push-back (inclined rails, LIFO). Pallet flow uses gravity rollers for FIFO; cantilever uses arms for long or bulky stock.
Can racking and shelving be used together in the same warehouse?
Yes, it's standard practice. Zoning a facility with racking for bulk pallet storage and shelving for fast-moving small parts is one of the most common ways to maximize space and picking productivity.
How do I decide between racking and shelving for my facility?
Start with load weight, item size, and pick frequency. Heavy, palletized, low-frequency inventory points to racking; lighter, high-frequency, hand-picked inventory points to shelving.
What is the NFPA definition of shelf storage versus rack storage?
Under NFPA 13 (2016), shelf storage covers structures up to 30 inches deep with aisles at least 30 inches wide; deeper structures are generally treated as rack storage (NFPA 13, as cited by Fire Protection Innovations, 2017). Confirm the applicable edition and requirements with your fire protection engineer.
