Introduction
Walk into any modern distribution center and you'll see it: long lines of rollers guiding boxes from receiving docks to shipping lanes without a single person lifting a carton. Roller conveyors are one of the most widely used material handling solutions in warehouses, production lines, and fulfillment centers today.
Manual handling still slows a lot of operations down. Workers carrying boxes across a warehouse floor means slower throughput, higher labor costs, and more injury risk—especially as facilities scale to meet e-commerce demand.
In fact, 44% of respondents to a 2025 Modern Materials Handling warehouse survey said they now support e-commerce fulfillment, up from just 25% the year before (MMH, 2025).
This guide breaks down what roller conveyors are, how they work, the main types available, and how to pick the right system for your facility.
Key Takeaways
- Cut manual handling by moving product on gravity or motor-driven rollers
- Choose gravity systems to save cost; use powered options (BDLR, CDLR, MDR) for heavier loads and higher volume
- Match roller and frame materials to load weight, environment, and hygiene needs
- Size load capacity from roller diameter, bearings, and drive type—not a single fixed rating
- Design conveyors alongside racking and pick modules to improve overall facility flow
What Is a Roller Conveyor and How Does It Work?
A roller conveyor is a series of evenly spaced cylindrical rollers mounted on a frame, used to move boxes, cartons, and other rigid-bottomed loads across open floor space or between elevations. Instead of workers walking product from point A to point B, the rollers do the work.
The core purpose is straightforward:
- Reduce manual lifting and carrying between workstations
- Speed up product flow along a line or between departments
- Support accumulation, sorting, and transfer within a larger material handling system

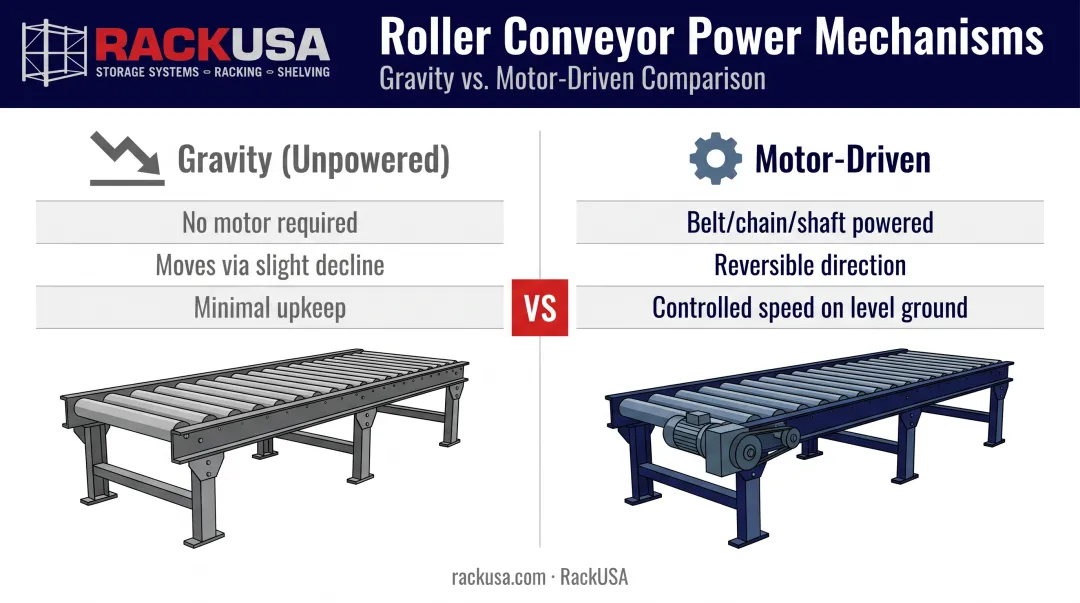

Two Ways to Power the Rollers
Roller conveyors run on one of two mechanisms:
- Gravity (unpowered): rollers spin freely, and product moves because the conveyor sits on a slight decline. No motor, no electricity.
- Motor-driven: belts, chains, or shafts rotate the rollers at a controlled speed, moving product on level ground or even uphill.
For either type to work reliably, the load needs a rigid, flat bottom in contact with at least three rollers at once. With fewer contact points, product can tip, sag between rollers, or jam the line.
Powered systems add another layer of control: motors can reverse direction, letting product move both ways along the same line. That's useful for return lanes, quality checks, or facilities running one conveyor for two directions of flow depending on the shift.
A Quick History Lesson
Roller conveyor technology isn't new. The first roller conveyor was patented in 1908 by Hymie Goddard, with rollers built around internal ball bearings (MHI Solutions Magazine).
By 1919, the automotive industry had adopted free and powered conveyor lines, and by the 1920s conveyors were a standard way to handle mass-produced goods. A century later, the same basic principle still moves most of the world's boxed freight: rollers, a frame, and either gravity or a motor.

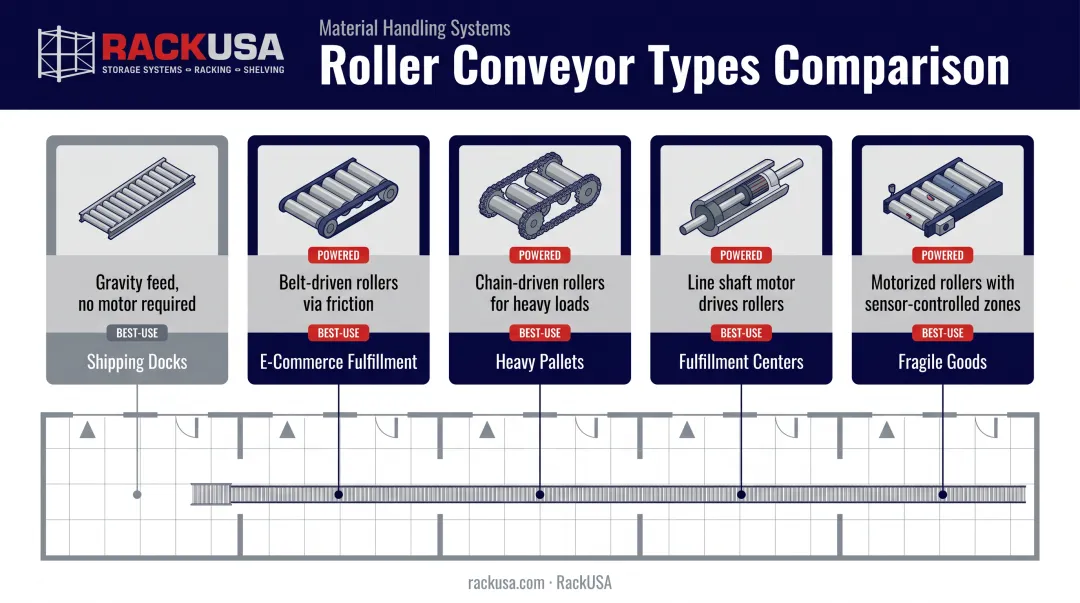

Types of Roller Conveyors
Roller conveyors fall into two broad categories: gravity (non-powered) and powered (motor-driven). Which one fits your operation depends on load weight, required speed, and how much automation you want.
Gravity Roller Conveyors
Gravity conveyors use free-rotating rollers set on a slight decline, with no motor required. Product moves purely by gravity, making this the most cost-effective and lowest-maintenance option.
Common accessories include curves, guide rails, and pop-up stops, which let facilities route product around corners or hold it in place temporarily. You'll typically see gravity conveyors in shipping and receiving areas, order-picking stations, and temporary workstation setups.
RackUSA's gravity conveyor line uses structural-steel frames and low-friction bearings, set on an adjustable 3° to 5° incline. Because the system runs on zero electrical power, maintenance stays limited to periodic bearing checks and roller cleaning, which helps facilities cut both cost and downtime.
Belt-Driven Live Roller (BDLR) Conveyors
A motorized belt runs beneath the rollers, transmitting power through friction. That setup gives BDLR conveyors precise start/stop control and gentle handling for medium-to-heavy cartons and totes that need side-loading or careful acceleration.
Because the belt drive is quieter and gentler than a chain, BDLR systems show up often in e-commerce and general warehousing where product condition matters.
Chain-Driven Roller Conveyors
Chain-driven roller conveyors (CDLR) use sprockets and a drive chain to deliver high torque straight to the rollers. That makes them the go-to choice for heavy pallets, drums, and other high-impact industrial loads that would wear out a belt quickly.
CDLR systems hold up well in tough environments: automotive plants, foundries, chemical facilities where dirt, oil, and heavy impact are routine. Most can also run in reverse, giving facilities bidirectional flow without adding a second line.
Line Shaft and Motor-Driven Roller (MDR) Conveyors
Line shaft conveyors use one continuous rotating shaft, connected to individual rollers through spools or belts, to move light-to-medium items over long distances efficiently.
Motor-driven roller (MDR) conveyors put its own small 24-volt motor in each zone. Rollers only spin when product needs to move, cutting energy use and noise compared to a continuously running shaft. This zoned, quiet accumulation has made MDR popular in e-commerce fulfillment centers, where sortation and buffering happen constantly.
Zero-Pressure (Accumulation) Roller Conveyors
Zero-pressure accumulation conveyors use sensors to stop individual roller zones the moment product arrives, preventing boxes from bumping into each other. That protection matters for fragile or high-value goods that can't take repeated contact.
Instead of one long line moving at a single speed, the conveyor breaks into independently controlled sections that release product only when the zone ahead is clear.
Key Components: Understanding Conveyor Rollers and Frames
A conveyor roller is the cylindrical component fitted with bearings that rotates within the frame, carrying goods forward as it turns. The material it's made from, and the bearing inside it, determine how much weight it handles, how long it lasts, and where it can be installed.
| Roller Material | Best Suited For |
|---|---|
| Steel / stainless steel | Heavy-duty loads, washdown and hygiene-sensitive environments |
| Plastic / nylon | Lightweight products, corrosion-prone or wet environments |
| Rubber-coated | Products needing extra grip or cushioning during transport |
Stainless steel resists corrosion better than standard steel, making it the common pick for food, pharmaceutical, or frequently washed-down operations. Plastic and nylon rollers weigh less and hold up against moisture and mild chemicals, though they generally carry less weight than steel.
Rubber coatings add traction and a bit of cushioning, useful for protecting delicate product surfaces or preventing slippage on an incline.
Frame choices:
- Steel frames offer higher load capacity and are the standard for heavy industrial use
- Aluminum frames weigh less, which helps with portable or frequently reconfigured sections
Bearing choices:
- Non-precision bearings cost less and work fine on slow, light-duty gravity lines
- Semi-precision and ABEC-rated bearings run quieter and last longer under higher speeds
Support spacing plays a role too. The closer the frame's support points sit together, the more weight the structure carries per linear foot: an important detail on long runs or heavier unit loads. A steel roller with a precision bearing on a properly spaced steel frame will outlast a poorly matched setup by years, even under similar load conditions.
Benefits of Roller Conveyor Systems
Fewer Injuries, Clearer Floors
Manual lifting and carrying are two of the biggest contributors to workplace strain injuries. OSHA notes that fitting the job to the worker — rather than the other way around — reduces muscle fatigue and lowers the number and severity of musculoskeletal disorders (OSHA). Roller conveyors remove repetitive carrying from the job and keep product off the floor, so aisles stay clearer and safer to move through.
Consistent Throughput, Lower Long-Term Cost
Compared with belt or overhead systems, roller conveyors use fewer moving parts. That simpler design supports reliable flow and keeps upkeep predictable:
- Steady, consistent product flow shift after shift
- Lower long-term maintenance costs than more complex handling equipment
- Payback over years of use through lower repair needs, not constant part replacement
Built to Grow With the Facility
Because roller conveyor sections are modular, facilities can add curves, extend runs, or reconfigure sections as operations change. That flexibility matters when a warehouse adds a new pick zone or expands capacity without ripping out the entire line.
Sections bolt together rather than requiring a full rebuild, so integration with existing racking or pick-module layouts stays straightforward.
Common Applications and Industries
Roller conveyors show up across nearly every industry that moves physical product:
- E-commerce and distribution fulfillment — sorting, routing, and accumulating packages before they reach the shipping dock
- Manufacturing and assembly — transferring parts and sub-assemblies between workstations
- Food and beverage processing — moving product through packaging with tighter roller spacing to reduce breakage
- Airport baggage handling — routing luggage through sorting and screening areas
- Automotive and metalworking — carrying heavy components between welding, assembly, and finishing stations
The application usually dictates which roller type makes sense. A food processing line calls for hygienic, easy-to-clean rollers. An automotive plant moving heavy pallets needs the torque and durability of a chain-driven system built for a harsher, oilier environment.
Roller conveyors rarely operate in isolation. Most facilities connect them directly to racking, mezzanines, and pick modules so product keeps moving from storage to shipping without a break.
A line that dead-ends at a wall of pallet rack instead of feeding into it cleanly creates a bottleneck no amount of roller speed can fix.

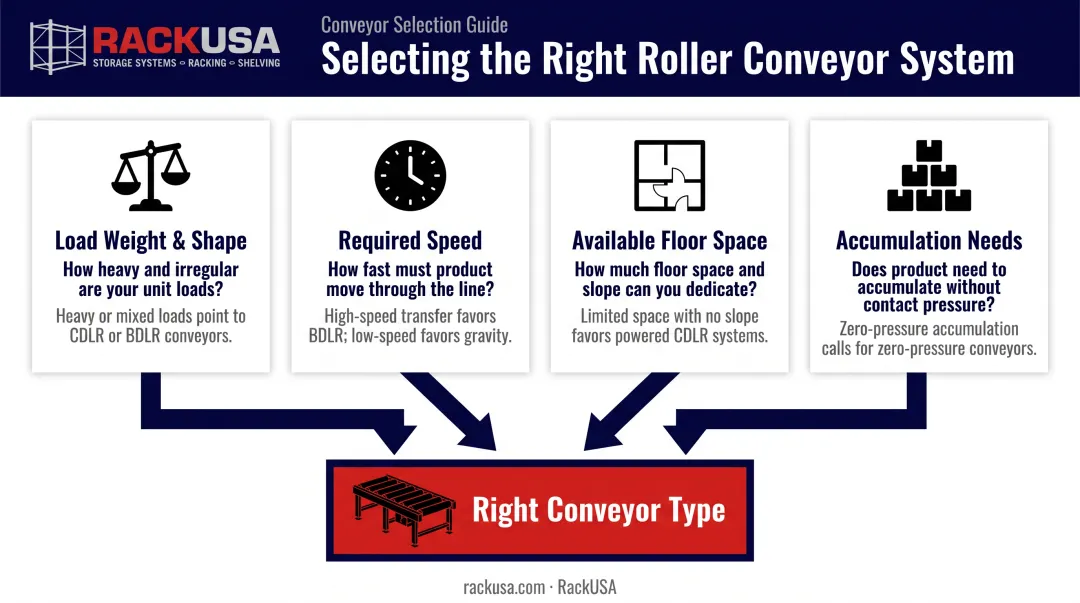

Choosing the Right Roller Conveyor for Your Facility
Picking the right system comes down to a handful of core variables. Get these wrong and you'll either overspend on capability you don't need or underspec a line that jams within a year.
Start with the basics:
- Load weight and shape — heavier or unstable loads may rule out gravity entirely and point toward chain-driven or MDR systems
- Required speed — how many units per hour need to move at peak volume
- Available floor space — straight runs, curves, and transfer points all eat into usable floor area
- Accumulation needs — fragile or high-value goods may require zero-pressure zones to prevent product-to-product contact
Temperature, moisture, and washdown requirements also influence material choice. A dry warehouse can use ordinary steel components. Cold-storage or wet-washdown lines need corrosion-resistant materials and sealed bearings so parts don't seize or rust early.
Those specs still have to work inside the rest of the building. A conveyor that fits the load but fights the layout will slow the whole operation.
Don't Skip the Engineering Step
A conveyor system rarely works in isolation. It has to connect cleanly with racking, mezzanines, and pick modules or it becomes a bottleneck. That's where professional layout design earns its keep.
RackUSA's turnkey design, engineering, and installation services fold gravity conveyor planning directly into the broader storage layout. During the site survey, the team evaluates:
- Product weight, dimensions, and required incline (typically 3° to 5° for gravity systems)
- Travel distance and available slope within the existing facility footprint
- Connections to racking, mezzanines, pick modules, and packing lines
Because the conveyor and racking system are designed together rather than as separate afterthoughts, facilities avoid the awkward retrofits that come from bolting a conveyor onto a layout that wasn't built to receive it.
Frequently Asked Questions
What is a roller conveyor?
A roller conveyor is a series of cylindrical rollers mounted on a frame that move boxes, cartons, and other rigid-bottomed materials across a facility. It can run on gravity or be powered by a motor, depending on the application.
What is the purpose of a roller conveyor?
It reduces manual handling, speeds up product flow between workstations, and supports accumulation and sorting tasks. This cuts labor costs and lowers the risk of lifting-related injuries.
What is a conveyor roller?
A conveyor roller is the cylindrical component fitted with bearings that rotates within the conveyor frame, carrying goods forward as product moves along the line.
How do roller conveyors work?
Gravity conveyors rely on a slight incline and free-spinning rollers to move product with no power source. Motorized systems use belts, chains, or shafts to rotate rollers at a controlled speed, even on level ground.
What are the different types of roller conveyors?
The main types are gravity, belt-driven live roller (BDLR), chain-driven (CDLR), line shaft, motor-driven roller (MDR), and zero-pressure accumulation conveyors. Each suits different load weights, speeds, and automation levels.
How much weight can a roller conveyor hold?
Load capacity depends on roller diameter, frame material, bearing type, and drive system. There's no single universal number. A conveyor specialist can confirm exact ratings based on your specific product and layout.
