Warehouse Racking Systems

Costs vary widely based on system type, load capacity, and configuration—selective racking is typically the most economical, while high-density systems like drive-in, push-back, or rack-supported buildings cost more due to engineering and steel requirements. RackUSA provides custom quotes after evaluating your warehouse layout, load types, and clear height.

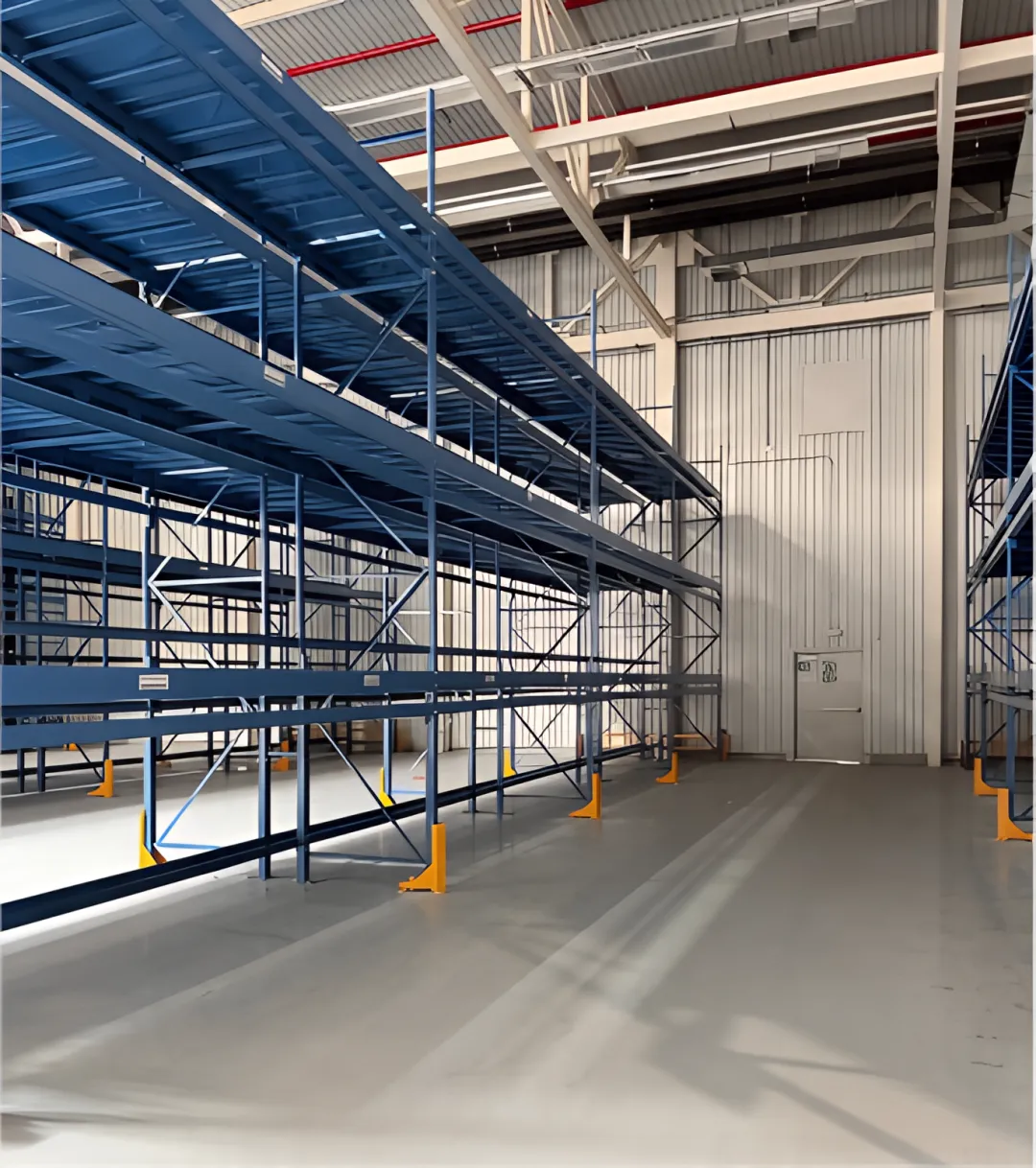

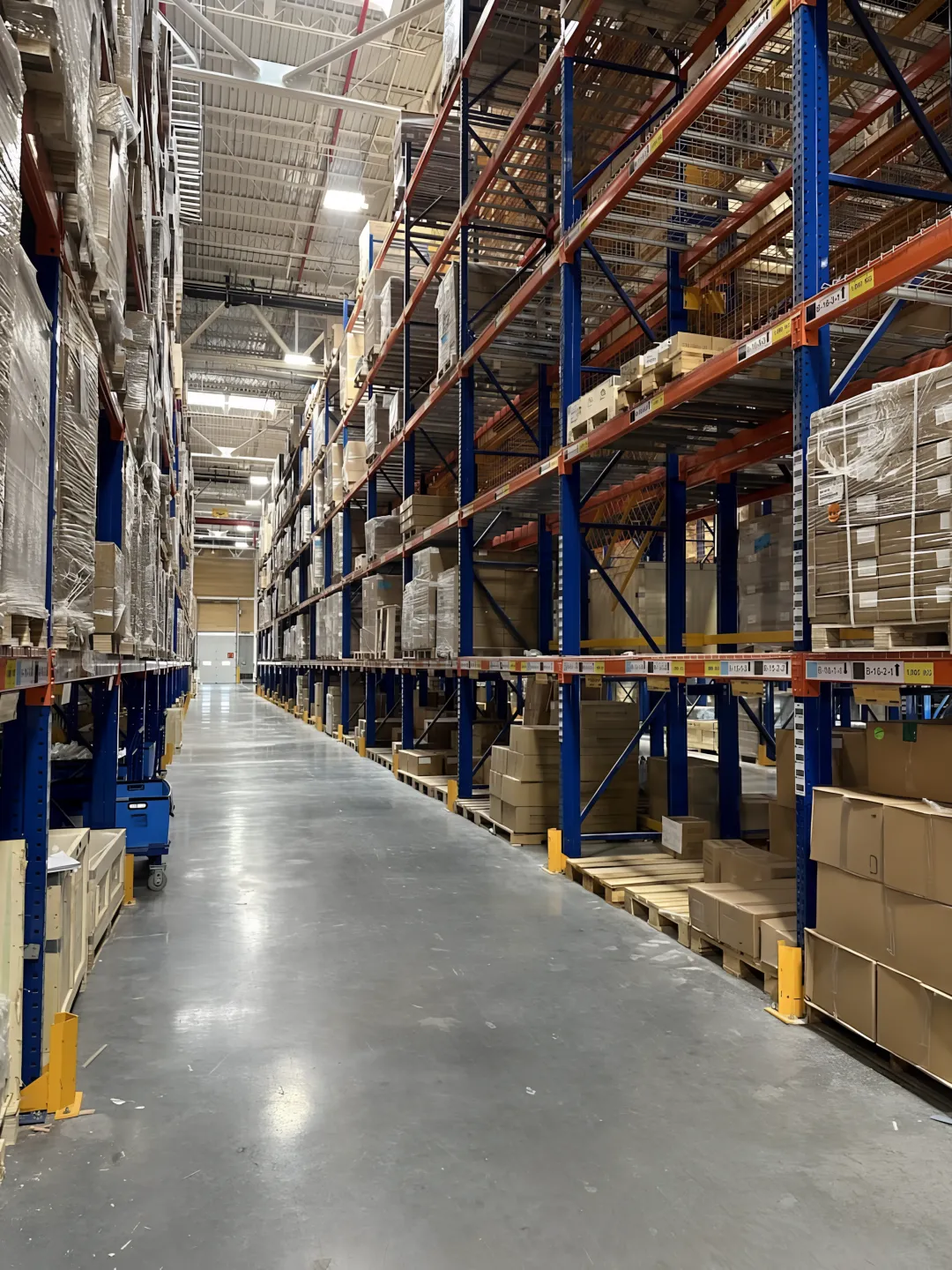

Selective racking provides direct access to every pallet via standard aisles, making it ideal for high-SKU, high-turnover operations. Drive-in racking allows forklifts to enter the structure and stack pallets multiple deep, roughly doubling storage density but limiting access to LIFO retrieval—best suited for bulk storage of homogeneous SKUs.

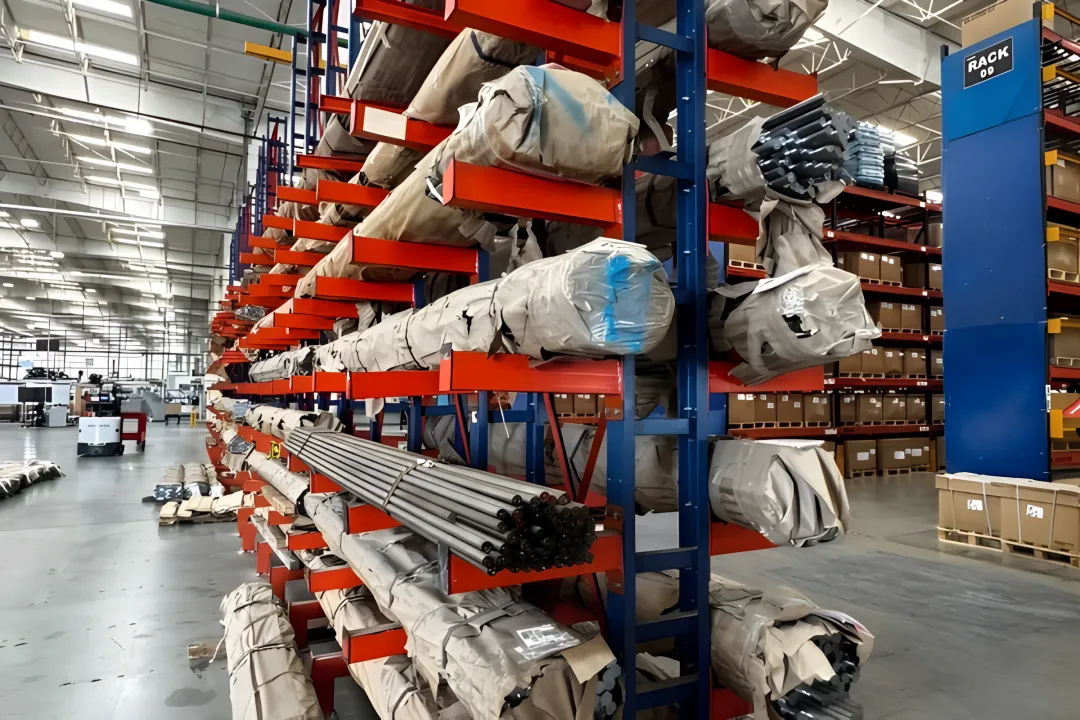

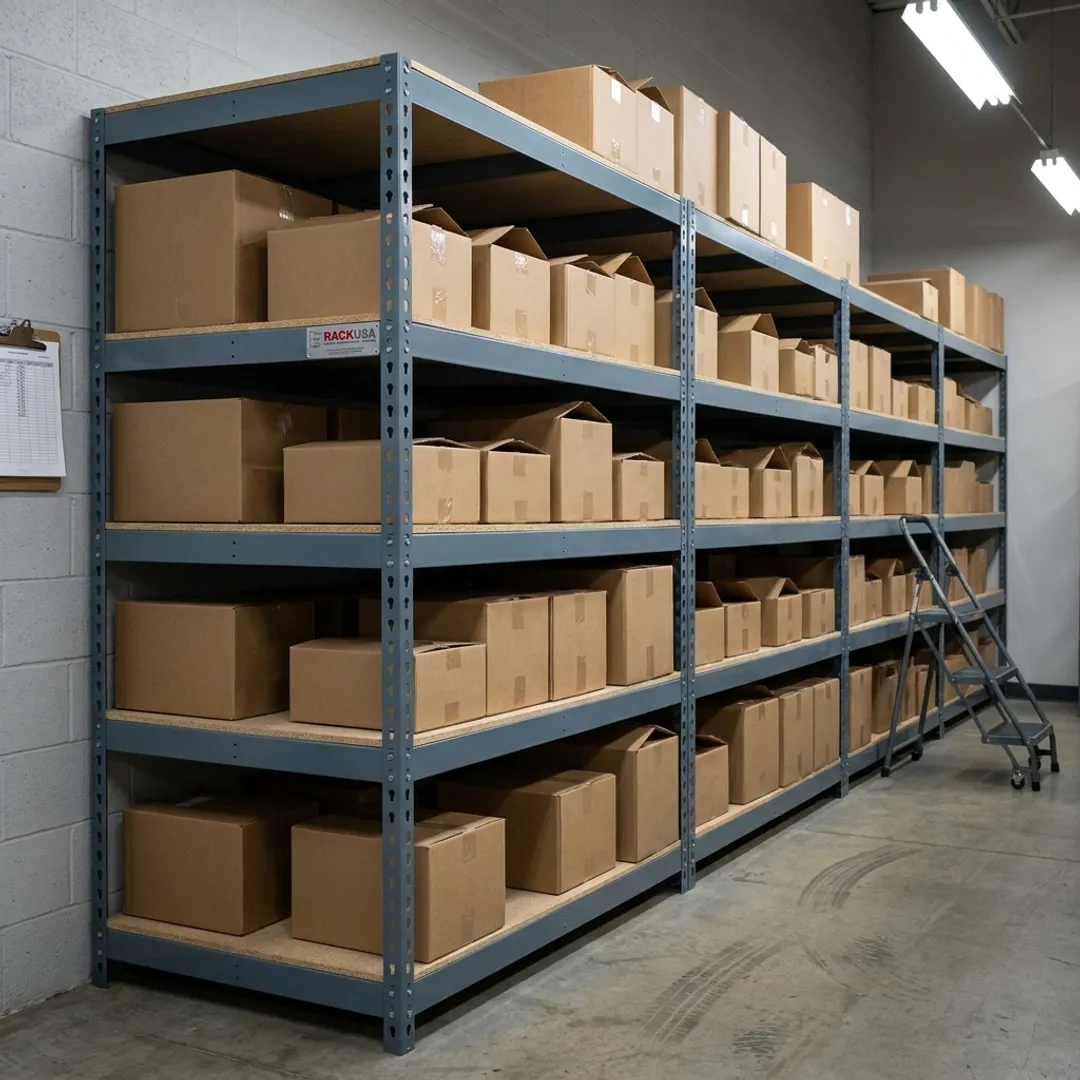

Load capacity depends on the system—RackUSA's Industrial Bulk Rack Shelving supports up to 8,000 lbs overall (2,000 lbs per shelf), while structural and selective pallet racks can be engineered to support several tons per level. Cantilever arms range from 500 kg to multiple tons each, depending on configuration.

Recommended accessories include wire mesh decking, crossbar pallet supports, column and corner protectors, end-row guards, and rack load capacity signage. These components prevent falling loads, distribute weight evenly across beams, support fire sprinkler compliance, and reduce workplace hazards in high-traffic forklift areas.

Yes. RackUSA engineers racking with specialized coatings, seismic-rated structural design, and configurations suited to low-temperature, high-humidity environments. Selective, structural, drive-in, and push-back systems can all be adapted for cold storage and refrigerated distribution facilities on a project-by-project basis.

Look for RMI R-Mark Certification (verifying ANSI MH16.1 compliance for cold-formed steel racking), MHI membership, seismic safety certification for high-risk regions, and local building code compliance such as City of Los Angeles DBS approval. These certifications confirm structural safety and engineering integrity.
