A 2024 Logistics Management survey of 108 warehouse and logistics professionals found storage was the most congested area for 37% of respondents, while average peak space utilization dropped to 73.2%, down from 78.5% the year before. That's shrinking efficiency, not growing it.
This guide breaks down the zones, layout types, and racking configurations that drive efficiency, plus a step-by-step process and best practices for building — or rebuilding — a layout that actually works.
Key Takeaways
- Storage congestion and declining space utilization are measurable problems with real cost impact
- Four pillars drive layout success: flow, accessibility, space utilization, and safety
- Racking choice (selective vs. high-density) is the single biggest driver of usable capacity
- A tested, phased optimization process outperforms ad-hoc layout changes
- Vertical solutions let you scale storage without expanding your building's footprint
Why Warehouse Layout Optimization Matters

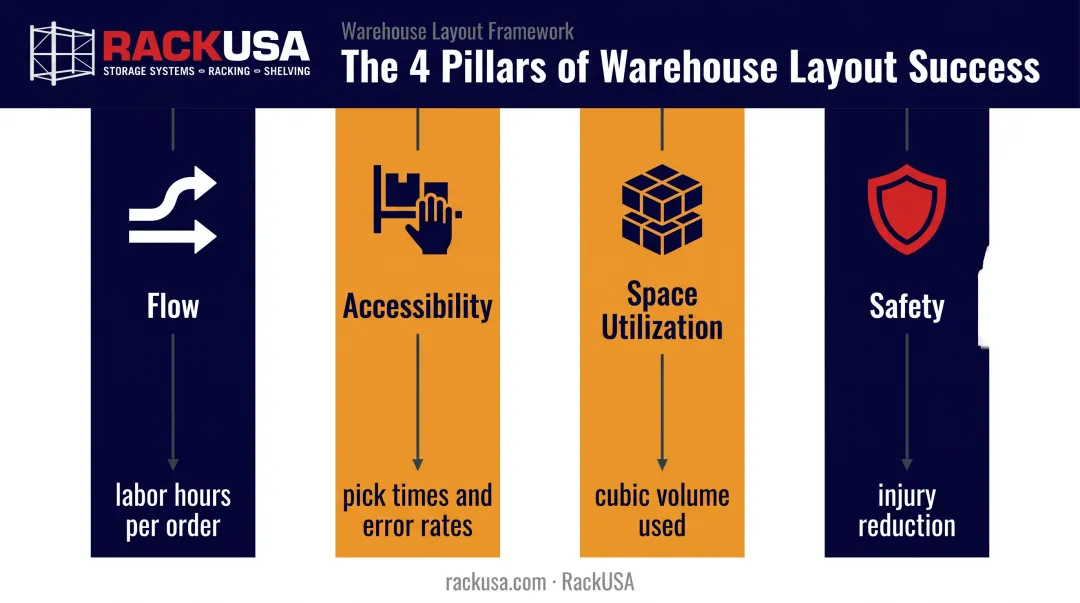

Good layout design rests on four pillars, and each one connects to a business outcome you can actually measure.
- Flow — how smoothly product moves from dock to storage to shipping, directly affecting labor hours per order
- Accessibility — how easily workers and equipment reach inventory, which shapes pick times and error rates
- Space utilization — how much of your cubic volume actually holds product versus sitting empty
- Safety — how well the layout protects workers and equipment from collisions, falls, and strain injuries
That last pillar deserves more attention than it usually gets. The Bureau of Labor Statistics recorded 4.8 recordable injury and illness cases per 100 full-time warehousing and storage workers in 2024. OSHA points to reaching, bending, lifting, and repetitive motion as the main drivers of these injuries, all of which are layout decisions in disguise.
Placing high-volume items at standing elbow height and heavier loads on lower shelves is a documented way to cut strain exposure.
Scalability is another measurable payoff. A well-optimized layout lets a growing operation increase throughput and storage density without signing a new lease or breaking ground on an addition. Vertical space, better slotting, and denser racking configurations often solve the "we need more room" problem faster than a real estate broker can.
Core Components of an Efficient Warehouse Layout

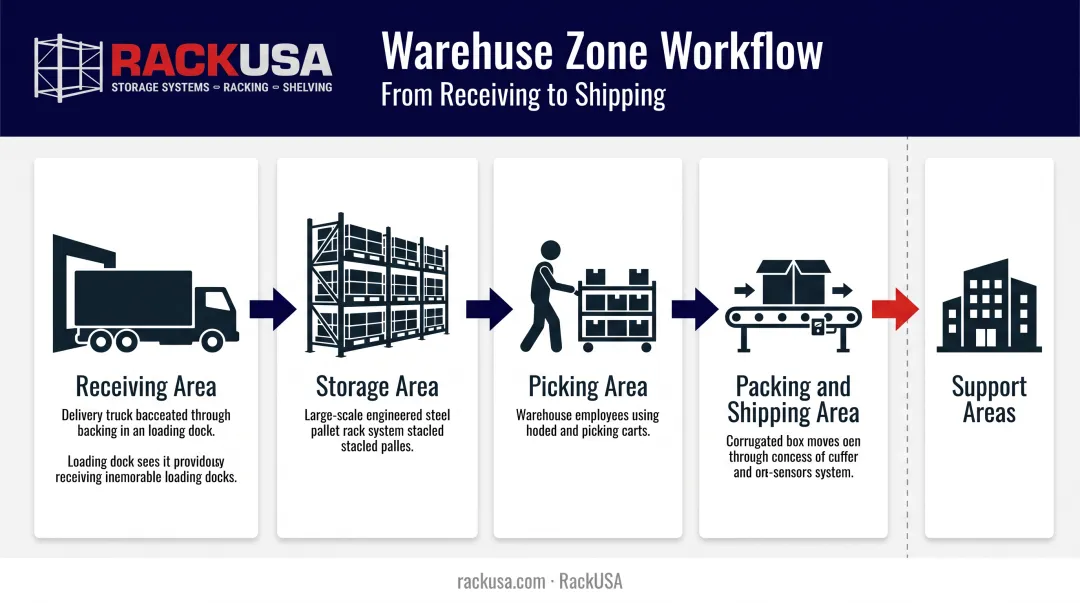

Every efficient warehouse breaks down into five functional zones. Get the relationship between them wrong, and no amount of racking will fix it.
Receiving Area
Dock doors, staging space, and inspection areas should sit directly adjacent to storage. If inbound product has to travel far before it reaches a shelf, you've built a bottleneck into your intake process on day one.
Storage Area
This is where the racking or shelving system you choose becomes the biggest lever for space utilization. Selective racking gives fast, flexible access to every pallet but uses more floor space. High-density options like drive-in or pallet flow pack more product per square foot but trade off some accessibility.
Match the system to ceiling height, load profile, and SKU velocity—not a generic template. A manufacturer with a full racking range, such as RackUSA, can align selective, drive-in, push-back, or flow systems to those constraints and your budget.
Picking Area
Batch picking and zone picking each suit different order profiles. What matters most is slotting: fast-moving SKUs belong near packing stations, not buried in the back forty. Keep pick paths short and one-directional so travel time does not erase the gains from better racking upstream.
Packing and Shipping Area
Workstation layout, conveyor access, and staging lanes need to keep outbound flow moving without backups at the dock. Size pack stations and staging for peak order waves, and leave clear handoff space between pick drop-off and trailer loading.
Support Areas
Offices, break rooms, and restrooms should sit off the main traffic paths. Separating pedestrian routes from forklift aisles cuts collision risk and keeps material flow uninterrupted.
Key Factors That Shape Your Warehouse Layout
No two warehouses should copy the same blueprint. Several variables dictate what actually works for your facility.
- Product characteristics — size, weight, perishability, and hazard classification determine storage method and where zoning boundaries need to sit
- Inventory volume, SKU count, and turnover rate — these decide how much space each zone deserves and which picking method fits your order profile
- Building characteristics and equipment — ceiling height, column spacing, floor load capacity, and whether you're running forklifts, AMRs, or conveyors through the aisles
- Safety and regulatory compliance — OSHA requires aisles to stay clear and unobstructed under 29 CFR 1910.176, and exit routes must remain at least 28 inches wide at all points
In seismic-prone regions, structural load requirements for racking add another constraint. Skip the analysis and you risk failed inspections or rack failure during a seismic event.
Warehouse Layout Types and Racking Configurations to Consider
Common Floor Plan Shapes
Three floor plan shapes cover most warehouse operations:
- U-shaped layout — receiving and shipping docks sit adjacent to each other. Works well for smaller operations that need tighter control over a compact footprint.
- I-shaped (throughput) layout — a straight-line flow from dock to dock. Best for high-volume or cross-docking operations where speed matters more than flexibility.
- L-shaped and zone layouts — separate inbound and outbound flow, allowing dedicated zones for hazardous materials or specialized handling requirements.
Racking and Storage System Options
Once you've picked a floor plan, racking choice determines how much of that plan actually converts into usable capacity. According to RMI's comparison of selectivity versus density, selective racking gives direct access to every pallet but requires more floor space to do it, while denser systems trade some access for lane depth.
| Racking Type | Accessibility | Density | Best Fit |
|---|---|---|---|
| Selective | High — every pallet direct-access | Lowest | Many SKUs, mixed rotation |
| Drive-in / drive-through | Low — lane-based only | Up to 2× selective | Homogeneous, low-rotation SKUs |
| Push-back | Moderate — reference-level access | Up to ~90% more than selective | Medium-rotation, consolidated batches |
| Pallet flow | Moderate-high — front pallet always open | Strong FIFO depth | Perishables, strict date control |
For operations outgrowing their footprint, dynamic systems add vertical density without expanding the building pad:
- Mezzanines — double or triple usable floor area when ceiling height is available, with no civil engineering work
- Automated pallet shuttles — electric shuttles run inside rack channels so forklifts never enter the structure
- Rack-supported buildings — the racking becomes the building frame, supporting structures over 30 meters (about 100 feet) on a minimal ground footprint
Step-by-Step Process to Optimize Your Warehouse Layout
Optimizing a warehouse layout is a sequence of decisions, not a one-time fix. Skipping steps is how facilities end up redoing work within a year.

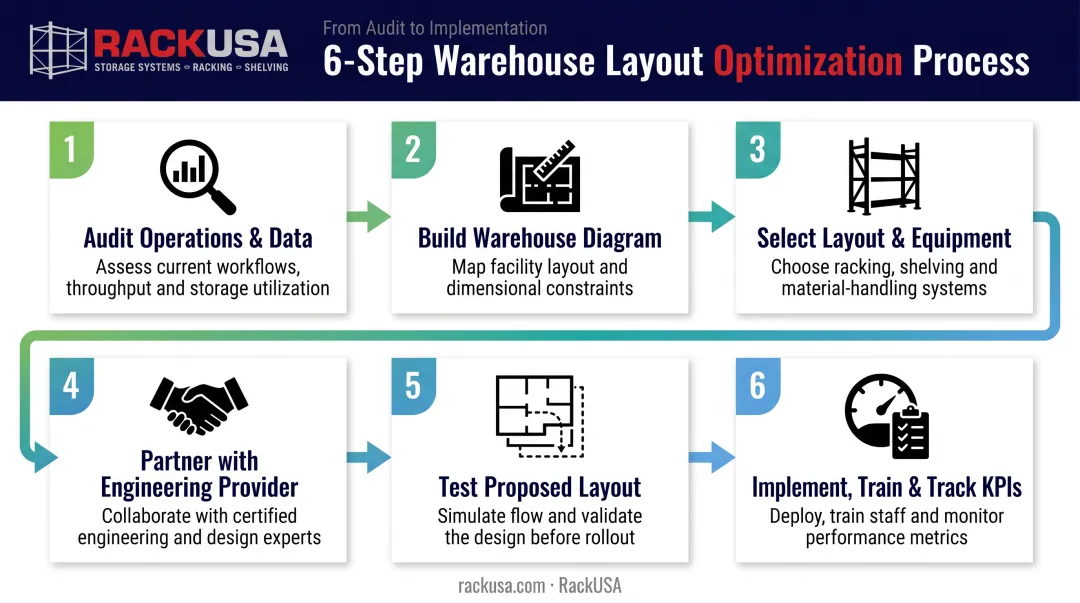

- Audit current operations and data. Map SKU velocity, order profiles, and traffic patterns with heatmaps or a time-and-motion study. Order picking drives roughly 55% of warehouse operating cost, and travel alone consumes about 55% of picking time, per Georgia Tech warehouse engineering research.
- Build an accurate warehouse diagram. Capture total cubic volume, ceiling height, column placement, and existing obstructions. Guesswork here gets expensive fast.
- Select layout type and storage equipment. Match racking, shelving, or automated storage and retrieval systems to the data gathered in steps one and two, not to what looked good in a catalog.
- Partner with a storage systems engineering provider. Structural and seismic analysis, PE-stamped drawings, and permitting support all belong here. RackUSA, with more than 50 years of cross-border experience across the U.S., Mexico, and Central America, offers this exact combination as a bundled service from design through installation, rather than a patchwork of separate vendors.
- Test the proposed layout before committing. Mock-ups or simulations catch aisle clearance issues and picking bottlenecks while they're still cheap to fix.
- Implement, train, and track KPIs. Pick accuracy, travel time, and space utilization should be reviewed on an ongoing basis, not checked once and forgotten.
Warehouse Layout Best Practices and Common Mistakes to Avoid
A few habits separate warehouses that stay efficient from ones that slowly degrade.
Best practices:
- Maximize vertical space before requesting more floor space
- Standardize labeling and signage so new hires and temp workers ramp up faster
- Design with seasonal flexibility and future growth in mind, not just current volume
- Use a WMS with barcode or RFID scanning and layout simulation to refine slotting as demand shifts (93% of warehouses surveyed in 2024 already run a WMS)
Common mistakes:
- Overcrowded aisles that violate clearance requirements and slow every forklift pass
- Poor slotting that leaves your fastest-moving SKUs buried far from packing stations
- Layouts with zero room for growth or safety clearances, forcing a costly redesign within a year or two
Frequently Asked Questions
How can I optimize my warehouse layout?
Start by auditing your current workflow and SKU data to find bottlenecks. Then choose a layout shape and racking configuration that matches your product mix, and use technology to continuously re-slot as demand changes.
What are the 5S and 7S rules in warehousing?
5S stands for Sort, Set in Order, Shine, Standardize, and Sustain: a framework for a clean, organized, safe workspace. 7S adds Safety and Spirit (or Satisfaction), extending the discipline into a fuller operational culture.
What is the most efficient warehouse layout shape?
Efficiency depends on your operation type, but U-shaped and I-shaped layouts are the most commonly cited for balancing flow and space use. U-shaped suits smaller, controlled operations; I-shaped fits high-volume, cross-docking flows.
How much space should be allocated for storage vs. aisles?
No single percentage fits every facility; allocation varies by equipment and racking density. Double-deep storage can fit around 41% more pallet positions than single-deep in the same footprint, though you lose direct access to every position.
How often should a warehouse layout be reviewed or re-slotted?
Review slotting whenever seasonal demand shifts, KPIs drift, or inventory volume changes materially. Skip a fixed annual cadence; let frequency follow your actual demand patterns instead.
What racking system is best for high-density storage?
Drive-in racking delivers the highest manual density for homogeneous, low-rotation SKUs. Push-back balances density with lane-level access for medium-rotation goods, while pallet shuttle systems add automation for the highest overall density and throughput.
