E-commerce isn't slowing down either. US e-commerce sales hit 23.2% of total retail in Q3 2024, and CBRE projects that share climbing to 25% by the end of 2025. More orders, more SKUs, more pressure on every square foot of your facility.
Warehouse layout optimization means arranging storage, workflow zones, and traffic paths to minimize wasted movement and maximize space. It's no longer a one-time project — it's an ongoing discipline. Here are 12 tips covering analysis, storage, technology, and safety.
Key Takeaways
- Optimized layouts reduce travel time, boost picking accuracy, and increase storage density
- Match U, I, or L-shaped flow design to your facility size and order profile
- High-density storage, picking tech, and safety practices lock in efficiency gains
- Regular audits and growth planning keep layouts effective as demand shifts
Why Warehouse Layout Optimization Matters
A poorly planned layout creates bottlenecks at receiving docks, mis-picks during order fulfillment, and safety hazards in cramped aisles. Since picking already consumes the majority of labor hours, even small inefficiencies in travel distance compound fast across thousands of orders.
Common triggers that signal it's time to optimize:
- Adding new SKUs or product lines that don't fit existing zones
- Seasonal demand spikes that overwhelm current capacity
- Outgrowing your building footprint
- Rising mis-pick rates or slower fulfillment times
- New automation or storage equipment that changes workflow
Most layouts fall into three baseline flow types: U-shaped, I-shaped, and L-shaped. Each one shapes how goods move from receiving to shipping, and we'll cover all three later in this article.
Tips 1-4: Analyze and Plan Your Layout
Tip 1: Audit Current Performance
Before moving a single rack, measure what's actually happening. Track order accuracy, pick rate, dock-to-stock time, and space utilization. A warehouse management system (WMS) makes this data collection far easier than manual tracking.
WERC's benchmarking framework recommends comparing your numbers against similar operations, not generic industry averages, since facility size and product mix vary widely.
Tip 2: Study Product Characteristics
Group inventory by:
- Turnover rate: fast movers versus slow movers
- Size and weight: bulky items need different handling
- Special requirements: hazardous materials, perishables, temperature control
This grouping directly informs where each product category belongs in your facility.
Tip 3: Map Your Workflow
Trace the physical path goods take from receiving through shipping. Look for congestion points, crossed paths, or unnecessary backtracking. Inbound Logistics notes that mapping this flow before making changes prevents costly rework later.
Tip 4: Define Functional Zones
Label distinct areas for receiving, storage, picking, packing, shipping, and returns. Clear boundaries prevent overlap and confusion, especially as headcount grows or shifts change.
Tips 5-8: Optimize Storage and Space Utilization

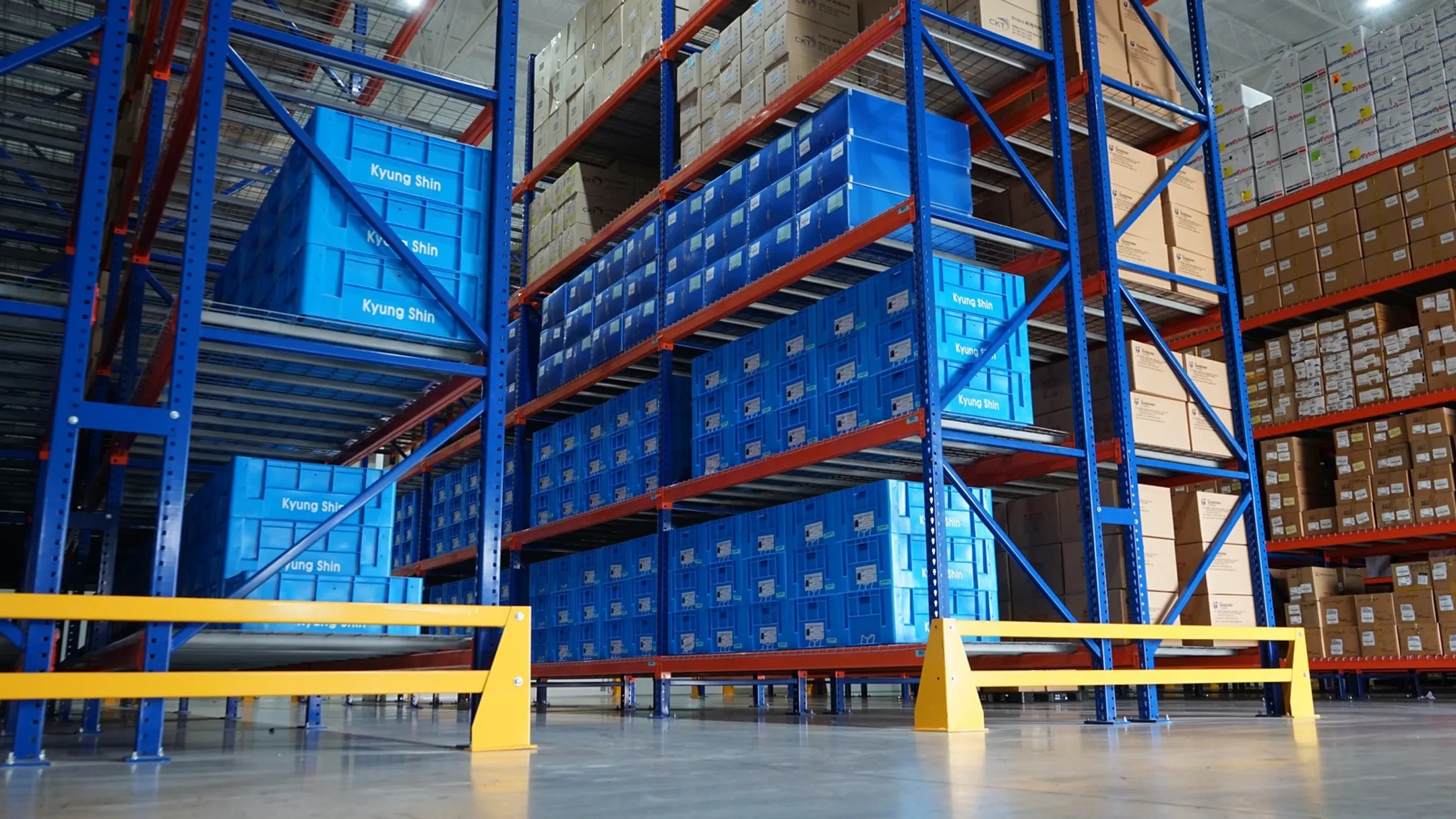

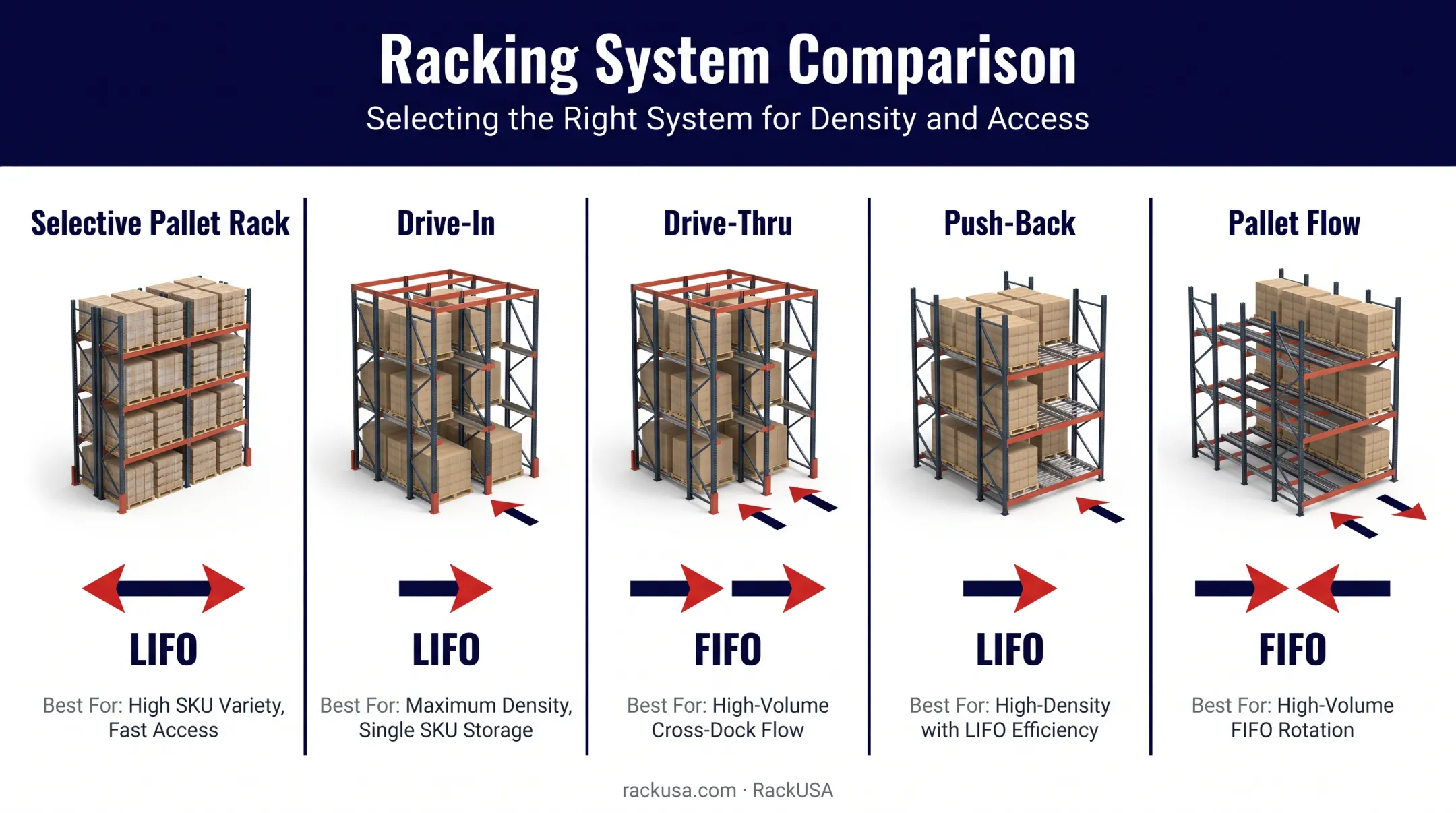

Tip 5: Select the Right Racking System
Not every rack type fits every operation. According to RMI's rack safety guidance, the tradeoff is selectivity versus density:
| System | Access | Best For |
|---|---|---|
| Selective pallet rack | Direct access to every pallet | High SKU variety, frequent turnover |
| Drive-in | Single-entry, LIFO | Dense, homogeneous inventory |
| Drive-thru | Entry/exit opposite sides, FIFO | Date-sensitive rotation |
| Push-back | Nested carts, LIFO | Multiple pallets per SKU |
| Pallet flow | Gravity lanes, FIFO | High-volume, rotation-sensitive SKUs |
RackUSA manufactures across these categories, including roll-formed and structural selective racks (rated for 1–3 tons per level on standard configurations), drive-in/drive-thru systems, push-back racking, and pallet-flow racking. Matching rack style to SKU behavior beats forcing inventory into a mismatched system.

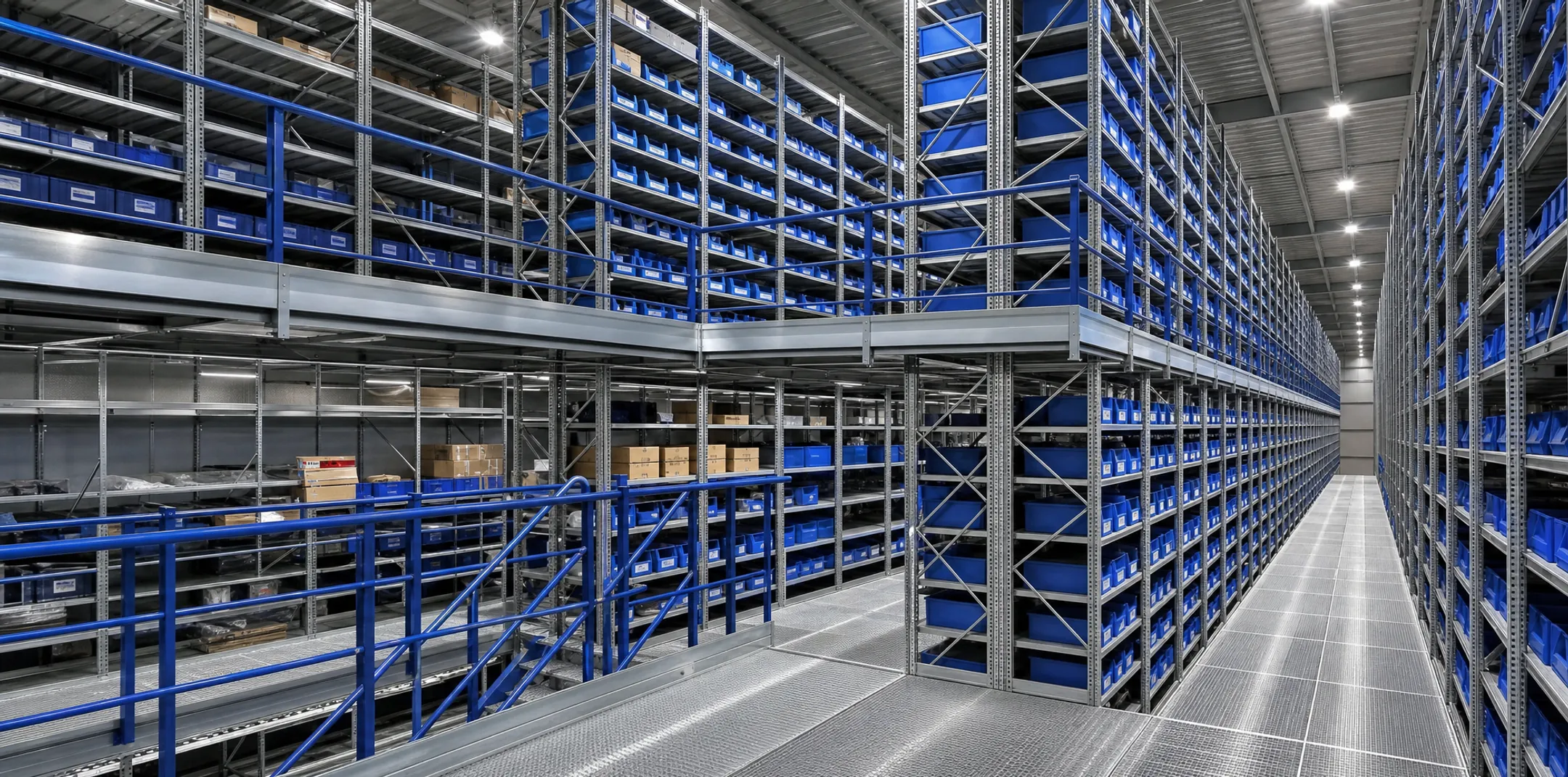

Tip 6: Maximize Vertical Space
Going up costs less than expanding out. Mezzanines and multi-tier shelving can double or triple usable floor area without touching the building's footprint. Capacity options include:
- Boltless rivet shelving rated up to 1,000 pounds overall
- Heavy-duty bulk rack shelving carrying up to 8,000 pounds per unit
Tip 7: Slot Inventory Strategically
Place your highest-velocity items closest to packing and shipping. This single change often delivers the biggest reduction in travel distance across the whole operation.
Strategic slotting works best when the layout supports it. For larger overhauls, RackUSA's engineering team can assess seismic zone, structural load, and available space on site, then design a layout matched to your budget and operational needs.
Tip 8: Plan for Future Growth
Reserve flexible space now for new SKUs, seasonal overflow, or a future storage system upgrade. Retrofitting a cramped layout later almost always costs more than building in flexibility upfront.
Tips 9-12: Leverage Technology and Prioritize Safety
Tip 9: Implement a WMS
A warehouse management system (WMS) guides picking paths, automates slotting decisions, and tracks inventory in real time. Modern Materials Handling notes that configurable workflow screens and accurate location data are what make pick-path logic actually work on the floor.

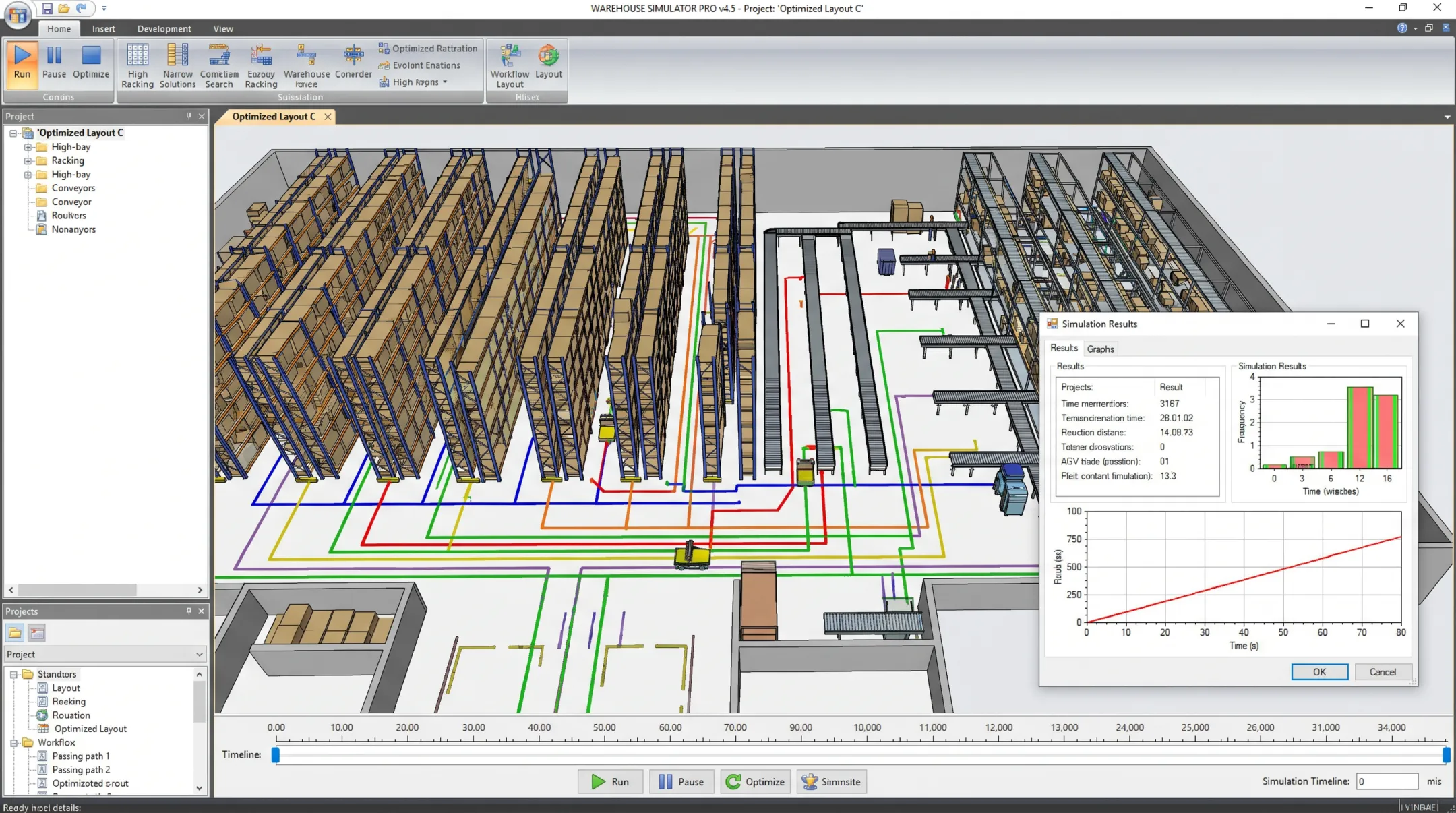

Tip 10: Model Before You Move
Digital simulation or 2D/3D layout modeling lets you test workflow changes before physical implementation. This catches bottlenecks on screen instead of on the warehouse floor, where mistakes cost far more to fix.
Tip 11: Improve Accessibility
Clear signage, wide enough aisles, and organized labeling all speed up picking and cut errors. Workers shouldn't have to guess where a SKU lives or squeeze past another cart to reach it.
Tip 12: Build Safety Into the Layout

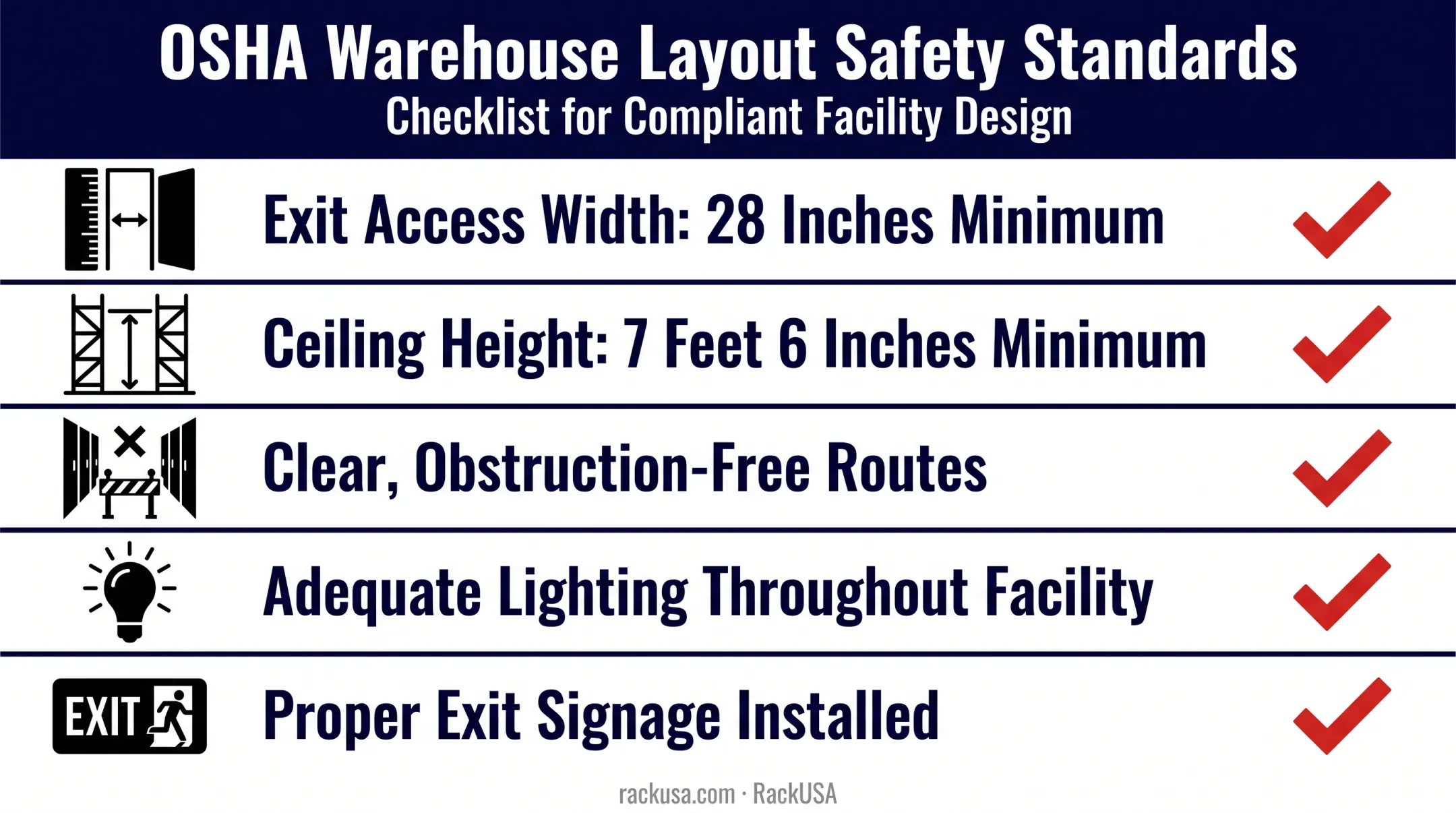

OSHA sets clear layout minimums for exit routes:
- Exit access at least 28 inches wide at all points
- Ceilings at least 7 feet 6 inches high along exit routes
- Routes kept completely clear of obstruction
- Lighting that meets minimum standards
- Proper exit signage
Ongoing rack inspections matter too. Periodic checks catch structural damage, bent frames, and anchor issues before they become safety incidents. Build this habit into your annual maintenance calendar.

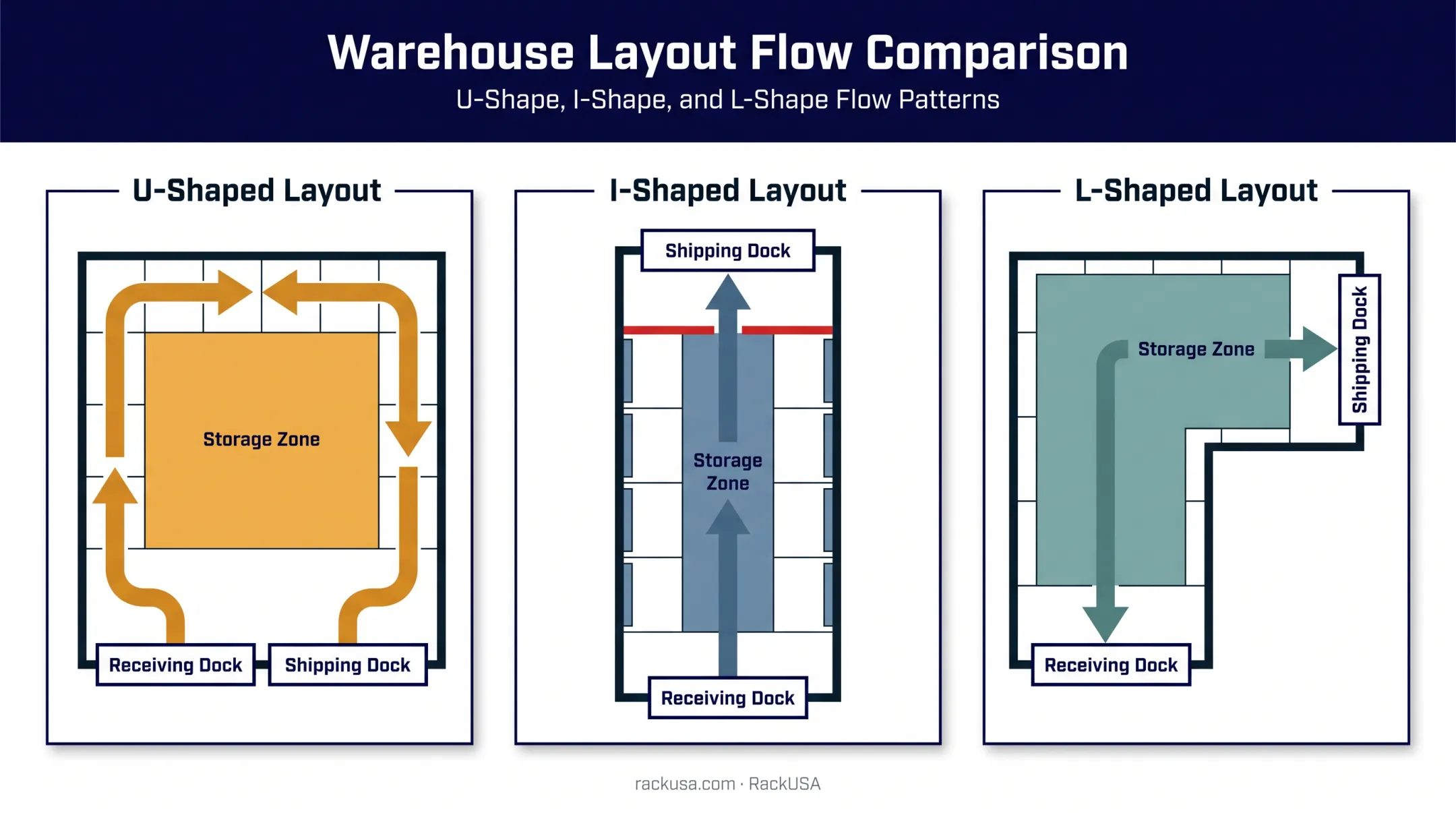

Common Warehouse Layout Types
Most warehouses follow one of three primary flow shapes. Matching that shape to your volume, dock access, and building footprint sets the baseline for travel distance, congestion, and picking speed.
- U-shaped: Receiving and shipping share one side, with storage at the back. Fits smaller facilities that need tighter order control, but docks can congest at peak hours.
- I-shaped: Goods move in a straight line from receiving on one end to shipping on the other. Best for high-volume, cross-docking operations where speed beats a compact footprint.
- L-shaped: Receiving and shipping sit on perpendicular sides. Works when corner docks, site limits, or specialized flow rule out U- or I-shaped designs.
Frequently Asked Questions
How can I optimize my warehouse space?
Use vertical storage, right-size your racking for actual inventory needs, slot high-velocity items near shipping, and conduct regular layout audits. Small adjustments compound into significant space and time savings.
What are the 5 KPIs for a warehouse?
Common KPIs include order-picking accuracy, pick rate, inventory turnover, space utilization, and on-time shipping. WERC's benchmarking framework also tracks dock-to-stock time and fill rate.
What is the most common warehouse layout type?
The U-shaped layout is widely used because it keeps receiving and shipping close together, simplifying dock management for smaller and mid-sized facilities.
How often should a warehouse layout be reviewed?
Review your layout after major shifts in SKU velocity, demand patterns, or storage equipment, and at minimum during annual growth planning. Seasonal spikes are also a good trigger point.
What's the difference between warehouse layout and warehouse design?
Design refers to the physical building itself: dimensions, structure, dock placement. Layout refers to how you organize storage, workflow zones, and traffic within that existing space.
Can small warehouses benefit from layout optimization?
Yes. Even a small facility gains from better slotting, vertical storage, and clearer zoning; the efficiency gains scale with the operation, not just facility size.
