Choosing the wrong racking type (or the wrong provider) limits your usable capacity, slows down picking, and quietly drives up costs for years. A rack that looked cheap on day one can become the most expensive mistake in your building.
This guide covers the top racking systems worth evaluating for 2026, how to choose between them, and what OSHA compliance and cost planning actually look like right now.
Key Takeaways
- Six racking types cover nearly every 2026 warehouse need: selective, drive-in, push-back, pallet flow, cantilever, and pallet shuttle
- Load type, SKU turnover, ceiling height, and automation appetite drive system choice
- Selective racking runs $75-$200 per pallet position; pallet flow can reach $550-$850
- OSHA doesn't dictate rack design but enforces aisle clearance, stability, and inspection rules
- Choosing a provider with engineering, certified materials, and installation cuts long-term risk
Overview of Warehouse Racking Systems in the Storage & Logistics Industry
A warehouse racking system is a structural framework that organizes palletized and non-palletized inventory across vertical space, turning empty cubic footage into usable storage and predictable material flow.
North America held 34.56% of the global industrial-racking market in 2025, according to Fortune Business Insights. The report values the global market at $12.95 billion and projects 5.6% annual growth through 2034.
That regional weight tracks three demand drivers:
- E-commerce fulfillment centers scaling across North America
- Nearshoring investment flowing into Mexico
- Denser distribution networks linking the US, Mexico, and Central America
The systems below are the ones best positioned to meet those 2026 demands, ranked primarily by storage density, with selectivity and automation readiness serving as tiebreakers.
Top Warehouse Racking Systems for 2026

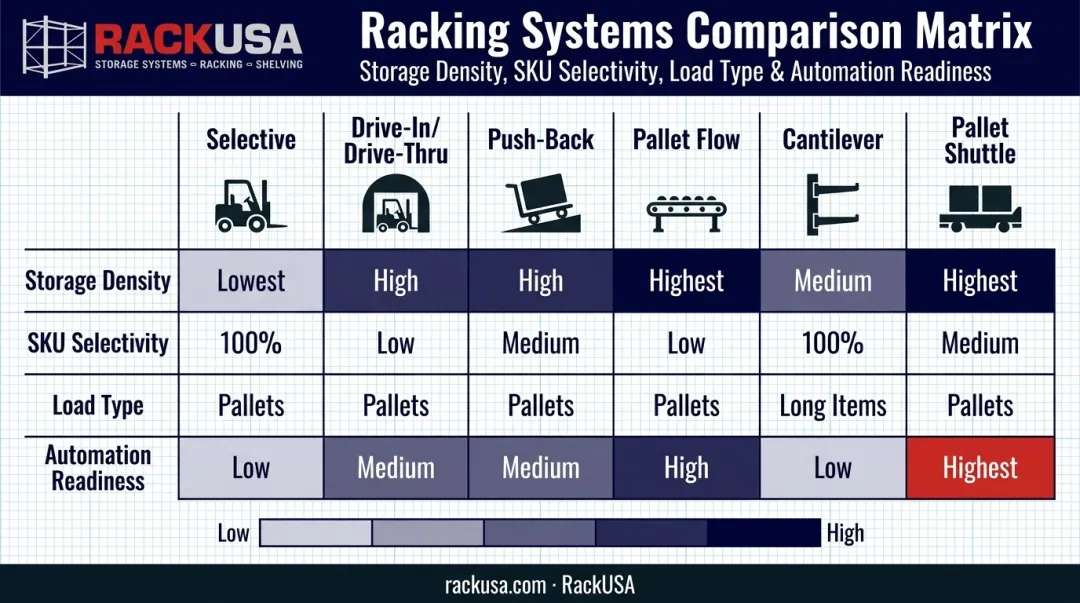

Each system below is evaluated on four criteria: storage density, SKU selectivity, load type compatibility, and how ready it is for automation upgrades.
Selective Pallet Racking
Selective racking uses single-deep, direct-access rows, letting a forklift reach every pallet position from the aisle. It remains the most widely used system across industries for a simple reason: nothing else gives you 100% SKU access with less complexity.
Why it wins for most warehouses:
- Lowest upfront investment of any system on this list
- Fastest installation timeline, often 5-7 on-site days for a 500-position project
- Full accessibility to every pallet, no digging through lanes
| Best For | Storage Density | Approx. Cost Range |
|---|---|---|
| General warehousing, high SKU count | Low-moderate | $75-$200 per pallet position |
RackUSA manufactures both roll-formed selective racks (cold-rolled steel, built for standard loads) and structural selective racks (heavier-gauge profiles for higher rigidity and longer service life), so the format scales from a small backroom to a full distribution center.
Drive-In / Drive-Thru Racking
Drive-in racking lets forklifts enter continuous lanes directly, stacking pallets deep with no operating aisles between them. Drive-thru configurations add a second access point, enabling FIFO instead of LIFO flow.
This is the format that maximizes floor space for bulk, uniform SKUs. You trade selectivity for density, and for slow-moving, homogeneous inventory, that trade usually pays off.
| Best For | Selectivity | Ideal Inventory Type |
|---|---|---|
| Bulk, low-turnover goods | Low | Uniform pallet sizes |
The tradeoff: forklifts physically operate inside the rack structure, which is why column protectors and pallet guides matter more here than on almost any other system.
Push-Back Racking
Push-back racking uses a cart-and-rail mechanism, storing 2 to 6 pallets deep per lane from a single aisle. The forklift pushes a pallet onto a cart, which rides inclined rails backward; gravity returns the next pallet forward when one is removed.
It sits in the middle ground between selective and drive-in. You get meaningfully better density than selective racking, without the forklift-to-rack contact that drive-in systems require.
| Best For | Depth Capacity | Load Method |
|---|---|---|
| Medium-turnover SKUs | 2-6 pallets deep | LIFO, front-loaded |
Pallet Flow (Gravity) Racking
Pallet flow racking uses inclined gravity roller lanes that move pallets automatically from the load side to the pick side. Loaders work from the back; pickers work from the front. Nobody has to chase inventory rotation manually.
This is the go-to format for food, beverage, and pharma operations, where regulations typically mandate FIFO rotation. Lane depth varies by manufacturer and product; some brochures specify as few as four pallets deep, while others support 12 or more per lane depending on load weight and rack height.
| Best For | Rotation Method | Lane Depth |
|---|---|---|
| Food/beverage, pharma | FIFO | Typically 4-12+ pallets deep, product-dependent |
Cantilever Racking
Cantilever racking replaces vertical columns in the load path with horizontal arms extending from a central upright. That open-arm design is built specifically for long, bulky, non-palletized loads: pipe, lumber, structural steel, sheet metal.
Why it's different from everything else on this list:
- No front columns to obstruct loading
- Arms adjust independently for varying load lengths
- Available in roll-formed configurations (lighter-duty, generally 500-2,000 lbs per arm) and structural configurations (heavier-duty, often 2,000-10,000+ lbs per arm)
| Best For | Load Type | Arm Configuration |
|---|---|---|
| Long/irregular loads | Self-supporting materials | Roll-formed vs. structural |
RackUSA builds cantilever systems from heavy-duty steel with horizontal and diagonal bracing, base anchors for tip prevention, and single- or double-sided configurations depending on aisle access needs.
Pallet Shuttle / Semi-Automated Racking
Pallet shuttle systems use radio-controlled or fully autonomous carts that move pallets within the lane, cutting forklift involvement down to the rack's entry point.
RackUSA's Matador APS is a real-world example running across the Americas market. It operates in 2D (single-lane) or 4D (multi-directional) configurations and integrates with existing WMS, WCS, or WES platforms without forcing a technology overhaul.
The efficiency gains aren't theoretical. Food Logistics reported that Merchandise Warehouse's cold-storage facility saw a 44% efficiency improvement and added over 14,000 pallet positions after switching to a shuttle-based deep-lane system, with product movement time dropping from seven man-hours to four.
That's one documented case, not a universal guarantee, but it shows what's achievable when density and automation combine.
| Best For | Automation Level | Storage Density |
|---|---|---|
| High-volume, multi-SKU operations | Semi-automated | High |
How to Choose the Best Racking System for Your Warehouse
Most buyers get this wrong in one of two ways: they chase the lowest sticker price, or they ignore ceiling height and future expansion until it's too late to fix cheaply. Here's how to evaluate properly.
- Match the system to your load. Pallet dimensions, weight, and product characteristics determine whether you under-engineer (safety risk) or over-engineer (wasted budget).
- Assess your footprint and ceiling height first. A 32-foot clear height opens options that a 20-foot warehouse simply can't support, especially for shuttle or drive-in formats.
- Verify safety certifications and seismic ratings. Providers with MHI R-Mark certification and engineering support (facility layouts, seismic analysis, PE-stamped drawings) reduce compliance risk before installation, not after an inspection flags a problem.
- Confirm the provider offers turnkey support. RackUSA, for example, provides design, installation, and maintenance across the US, Mexico, and Central America, one point of accountability instead of three separate vendors to coordinate.
- Weigh total cost of ownership. Upfront price matters, but maintenance programs, repair access, and how easily the system scales matter more over a 10-year horizon.
Skipping any one of these steps is how warehouses end up re-racking a building three years after the "budget-friendly" install.
Warehouse Racking Costs and OSHA Compliance in 2026
Racking costs vary by system type, material gauge, and region. Published 2026 benchmarks show a wide spread:
| System | Cost Per Pallet Position |
|---|---|
| Selective | $75-$200 |
| Drive-in/drive-through | $60-$110 |
| Push-back | $220-$400 |
| Pallet flow | $550-$850 |
These figures typically exclude installation, engineering, permitting, and freight, so treat them as equipment benchmarks, not full project quotes.
Compliance adds another layer to total cost, and OSHA's actual role here is narrower than most buyers assume. OSHA 1910.176 requires safe clearance where mechanical handling equipment operates, clearly marked and maintained aisles, and stable stacking that won't slide or collapse.
It doesn't hand you a fixed inspection calendar or a mandatory anchor spec. That level of detail comes from ANSI/RMI standards and adopted building codes, not OSHA directly.
Two things worth flagging for 2026 planning:

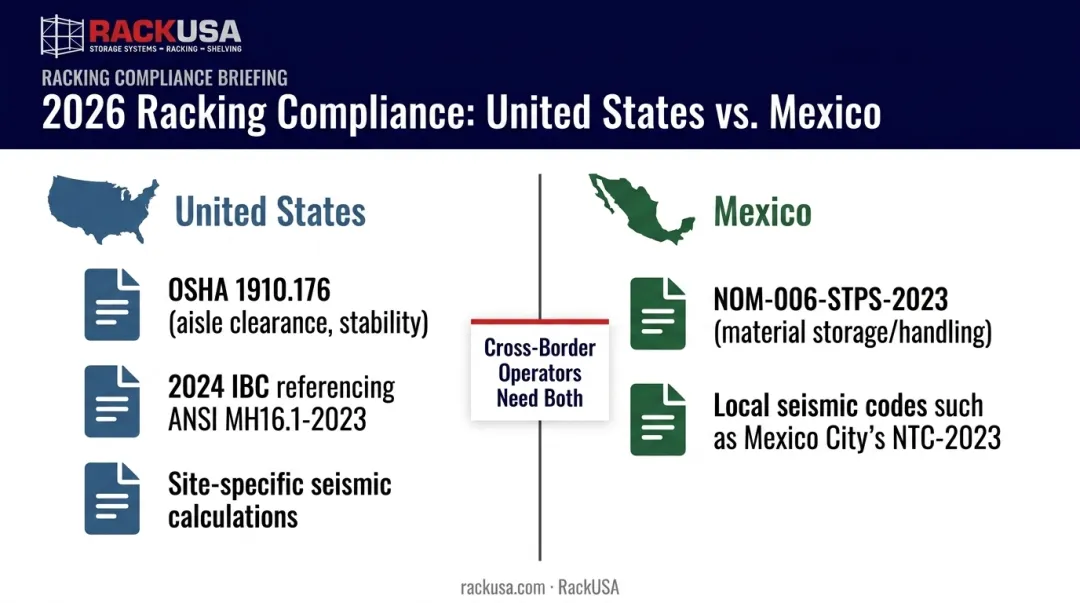

- Seismic zones: The 2024 IBC references ANSI MH16.1-2023, with calculations based on site-specific soil and design-category inputs rather than a flat percentage.
- Cross-border codes: Mexico's NOM-006-STPS-2023 covers material storage and handling, while seismic detail runs through local codes like Mexico City's NTC-2023. Cross-border operators need both.
Conclusion
Choosing the right racking system for 2026 comes down to more than brand recognition. The best fit aligns storage density, safety, and scalability with what your warehouse actually needs to do next year and five years from now.
Before finalizing a system or a vendor, evaluate ongoing performance, certifications, and total cost-effectiveness, not just the invoice total. If you want engineering-led, turnkey racking solutions built for facilities across the US, Mexico, and Central America, reach out to RackUSA to talk through your layout and load requirements.
Frequently Asked Questions
How much does it cost to rack a warehouse?
Costs depend heavily on system type: selective racking runs roughly $75-$200 per pallet position, while high-density pallet flow can reach $550-$850. Final pricing also depends on materials, engineering, and installation scope.
What are OSHA requirements for warehouse racking?
OSHA 1910.176 requires safe aisle clearance, well-marked aisles, and stable stacking that prevents sliding or collapse. It doesn't set a fixed inspection schedule, but damaged racking must be addressed immediately.
What is the most common type of racking system used in warehouses?
Selective pallet racking is the most common type because it's the lowest-cost option that still gives full access to every SKU, making it the default choice for most general warehousing operations.
How long does it take to install a warehouse racking system?
A 500-position selective racking project typically takes about 5-7 on-site days, while 1,000+ position projects often run 2-4 weeks. Engineering and permitting can add another 4-12 weeks before installation even starts.
Can existing racking systems be reconfigured or expanded?
Yes, modular systems like selective and cantilever racking are designed to be reconfigured as inventory or space needs shift. Confirming reconfiguration options with your provider before purchase avoids surprises later.
How often should warehouse racking be inspected for safety?
There's no single frequency that fits every warehouse; inspection intervals depend on traffic volume, equipment type, and damage history. Any impact or load change should trigger an immediate evaluation regardless of your regular schedule.
