Choosing the wrong rack system doesn't just waste floor space. It damages inventory, slows down picking, and puts workers at risk when a load shifts unexpectedly. The good news: there's a proven rack style for nearly every budget, volume, and handling need.
This guide breaks down the top pipe and bar storage rack ideas, how to pick the right one for your facility, and the safety practices that keep long-load storage under control.
Key Takeaways
- Cantilever racks offer the best balance of cost, accessibility, and durability for most facilities.
- The best rack choice matches space, budget, accessibility needs, and safety requirements — not just price.
- Custom-engineered systems and built-in safety accessories cut long-term risk and boost storage density.
- The right rack system speeds up picking and keeps warehouse layouts organized.
Why Pipe & Bar Storage Needs Specialized Solutions
Round, long, and unevenly weighted materials behave nothing like palletized goods. A pipe or bar has no flat base, no stable footprint, and a strong tendency to roll or slide the moment it's nudged. Standard shelving and floor stacking simply weren't built to contain that kind of movement.
The consequences show up in OSHA's accident records. In one documented case, a 3,900-pound, 24-inch pipe jumped a wooden chock and fatally crushed a worker, showing that improvised restraints like wood blocks are no substitute for engineered containment (OSHA accident report).
OSHA's general industry standards are direct about this: pipe, bar stock, poles, and other cylindrical materials must be racked or stacked and blocked against spreading or tilting. This is a mandatory compliance requirement under federal law.

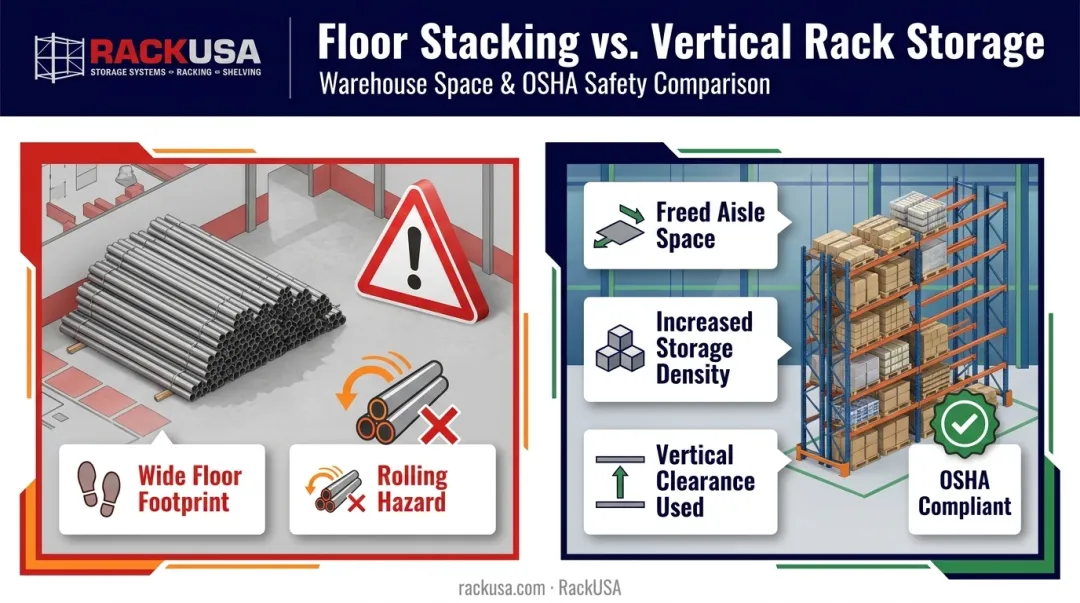

Beyond safety, specialized racks solve a space problem. Instead of consuming floor area with sprawling bundles, they:
- Use vertical clearance most facilities already have overhead
- Free up aisle space for forklifts and foot traffic
- Increase total storage density without expanding the building footprint
For facilities handling long or cylindrical stock regularly, specialized racking eliminates the rolling hazards documented in OSHA's accident records while maximizing usable storage capacity. RackUSA's cantilever racks are engineered specifically for this type of load, offering a safer, code-compliant alternative to floor stacking.
Top Pipe & Bar Storage Rack Ideas

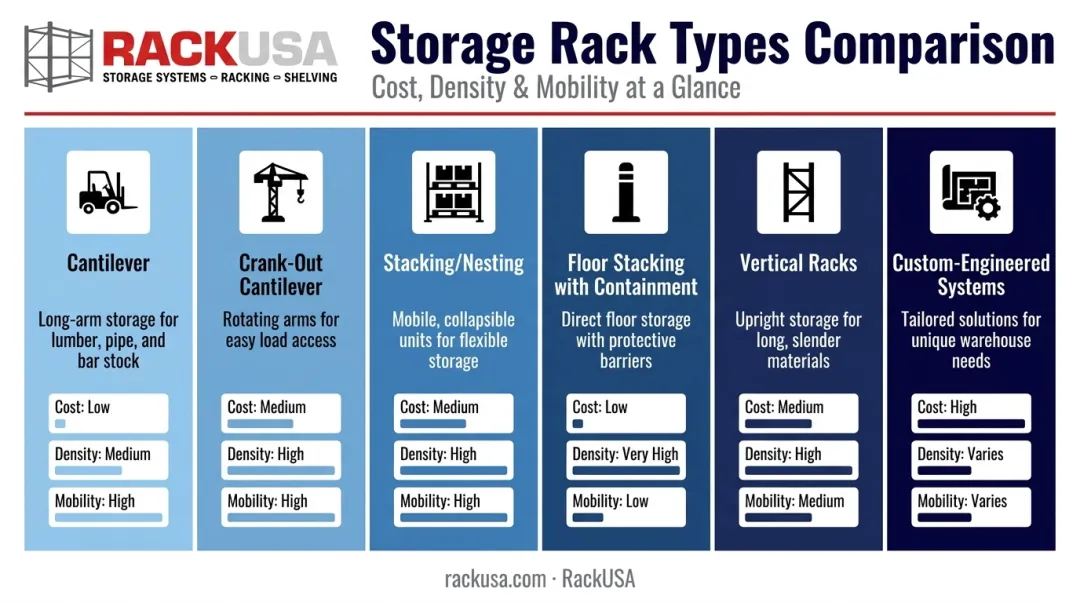

Facilities have several proven rack styles to choose from, each suited to different budgets, storage volumes, and how often material needs to move. Here's how the main options stack up.
Cantilever Racks
Cantilever racks use arms that extend horizontally from a vertical column, with no front-facing obstruction. That open-front design lets forklifts load and unload long stock from either side without threading it through a frame.
This is typically the most cost-effective and durable option on the market. Cantilever systems work indoors or outdoors, and levels can be built upward to add capacity without expanding the footprint.
The current design standard is ANSI MH16.3-2025, which governs load combinations, seismic considerations, and testing for cantilever systems (RMI). RackUSA's cantilever line falls under this design category, and its engineering team works with facilities to configure arm length, spacing, and column strength around the specific pipe or bar diameters being stored.
Crank-Out Cantilever Racks
Crank-out (retractable) cantilever racks let operators retract loaded arms into the rack structure, then extend them again for retrieval. That mechanism creates high-density storage that sits comfortably beside a saw, laser, or fabrication workcell.
These racks make sense when:
- Selective retrieval speed matters more than upfront cost
- Overhead crane access is available for loading
- Point-of-use storage next to production equipment reduces machine downtime
They cost more than fixed-arm cantilever systems, but for fabrication shops pulling stock constantly, the time saved often justifies it.
Stacking/Nesting Racks
Stacking and nesting racks aren't bolted to the floor, which makes them the most portable option on this list. Facilities with inventory layouts that change often (seasonal stock, project-based storage, or shared warehouse space) benefit most from this flexibility.
Typical characteristics include:
- Load capacities that generally range from 2,000 to 4,000+ pounds per unit, depending on manufacturer and configuration
- Stackability up to five or six units high without load-on-load contact
- Collapsible frames for return shipping or empty storage
They won't match cantilever racks for density or long-term durability, but for mobile or temporary storage needs, nothing beats the flexibility.
Floor or Ground Stacking with Containment
This is the lowest-cost option, and it works, but only with proper containment. Bollards, pillars, cradles, or banding prevent bundles from rolling or spreading — a requirement OSHA spells out directly for cylindrical materials stacked without racking.
Floor stacking with containment fits best for:
- Slow-moving bundles near processing equipment
- Short-term storage before fabrication
- Facilities without the ceiling height or budget for vertical racking yet
It's rarely the right long-term answer for high-volume operations, since it consumes the most floor space of any option here.
Vertical Pipe & Conduit Storage Racks
Storing pipe vertically, whether in bayed, angled, or fully upright racks, dramatically shrinks the footprint compared to horizontal storage. One manufacturer reports over 40% less storage footprint than horizontal racking systems, along with reduced bending, warping, and scratching that long horizontal spans tend to cause (Sheet Storage).
Vertical racks work especially well in:
- Tighter shops with limited floor space but adequate ceiling clearance
- Facilities storing shorter lengths of pipe or conduit
- Operations where sag-related product damage has been a recurring issue
Before committing, check stock length against clear height, sprinkler clearance, and whether the rack includes positive front retention (chains or bars) to keep loads from tipping forward.
Custom-Engineered & Rack-Supported Storage Systems
Some facilities have load requirements, seismic exposure, or space constraints that off-the-shelf racks can't accommodate. That's where custom engineering comes in.
RackUSA designs and installs tailored cantilever and rack-supported systems for pipe and bar storage, bundling engineering and installation directly into the project rather than selling them as standalone services. For facilities in seismic zones or with unusual load profiles, that PE-level design support (as required by registered design professionals under current rack-engineering standards) is typically required for code compliance.
How to Choose the Right Storage Rack for Your Facility

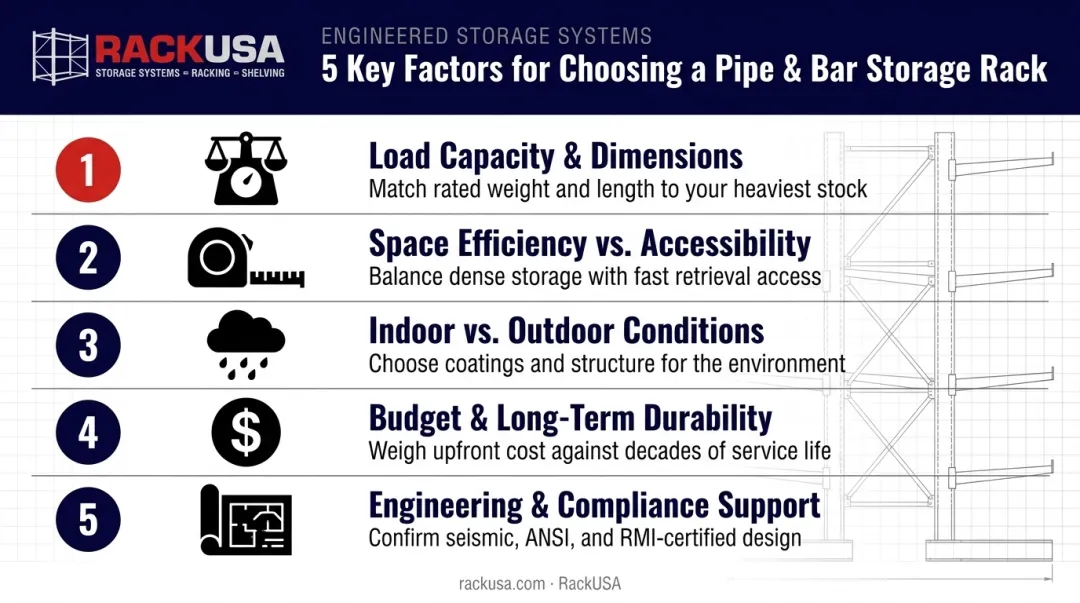

With six rack styles on the table, narrowing down the right one comes down to five factors.
- Load capacity and dimensions: Match arm length, arm spacing, and weight rating to your actual pipe or bar diameters and lengths. Capacity depends on arm configuration, column strength, and how loads are distributed across the rack, not a single industry number (RMI R-Mark certification standards).
- Space efficiency vs. accessibility: Denser vertical storage often means narrower aisles and slower retrieval. Weigh how often each SKU gets pulled against how tightly you can pack the rack.
- Indoor vs. outdoor conditions: Yard storage needs weather-resistant coatings or corrosion protection. Galvanized finishes typically outperform powder coating for long-term outdoor corrosion resistance, though powder coating still holds up in lower-exposure indoor settings.
- Budget and long-term durability: Floor stacking costs less upfront, but cantilever systems typically last longer and reduce handling damage over time. Run the comparison over a 5-10 year window, not just initial spend.
- Engineering and compliance support: Facility layout, structural load calculations, and code compliance require expert input, not guesswork. RackUSA bundles engineering and installation support with product purchases, helping facilities size arm spacing, column strength, and anchorage correctly for their specific load and site conditions.
Best Practices for Safely Storing Pipes and Bars
Picking the right rack is half the equation. How you load, maintain, and monitor it matters just as much.
- Separate and contain by diameter and length. Use dividers or precise arm spacing so smaller items can't roll, shift, or get crushed under heavier stock.
- Inspect racks regularly. Look for bent arms, corrosion, and signs of overloading before they become failures. The Rack Manufacturers Institute (RMI) recommends annual inspection at minimum, with more frequent checks in high-traffic or high-damage-risk areas.
- Train staff on proper handling. Forklift operators need clear instruction on loading and unloading techniques, and every rack bay should have posted weight limits that operators actually check before loading.
None of this is complicated, but skipping any one of these steps is exactly how rolling-load incidents happen.
Frequently Asked Questions
How should pipes be stored?
Pipes should sit on racks (cantilever, stacking, or vertical) that support their full length and weight while containing them against rolling. Keep them off bare ground and protected from moisture where possible.
What are the different types of pipe holders?
The main types are cantilever arms, crank-out cantilever racks, stacking/nesting racks, vertical bay racks, and floor-stacking with bollards or containment. Each fits a different combination of budget, volume, and access needs.
What is the best rack for storing pipes in a warehouse?
Cantilever racks are generally the best all-around choice, balancing cost and storage density while keeping loads easy to access. Custom-engineered options are available for unusual load, space, or seismic requirements.
How much weight can a pipe storage rack hold?
Capacity varies widely by design, from a few thousand pounds on stacking racks to much higher on engineered cantilever systems. It depends on arm spacing, column strength, base plate anchoring, and the rack's specific certification.
What is a cantilever rack used for?
Cantilever racks store long, bulky, or irregularly shaped items like pipe, lumber, bar stock, and structural steel that don't fit standard pallet racking. The open-arm design allows easy forklift access from either side.
How do you store pipes to prevent rusting or corrosion?
Keep pipe elevated off the ground and store indoors when possible, adding weather-resistant coatings for any outdoor racks. Regular inspection for moisture buildup catches corrosion before it spreads.
