Structural Cantilever Racking Built to Last

Cantilever rack capacity depends on the structural design, including column size, arm length, arm spacing, bracing, anchorage, load distribution, and the material being stored. Capacity must be evaluated at both the individual arm and total column levels. RackUSA can provide structural load analysis and engineering support to help specify a configuration suited to your product weights and handling method.

Cantilever racking cost is driven by the required load capacity, rack height, arm length, number of storage levels, bay count, finish, seismic requirements, site conditions, and installation scope. A system for light bundled materials differs substantially from one designed for heavy steel or lumber. A detailed layout and material profile allow RackUSA to develop a project-specific estimate that reflects your facility requirements.

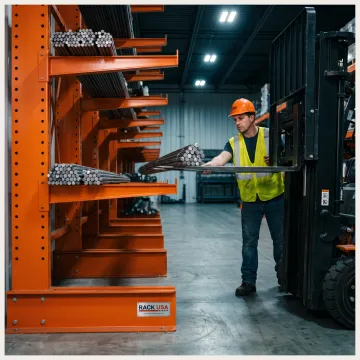

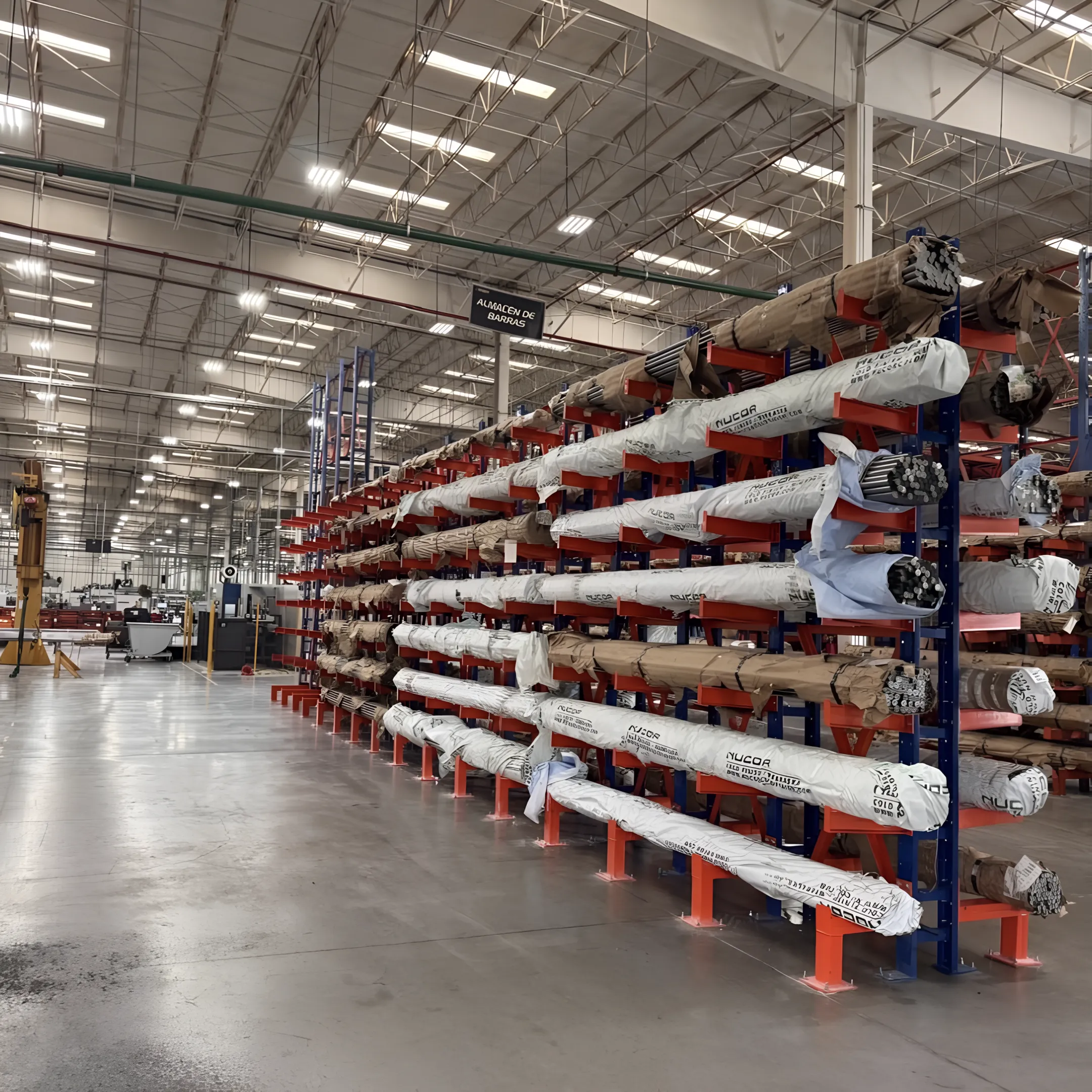

Cantilever racks are well suited to long, bulky, or irregular items that are difficult to store on conventional pallet racks. Common examples include lumber, pipe, tubing, steel bars, sheet goods, furniture, carpet rolls, and fabricated components. The open-front design gives forklifts clear access to each level, helping crews load and retrieve materials without navigating front uprights.

Yes. Cantilever systems can be configured with different column heights, arm lengths, arm capacities, levels, bay widths, and single- or double-sided arrangements. Planning also considers aisle width, forklift reach, product length, load stability, floor conditions, and future inventory changes. RackUSA designs layouts around facility dimensions and material-handling workflows rather than relying on a one-size-fits-all configuration.

Engineering is especially important when racks will carry heavy loads, operate in seismic areas, reach significant heights, or require permits and stamped drawings. Structural load analysis helps verify that rack components, anchorage, and the supporting concrete are appropriate for the intended application. RackUSA offers engineering services that include seismic analysis, concrete testing, PE-stamped drawings, fire safety reporting, and permitting assistance.

Safe installation begins with an approved layout, verified floor conditions, and correct component placement. Columns must be level, properly braced, and securely anchored, while arms need to be installed at the specified elevations and capacities. After installation, clear load-capacity signage, trained forklift operators, and routine inspections help maintain safe use. RackUSA provides turnkey installation and ongoing safety-focused support.

In many cases, existing cantilever racking can be inspected, repaired, reconfigured, or relocated when its condition and design support the change. Damaged columns, arms, braces, anchors, and welds should be evaluated before reuse. Relocation also requires a new site layout and confirmation of floor and load requirements. RackUSA offers maintenance programs, rack repair, relocation, teardown, and storage-system support.

Project timing depends on design complexity, engineering requirements, manufacturing schedules, site readiness, material availability, and installation scope. Early planning is helpful when permits, seismic analysis, custom components, or phased installation are required. The process typically starts with material and facility information, followed by layout development and engineering as needed. RackUSA coordinates design, manufacturing, installation, and implementation planning.
