Engineered Pallet Roller Tracks for Efficient Flow

Pallet roller tracks are gravity-based conveying components installed within pallet-flow racking lanes. They allow palletized loads to travel from the loading end to the picking end using a controlled incline, rollers, and speed-control components. They are commonly used to support high-density FIFO storage, reduce forklift travel, and keep replenishment separate from picking activities.

In a FIFO configuration, new pallets are loaded at the higher end of a lane and move by gravity toward the lower picking face. The first pallet loaded becomes the first one retrieved. This arrangement is useful for dated, perishable, or rotation-sensitive inventory because it promotes orderly stock movement without requiring forklift access to every stored pallet.

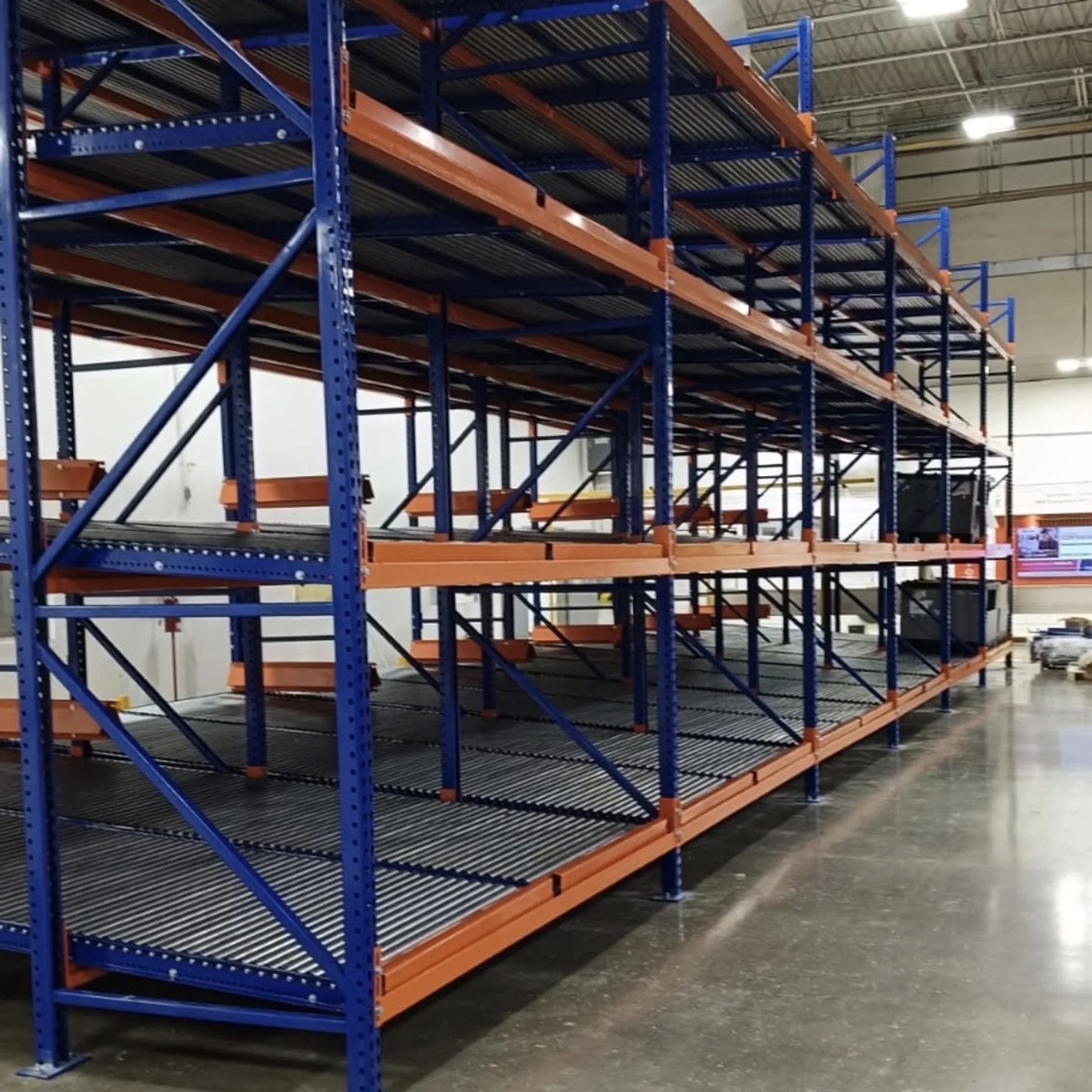

Pallet-flow racking typically uses roller tracks and gravity to support FIFO operation, with loading and picking performed from opposite ends. Push-back racking stores pallets on nested carts and generally supports LIFO operation from one aisle. The right choice depends on required inventory rotation, available aisle access, SKU mix, pallet characteristics, and desired storage density.

Suitable pallets must have a stable, consistent base that can travel safely on the selected roller configuration. Pallet dimensions, weight, bottom-board layout, load stability, and product overhang all affect design. RackUSA reviews load data and handling practices to help determine whether pallet flow, push-back, shuttle, or another storage approach is appropriate.

Pallet-flow lanes use engineered grade, roller spacing, and speed controllers to maintain controlled movement. Separators at the picking face create safe spacing between loads and allow one pallet to be retrieved at a time. Proper design accounts for pallet weight range, lane depth, temperature conditions, and the characteristics of the pallet base.

In many cases, an existing facility can be evaluated for a pallet-flow conversion or an added dynamic storage area. The review should consider rack condition, structural capacity, clearances, floor conditions, sprinkler requirements, pallet loads, and forklift access. RackUSA can support layout planning, engineering analysis, installation, and safety-focused implementation for qualified projects.

A productive design starts with pallet dimensions and weights, SKU count, required storage positions, inventory rotation method, daily throughput, forklift type, available footprint, and building constraints. Information about load overhang, pallet quality, and operating temperatures is also important. These details help determine lane depth, roller selection, grade, rack configuration, and required safety features.

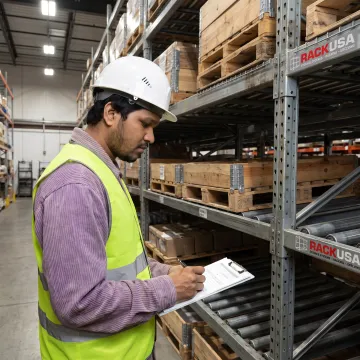

Routine maintenance includes inspecting rollers, frames, speed controllers, separators, anchors, and rack components for damage, wear, debris, or misalignment. Operators should also report pallet failures and forklift impacts promptly. Scheduled rack safety audits, repairs, and employee training help preserve safe flow performance and identify conditions that could affect load travel or structural integrity.
