Dynamic Rack Systems for Efficient Warehouses

Dynamic rack is a high-density storage system designed to move or position loads within the rack structure, often using gravity, carts, or powered shuttles. Common configurations include pallet-flow, carton-flow, push-back, and shuttle systems. The right option depends on pallet type, product rotation method, picking volume, available space, and required access to individual loads.

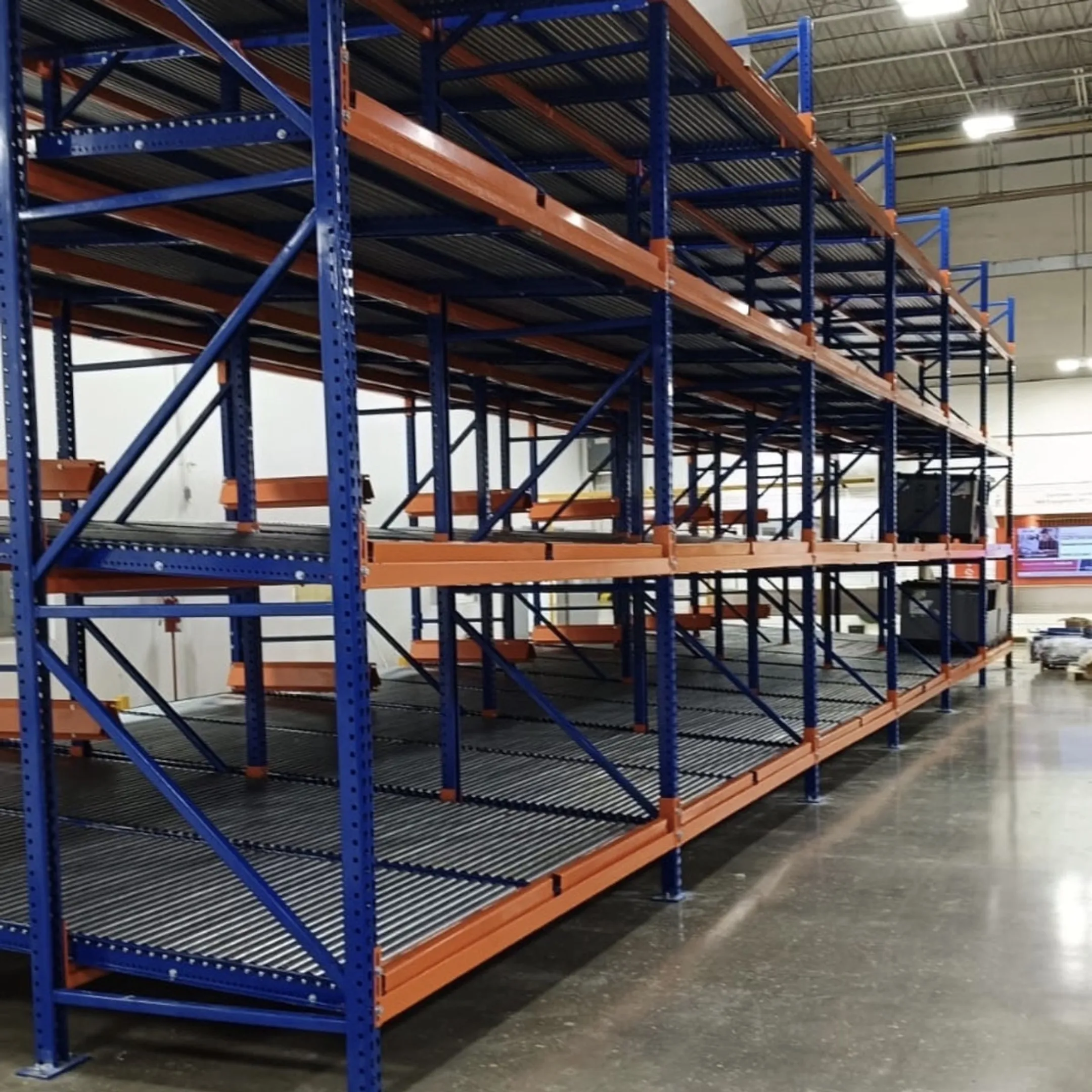

Pallet-flow racking uses gravity rollers or wheels to move pallets from the loading side to the picking side, making it well suited to FIFO inventory rotation. Push-back racking stores pallets on nested carts that move backward as loads are added and forward as loads are removed. It typically supports LIFO rotation from one working aisle.

Drive-in and drive-through racking are useful when a facility stores large quantities of similar palletized products and needs to maximize cubic space. Forklifts enter storage lanes to place or retrieve pallets. Drive-in systems generally operate on a LIFO basis from one side, while drive-through systems can support FIFO handling when loading and retrieval occur from opposite sides.

Yes. Dynamic Rack should be engineered around your actual operating conditions, including pallet dimensions, load weight, forklift type, SKU mix, throughput, floor layout, ceiling clearance, and inventory rotation requirements. RackUSA provides engineering services such as layouts, structural load analysis, seismic analysis, concrete testing, PE-stamped drawings, and permitting assistance where required.

The space improvement depends on the existing layout, aisle requirements, pallet depth, SKU profile, and chosen system. Dynamic storage can reduce the number of required working aisles compared with selective racking and create deeper storage lanes. A facility assessment and layout analysis identifies the realistic capacity gain while preserving appropriate access, safety clearances, and material flow.

Dynamic systems can support either FIFO or LIFO inventory practices. Pallet-flow and carton-flow systems are commonly selected for FIFO because goods load from one side and pick from the other. Push-back and many drive-in applications are generally LIFO. RackUSA reviews product shelf life, lot control, replenishment patterns, and picking requirements before recommending a configuration.

RackUSA provides turnkey support that can include design, engineering, installation, and implementation of industrial racking systems. Ongoing services include safety audits, rack repair, relocation, teardown, and OSHA compliance education. This approach helps facilities address both initial installation requirements and the operational maintenance needed to keep storage equipment in dependable working condition.

Begin by sharing facility dimensions, pallet and load details, current storage challenges, inventory rotation needs, and throughput goals. RackUSA can evaluate the available space and develop an engineered storage approach matched to your operation and budget. Early planning should also account for forklift travel, fire protection, structural conditions, safety accessories, and future expansion needs.
